The Ultimate Guide to Rotation Resistant Wire Rope

The Ultimate Guide to Rotation-Resistant Wire Rope

When it comes to lifting applications that demand stability, precision, and safety, rotation-resistant wire rope is indispensable. These specialized ropes are engineered to minimize the tendency to spin or rotate under load, ensuring better control and reliability in various operations.

In this comprehensive guide, we'll delve into the specifics of rotation-resistant wire ropes, including their classifications, advantages, applications, and best practices for handling.

What is Rotation-Resistant Wire Rope?

Rotation-resistant wire rope is designed to counteract the natural inclination of wire ropes to spin or unlay when subjected to tension. This characteristic is crucial in scenarios where uncontrolled rotation could compromise safety or precision, such as in cranes, hoists, and high-rise construction projects.

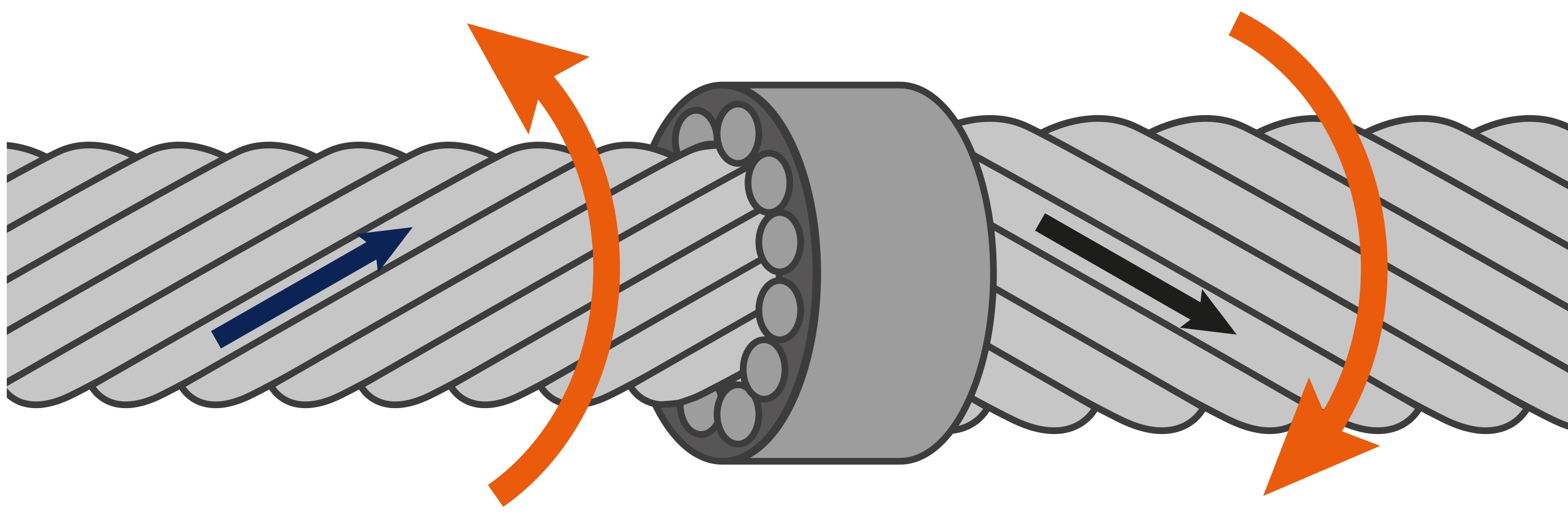

Unlike standard wire ropes, rotation-resistant variants are constructed with specialized strand arrangements that create opposing torsional forces, effectively minimizing rotation.

In rotation-resistant wire ropes, the outer strand layer is opposite to the inner strand layer and in addition there is a steel core that functions as a separate rope.

Types of Rotation Resistant Wire Rope

Rotation-resistant wire ropes are generally categorized into two main types:

1. Single-Layer Rotation Resistant Wire Rope

• Composition: Typically consists of three or four outer strands without a core member.
• Rotational Resistance: Provides a basic level of resistance to rotation, suitable for applications where minimal spinning control is required.

2. Multi-Layer Strand (Multistrand) Rotation Resistant Wire Rope

• Composition: Features two or more layers of strands, with each layer closed in the opposite direction to the adjacent one.
• Rotational Resistance: Offers superior stability and control, making it ideal for high-stakes lifting applications.

Why Use Rotation Resistant Wire Rope?

The application of rotation-resistant wire rope is essential in various industrial sectors, including:

• Tower Cranes: Prevents load spinning during lifting operations at significant heights.
• Mobile and Overhead Cranes: Enhances load stability and minimizes twisting under tension.
• Hoists and Winches: Ensures controlled movement, reducing the risk of load shifting.
• Elevator and Lifting Systems: Provides smooth operation and prevents entanglement.
• Offshore and Marine Applications: Crucial for lifting operations where stability is paramount.

How to Identify Rotation Resistant Wire Rope

Identifying rotation resistant wire rope involves:

1. Counting the Strand Layers:

   • A two-layer rope has lower rotational resistance than a three-layer rope.
   • More layers equate to greater resistance to spinning.

2. Checking Manufacturer Labels and Certifications:

   • Industry-standard rotation resistant ropes come with specified torque ratings.

3. Performing a Spin Test:

   • Observing rope behavior under tension can indicate its rotational resistance.

Key Benefits of Rotation Resistant Wire Rope

• Minimized Load Spinning: Ensures precision and safety during lifting.
• Enhanced Stability: Critical for high-rise and offshore applications.
• Reduced Wear and Tear: Prolongs the lifespan of equipment and attachments.
• Higher Safety Standards: Reduces risks associated with uncontrolled rotation.

Challenges of Rotation Resistant Wire Rope

While beneficial, rotation resistant wire ropes come with certain challenges:

• Proper Handling is Essential: Incorrect spooling and installation can reduce effectiveness.
• Higher Initial Cost: Generally more expensive than standard wire ropes, but the investment is offset by increased longevity and performance.
• Requires Regular Inspection: Due to higher strand complexity, regular maintenance is crucial to ensure safety and functionality.
