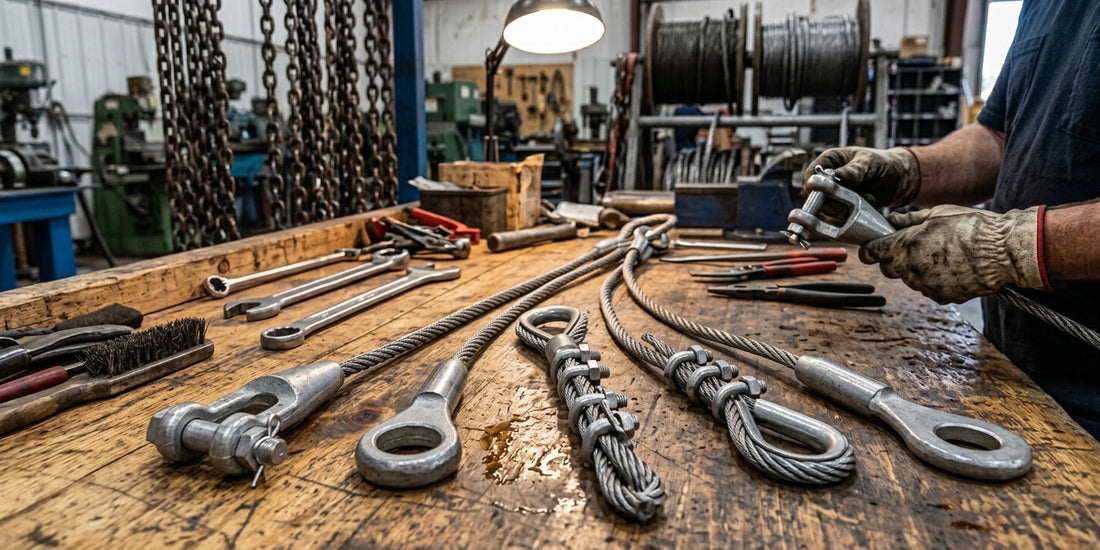

Choosing the Right Wire Rope End Termination: A Comprehensive Guide for Industrial Lifting

When designing, selecting, or inspecting wire rope assemblies for heavy lifting, rigging, marine, or construction applications, the end termination is every bit as critical as the rope itself. A wire rope is only as strong as its weakest connection point. End terminations—the fittings, splices, or sockets applied to the rope's ends—determine not only the assembly's nominal efficiency but also its resistance to dynamic fatigue, shock loads, thermal extremes, and environmental wear.

Understanding how each termination type performs under specific load conditions is essential for maintaining jobsite safety, staying compliant with ASME B30.26 (Rigging Hardware), ASME B30.9 (Slings), and OSHA 1926.1413 standards, and maximizing operational service life.

Termination Efficiency & Load Dynamics: Core Principles

Every wire rope termination possesses an efficiency rating, expressed as a percentage of the wire rope's nominal Minimum Breaking Force (MBF). For example, a poured resin socket achieves a 100% efficiency rating (meaning the assembly retains 100% of the rope's rated breaking strength), whereas mechanical wire rope clips typically offer an 80% efficiency rating when installed strictly to torque specifications.

When matching end terminations to dynamic and static loads, three core factors govern selection:

1. Efficiency Rating (% of Rope Breaking Strength): How much of the rope's catalog strength is preserved after applying the fitting?

2. Fatigue & Dynamic Shock Resistance: How does the junction point hold up against cyclic loading, high-frequency vibration, and impact loads?

3. Field Application vs. Shop Fabrication: Can the fitting be installed on-site during field operations, or does it require hydraulic pressing or resin pouring in a controlled shop environment?

Comparison Matrix: Wire Rope End Terminations

Below is an engineering overview comparing the primary wire rope end terminations illustrated in the Atlantic wire rope reference guide:

Detailed Analysis of Common End Terminations

1. Poured Sockets (Spelter & Resin Sockets)

• Efficiency: 100% of Catalog Rope Breaking Force.

• Graphic Classifications: Open socket, socketed, Closed socket.

• Mechanism: The end of the wire rope is unlaid ("broomed out"), cleaned, inserted into a forged steel socket basket, and potted with a liquid thermosetting resin compound (e.g., WIRELOCK®) or molten zinc spelter.

• Load Suitability:

  • Best For: High-tonnage static or dynamic tension loads, lattice boom crane pendant cables, offshore mooring lines, suspension bridge stay cables, and mine hoists.

  • Load Performance: Provides the maximum possible strength (100% efficiency). Offers superior resistance to extreme tensile forces and dynamic fatigue when poured in strict accordance with ISO 17558.

2. Flemish Eye Mechanical Splices (With Swaged Sleeves)

• Efficiency: 90% to 95%+ (depending on rope diameter and construction).

• Graphic Classifications: Flemish eye splice, Aluminum swaged eye, Aluminum swaged thimble, Aluminum swaged solid thimble, Aluminum swaged open/closed socket.

• Mechanism: The wire rope strands are split into two halves, looped in opposite directions, and re-woven into a mechanical eye (Flemish loop). A seamless metal sleeve (steel or aluminum) is cold-swaged over the unlayed tail ends under heavy hydraulic pressure.

• Load Suitability:

  • Best For: Heavy-duty overhead crane slings, construction lifting assemblies, choker slings, and general rigging.

  • Load Performance: Widely considered the standard for industrial lifting slings. The Flemish eye loop provides an inherent safety reserve: even if the swaged sleeve were partially compromised, the mechanical weave retains approximately 75% of the rope's breaking strength under initial loading.

3. Swaged Fittings & Cold-Formed Sockets

• Efficiency: 90% to 100% (dependent on wire rope construction and die sizing).

• Graphic Classifications: Swaged round sleeve, Swaged open socket, Swaged closed socket, Swaged threaded stud, Swaged threaded sleeve.

• Mechanism: A steel or alloy fitting is placed over the end of the wire rope and cold-pressed in a hydraulic swaging machine, forcing the metal fitting to flow into the outer voids of the rope strands.

• Load Suitability:

  • Best For: Structural tie-rods, architectural rigging, guy wire anchors, winch drum connections, and control cables.

  • Load Performance: Delivers a compact, low-profile connection with high static strength efficiency. However, rigid swaged shanks create a sharp change in stiffness, making them susceptible to bending fatigue if subjected to repeated flexing or reverse bending directly at the sleeve neck.

4. Wedge Sockets

• Efficiency: 80% Nominal Efficiency.

• Graphic Classifications: Wedge type socket.

• Mechanism: The wire rope is looped around a tapered cast steel wedge placed inside a tapered socket body. Tension on the live line pulls the wedge tighter into the socket taper, clamping the rope securely.

• Load Suitability:

  • Best For: Mobile crane main and auxiliary hoist line terminations, pile drivers, and draglines where field installation or frequent line cropping is necessary.

  • Load Performance: Designed specifically for rapid field installation and quick inspection. It absorbs shock loads and vibration well in crane hoist applications. Per ASME B30.26, a dead-end tail clipping device or tail-retention wire must be installed to prevent the wedge from dislodging when the load is released.

5. Wire Rope Grips (Crosby-Style Clips)

• Efficiency: 80% (when using drop-forged U-bolt or twin-saddle clips torque-checked to manufacturer specs).

• Graphic Classifications: Wire rope grip.

• Mechanism: U-bolts or dual-saddle clamps compress the live line and dead line against one another over a protective steel thimble.

• Load Suitability:

  • Best For: Temporary field rigging, static guy wire anchors, winch tail terminations, perimeter safety lines, and emergency field repairs.

  • Load Performance: Not permitted for overhead crane hoist lines or critical overhead lifting slings under ASME B30.9 and OSHA standards. Proper orientation is mandatory: "Never saddle a dead horse"—the U-bolt must always press against the dead tail end, with the saddle seated against the live load line.

6. Hand Spliced & Tuck Eyes

• Efficiency: 70% to 90% (efficiency decreases as rope diameter increases).

• Graphic Classifications: Hand spliced eye, Spliced thimble.

• Mechanism: Strands are manually unlaid and tucked back into the body of the rope using a standard multi-tuck weave without metal sleeves or swaging.

• Load Suitability:

  • Best For: Marine towing lines, traditional rigging, logging chokers, and non-marring utility slings.

  • Load Performance: Provides a flexible termination free from bulky metal sleeves that could snag on obstruction points. However, hand splices can unlay or slip under severe rotation or shock unloading, and are prohibited on rotation-resistant wire ropes.

1. Maximum Static Tension (100% Rated Load): Choose Poured Resin / Spelter Sockets.

2. Overhead Crane Lifting Slings: Choose Flemish Eye Mechanical Splices with heavy-duty thimbles for dual-stage security.

3. Mobile Crane Hoist End Line: Choose Wedge Sockets for fast line replacement and field adjustability.

4. Permanent Guy Lines / Architectural Cables: Choose Swaged Sockets or Threaded Studs.

Safety, Inspection & Maintenance Essentials

• Always Protect the Eye with a Thimble: Unprotected "soft eyes" suffer severe wire crushing and strand deformation when attached directly to shackles, hooks, or pins. Heavy-duty steel thimbles distribute the load radius and protect inner wires from premature fatigue.

• Monitor the Stress Concentration Zone: The point where the wire rope enters the fitting neck (socket basket, swage tail, or wedge throat) is subject to high localized fatigue. Inspect this zone regularly for broken outer wires, necking, or corrosion.

• Adhere to ASME & OSHA Proof Testing: All newly fabricated lifting slings and re-terminated crane lines must be proof-tested and tagged according to ASME B30.9 and ASME B30.26 requirements prior to active service.

References & Industry Standards

1. Wire Rope Technical Board (WRTB) – Wire Rope Users Manual, 4th Edition.

2. ISO 17558:2006 – Steel wire ropes — Socketing procedures — Molten metal and resin socketing.

3. ASME B30.26-2015 – Rigging Hardware: Sockets, Wire Rope Clips, and Swage Fittings. American Society of Mechanical Engineers.

4. ASME B30.9-2021 – Slings: Wire Rope Slings and Components. American Society of Mechanical Engineers.

5. OSHA Safety Standard 1926.1413 – Wire Rope Inspection and Replacement Criteria for Cranes & Derricks in Construction. Occupational Safety and Health Administration.

6. The Crosby Group – General Catalog & Technical Engineering Guidelines: Wire Rope Clips and Termination Efficiency.

7. Health and Safety Executive (HSE) – Inspection and Safe Use of Wire Rope End Terminations in Lifting Operations.
