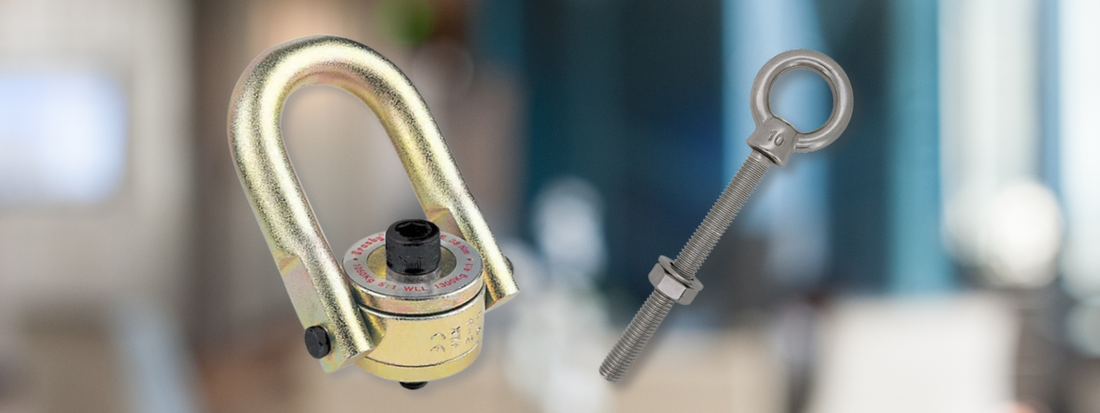

Eye Bolts vs. Swivel Hoist Rings: Choosing the Right Lifting Point for the Job

In rigging and lifting, the choice between an eye bolt and a swivel hoist ring can make a major difference in safety, performance, and versatility. Both are essential connection points used to attach lifting slings, hooks, or hardware to a load—but they function differently and serve different purposes.

At Hercules Crane & Lifting Supplies, we understand that selecting the correct lifting hardware is critical to keeping workers safe and equipment protected. In this blog, we’ll break down the key differences, advantages, disadvantages, and best practices of eye bolts and swivel hoist rings so you can make the best choice for your next lift.

What Is an Eye Bolt?

An eye bolt is one of the most traditional lifting points used in rigging. It features a threaded shank with a circular “eye” at one end that provides a secure attachment for hooks, shackles, or slings.

Eye bolts come in several types:

• Plain pattern (for vertical lifts)

• Shoulder pattern (for angular lifts)

• Swivel or pivot types (limited rotation)

They are commonly made from forged carbon steel or stainless steel and are rated for specific load capacities.

What Is a Swivel Hoist Ring?

A swivel hoist ring is a modern, engineered lifting point designed to rotate and pivot under load. It typically features a 360° rotational base and a 180° pivoting ring, allowing it to align with the direction of the applied force automatically.

Swivel hoist rings are often used in multi-directional lifts, complex load orientations, and confined spaces where traditional eye bolts could bend or fail under angular tension.

Pros and Cons: Eye Bolts vs. Swivel Hoist Rings

Let’s compare these two lifting solutions across several key categories.

⚙️ Strength and Load Direction

Eye Bolts

• Pros: Strong and reliable for vertical lifting applications.

• Cons: When the load is applied at an angle, the capacity decreases dramatically. Lifting at an angle can cause bending, deformation, or complete failure if a shoulder-type bolt isn’t used properly.

Swivel Hoist Rings

• Pros: Designed to swivel and pivot, they can safely handle angular or side pulls without reducing load capacity.

• Cons: More moving parts mean a slightly higher chance of mechanical wear and the need for inspection and maintenance.

✅ Winner: Swivel Hoist Rings – superior flexibility and safer under varying load directions.

💸 Cost and Availability

Eye Bolts

• Pros: Cost-effective, widely available, and easy to replace.

• Cons: Lack of versatility means you may need several sizes or styles for different jobs.

Swivel Hoist Rings

• Pros: One hoist ring can often handle multiple lifting configurations.

• Cons: Typically more expensive upfront, though they can save money long-term by reducing the risk of damage or accidents.

✅ Winner: Eye Bolts – more economical for simple, straight lifts.

🧰 Ease of Use

Eye Bolts

• Pros: Simple design and quick to install.

• Cons: Requires careful alignment; if the shoulder is not flush or the load is angled, the risk of failure increases.

Swivel Hoist Rings

• Pros: Can rotate into position automatically, reducing the need to manually align the lifting point.

• Cons: Heavier and require proper torque when tightening the mounting bolt.

✅ Winner: Swivel Hoist Rings – safer and more forgiving in setup.

🛠️ Durability and Maintenance

Eye Bolts

• Pros: Minimal maintenance required beyond visual inspection for wear or corrosion.

• Cons: Easier to overload or misuse, especially when exposed to side pulls.

Swivel Hoist Rings

• Pros: Built to endure repeated use under varied angles. Most feature heat-treated alloy steel for long service life.

• Cons: Moving parts can wear over time—inspect regularly for free rotation and any deformation.

✅ Winner: Swivel Hoist Rings – longer lifespan when properly maintained.

Real-World Applications

Both lifting points have their place in modern rigging operations.

Eye Bolts Are Ideal For:

• Vertical lifting applications such as removing covers, plates, or lids.

• Light-duty or static lifting points in maintenance shops or assembly operations.

• Permanent fixtures where the load direction will not change.

Swivel Hoist Rings Are Ideal For:

• Machining and fabrication where components must be lifted at multiple angles.

• Heavy equipment manufacturing where loads shift during the lift.

• Confined spaces where the operator can’t perfectly align the rigging.

• Offshore, aerospace, or energy sectors where precision and safety are non-negotiable.

Best Practices for Safe Use

No matter which lifting point you choose, proper installation and inspection are critical to safety.

Eye Bolt Best Practices

1. Always use shoulder eye bolts for angular lifts.

2. Ensure the shoulder sits flush against the surface.

3. Never exceed the Working Load Limit (WLL) marked on the bolt.

4. Inspect regularly for bent shanks, cracks, or corrosion.

5. Use properly sized washers and nuts to secure the bolt.

Swivel Hoist Ring Best Practices

1. Always tighten to the manufacturer’s torque specification.

2. Ensure free rotation and pivoting before use.

3. Inspect for worn threads, seized rings, or deformed components.

4. Use only grade 8 or higher mounting bolts when required.

5. Keep lubricated according to manufacturer recommendations.

Making the Right Choice

If your lifting operations are straight, predictable, and low-risk, eye bolts can provide a safe, economical solution.

However, if your lifts involve angled pulls, rotating loads, or confined spaces, swivel hoist rings deliver the safety and flexibility modern rigging demands.

Many companies now choose swivel hoist rings as their standard lifting point to minimize risk and improve efficiency across various lifting scenarios.

Why Choose Hercules Crane & Lifting Supplies

At Hercules Crane & Lifting Supplies, we offer a wide range of eye bolts, swivel hoist rings, shackles, and rigging hardware from trusted industry brands.

Our experts can help you:

• Select the right lifting point for your load configuration.

• Verify load ratings and compatibility.

• Arrange inspection, testing, and certification services to keep your lifting equipment compliant.

Whether you’re outfitting a new production line or upgrading your rigging hardware, we’ve got you covered from crane to hook.
