Wire Rope Clips: Versatility in Fastening and Rigging

In the field of industrial applications, where strength and security are paramount, wire rope plays a crucial role. Whether it's hoisting heavy loads, securing structures, or enabling intricate rigging systems, wire ropes provide the backbone of industrial operations. One essential tool that often goes underappreciated — but plays a vital role in keeping these ropes in place — is the wire rope clip. In this article, we'll explore their functionality, applications, and best practices for safe usage.

Understanding Wire Rope Clips

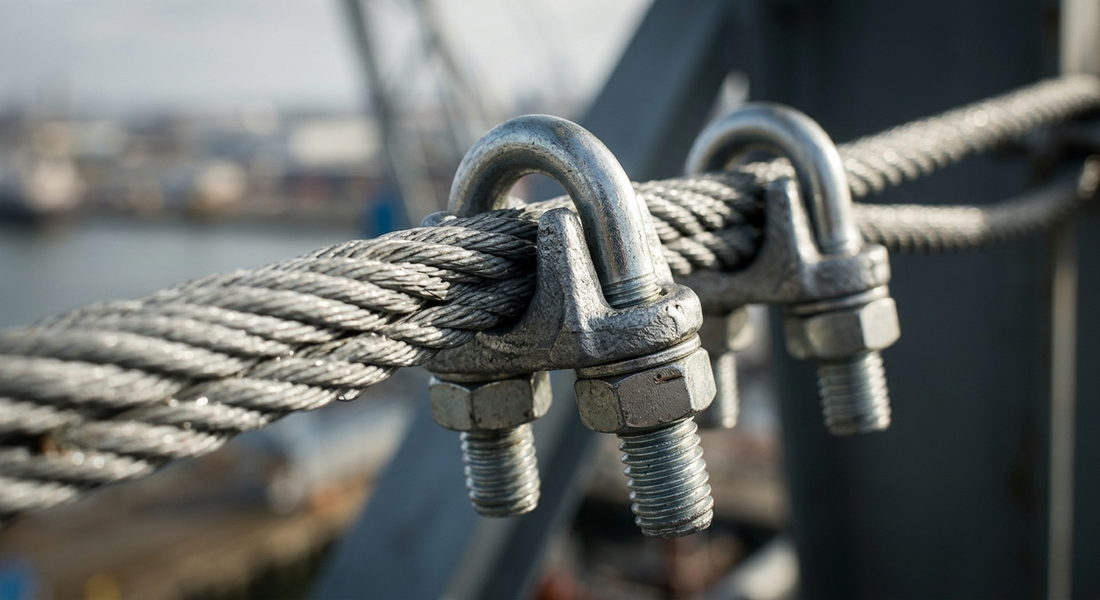

A wire rope clip — also known as a cable clamp or U-bolt clamp — is a simple yet ingenious device used to fasten the ends of wire ropes together or to create an eye termination. Comprising a saddle, a U-bolt, and nuts, wire rope clips are designed to maintain the structural integrity of wire rope connections, preventing slippage and enhancing the overall stability of the assembly.

How Wire Rope Clips Work

The functionality of wire rope clips lies in their ability to create a secure loop or termination point in a wire rope without the need for complex splicing or welding techniques. The saddle, U-bolt, and nuts work in tandem to grip the rope firmly, preventing it from unraveling or slipping out of place. By exerting pressure on the rope and maintaining tension, wire rope clips provide a reliable solution for a wide range of applications.

Applications

Lifting and Rigging

In scenarios where heavy loads need to be lifted, wire rope clips offer a reliable method of creating eye terminations for attaching hooks, shackles, or other lifting devices. This ensures that the load remains secure during the lifting process, minimizing the risk of accidents.

Fencing and Railings

Wire rope clips find extensive use in creating durable and secure railings and fences. Whether it's for agricultural fencing or deck railings, these clips help maintain tension and prevent the wire ropes from sagging or becoming loose over time.

Guy Wire Assemblies

In telecommunications and utility industries, wire rope clips are crucial for constructing guy wire assemblies that stabilize structures like communication towers or utility poles.

Marine and Nautical Applications

Wire rope clips are also employed in marine settings to secure lines, lifelines, and standing rigging on boats and ships, ensuring the safety of both crew and vessel.

Zipline and Suspension Systems

In adventure and recreational settings, wire rope clips aid in creating safe and robust zipline and suspension systems, allowing enthusiasts to enjoy thrilling experiences with peace of mind.

Best Practices for Using Wire Rope Clips

Proper Clip Selection

Choosing the right size and type of wire rope clip is essential. Clips are available in various sizes to accommodate different rope diameters, and selecting the appropriate size ensures optimal grip and performance.

Number of Clips

Depending on the application, the number of clips required may vary. A general rule of thumb is to use three clips for wire rope terminations and at least two clips for creating an eye loop.

Clip Orientation

Correct orientation of the clips matters. The U-bolt should be placed on the dead end of the rope, with the saddle on the live end. This arrangement ensures that the live end bears the load while the U-bolt secures the dead end.

Tightening Sequence

When tightening the nuts on the U-bolt, it's crucial to follow the recommended sequence. Tighten each nut alternately to ensure even pressure distribution and prevent distortion of the clips.

Torque Specifications

Over-tightening can lead to damage, and under-tightening can compromise the integrity of the connection. Following the manufacturer's torque specifications is vital to achieve the optimal balance.

Featured Wire Rope Clips from Hercules

Below are three wire rope clips available from Hercules — suitable for a range of load ratings, rope diameters, and environmental conditions.

Product	Image
CLIP 5/8 WIRE ROPE GALV CLIP 5/8" WIRE ROPE GALV G-450 BLUE — ideal for standard galvanized wire rope terminations.
CLIP 3/4 WIRE ROPE HD SS316 CLIP 3/4" WIRE ROPE HD SS316 SS-450 — heavy-duty stainless steel construction for marine and corrosive environments.
CLIP ROPE W 1-1/8IN FST 5 41IN GALV Crosby Wire Rope Clip, Fist Grip G-429, 1-1/8" cable, forged steel, galvanized — for heavy-load applications requiring maximum grip.

Key Takeaways

Wire rope clips are the unsung heroes that play a crucial role in maintaining the safety and stability of various structures and systems. Their simplicity belies their importance — providing an efficient and reliable solution for creating secure terminations and loops in wire ropes. By understanding their functionality, applications, and best practices, industries can harness their power to enhance safety, efficiency, and reliability in their operations.
