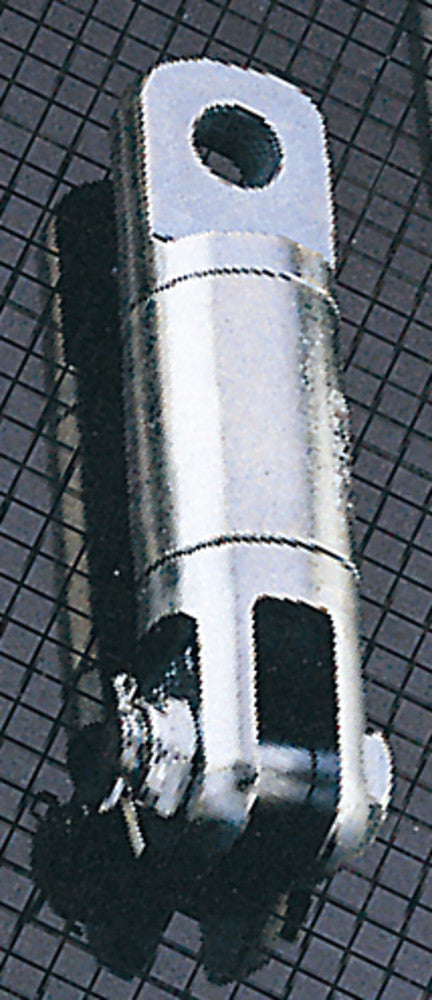

Crosby AS-4 Eye & Jaw Swivels - Size 7/8 in

Product Description

Product Description:
The Crosby AS-4 Eye & Jaw Angular Contact Bearing Swivels are engineered for lifting and rigging applications requiring smooth rotation under load, reduced wire rope wear, and dependable load handling performance. Designed with an eye-to-jaw configuration and precision angular contact bearings, these heavy-duty swivels provide reliable rotational movement for offshore, marine, crane, industrial, and material handling operations. The eye and jaw design allows secure connection to a wide variety of rigging assemblies while helping minimize torque buildup and twisting in wire rope systems.
Manufactured from forged steel with a corrosion-resistant zinc plated finish, the AS-4 swivels are built for rugged lifting environments and repeated rotational loading applications. Angular contact bearings maximize swivel efficiency and extend the service life of both the swivel and connected wire rope assemblies.

Material:
Forged steel construction
Zinc plated finish
Angular contact bearing assembly

Specifications:
Eye & jaw angular contact bearing swivel design
Designed for smooth rotation under load
Angular contact bearings maximize swivel efficiency and service life
Designed for high rotational speed with lower startup torque
Entire swivel zinc plated for corrosion resistance
Jaw end provides secure rigging attachment
Individually proof tested to 2 times the Working Load Limit with certification
5:1 design factor
Pressure lubrication fitting furnished on swivels 8.5 tons and larger
Available in capacities from approximately 0.45 tons through 35 tons
Compatible with wire rope sizes from 1/8 in through 1-1/2 in
Designed for heavy-duty industrial lifting and rigging environments

Uses:
Industrial lifting systems
Offshore rigging operations
Marine lifting applications
Crane and hoist assemblies
Wire rope rotational lifting systems
Material handling operations
Construction rigging applications
Heavy-duty rigging systems

Key Features:
Angular contact bearings – Maximizes efficiency and extends swivel service life
Eye & jaw configuration – Allows versatile rigging attachment options
Corrosion-resistant finish – Zinc plating improves outdoor and marine performance
Smooth rotational operation – Helps reduce wire rope twisting and torque buildup
Pressure lubrication fitting – Simplifies maintenance on larger swivel sizes
Heavy-duty forged construction – Built for rugged industrial applications
Proof tested design – Individually tested to 2 times Working Load Limit
Industrial-grade reliability – Designed for demanding lifting and rigging environments
