Name: S-423T Wedge Sockets
Brand: Crosby
SKU: 1034018
Price: 1402.44 CAD
Availability: OutOfStock

Product Description

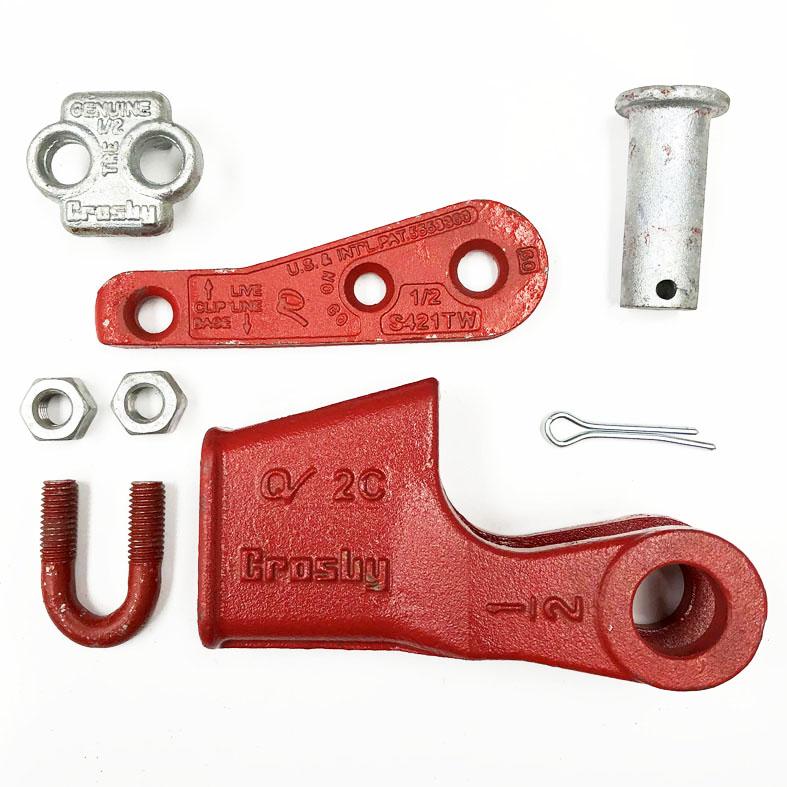

Crosby S-423T Terminator® wedge sockets are high-performance wire rope termination components designed for secure and efficient rigging applications. The Terminator® design improves termination reliability and simplifies installation compared to conventional wedge sockets.
These sockets are specifically engineered for use with high-performance, high-strength, compacted strand, and rotation-resistant wire ropes. The design helps eliminate common installation challenges while maintaining consistent performance in demanding lifting environments.

Material:
Body: Cast steel
Individually magnetic particle inspected

Specifications:
Provides ~80% termination efficiency based on rope breaking strength
Designed for use with high-performance and rotation-resistant wire ropes
Eliminates difficulty of properly seating the wedge in termination
Eliminates the “first load” requirement of conventional wedge sockets
Meets EN13411-6 performance requirements
Wedge and accessories provided with zinc finish
Can be retrofitted using S-423TW wedge kit into existing S-421T sockets

Uses:
Wire rope termination in lifting systems
Crane and hoisting applications
Rigging setups requiring secure and adjustable connections
Applications using high-performance wire rope

Key Features:
Terminator® design – Improves reliability and simplifies installation
High efficiency – Achieves ~80% rope strength retention
No first-load requirement – Eliminates need for initial load setting
Easy installation – Reduces seating issues with high-performance rope
Retrofit capability – Compatible with S-421T socket systems
Durable construction – Cast steel body with inspected quality

Wire Rope Diameter (in)	Wire Rope Diameter (mm)	S-423T Assembly Stock No.	S-423TB Assembly with Bolt, Nut and Cotter Pin Stock No.	Weight Each (lb)	Replacement Wedge Kit Stock No. S-423TW**	Replacement Round Pin Kit Stock No. G-4080	Replacement Bolt/Nut/Cotter Kit Stock No. G-4082	Dimension A (in)	Dimension B (in)	Dimension C (in)	Dimension D (in)	Dimension E (in)	Dimension F (in)	Dimension G (in)	Dimension H (in)	Dimension J* (in)	Dimension K (in)	Dimension L (in)	Dimension P (in)	Dimension R (in)	Dimension S (in)	Dimension T (in)	Dimension U (in)	Dimension V (in)
5/8	14-16	1035123	1035218	12.7	1034018	1085725	2038974	8.25	4.50	1.25	1.19	3.00	4.06	2.13	4.61	12.31	1.09	1.22	2.25	0.56	3.25	0.75	6.88	2.60
3/4	18-19	1035132	1035227	19.4	1034027	1085726	2038976	9.88	5.20	1.50	1.38	3.25	4.81	2.44	5.37	14.69	1.50	1.40	2.62	0.66	3.63	0.88	7.65	3.02
7/8	20-22	1035141	1035236	28.8	1034036	1085727	2038978	11.25	5.88	1.75	1.63	3.81	5.73	2.69	6.16	16.98	1.59	1.67	3.13	0.75	4.31	1.00	9.47	3.47
1	24-26	1035150	1035245	39.2	1034045	1085728	2038980	12.81	6.56	2.00	2.00	3.81	5.73	2.94	7.05	18.54	1.44	2.01	3.75	0.88	4.70	1.13	10.41	3.82
1-1/8	28	1035169	1035254	57.1	1034054	1085729	2038982	14.38	6.94	2.25	2.25	4.00	6.85	3.38	7.81	21.23	1.12	2.26	4.25	1.00	5.44	1.25	11.83	4.22
1-1/4	30-32	1035178	1035272	88.6	1034063	1085730	2038984	16.34	8.63	2.62	2.50	4.50	7.76	3.57	9.38	24.10	1.50	2.34	4.50	1.06	6.62	1.38	13.87	5.82
