Product Description

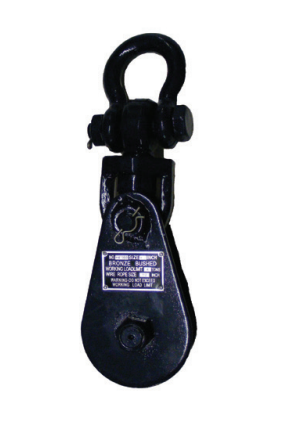

Hercules Block Snatch with Swivel Shackle is a heavy-duty steel rigging block. Primarily used in forestry and general pulling applications. It allows you to quickly change the direction of a wire rope.
Material:
Roller Bearing and Grease Nipple
Material: Steel
Finish: Painted
Specifications:
Designed for wire rope handling and cable redirection applications
Suitable for logging, forestry, and utility applications
Design Factor: 4:1
Identification: Size/WLL
Rated in Metric Ton(s)
WLL 1.5 t
Shipping weight 3 lbs
Uses:
Logging and forestry yarding operations
Wire rope hauling systems
Skidding and pulling applications
Material handling systems
Utility and infrastructure work
Winch and recovery operations
General heavy-duty cable handling applications
Key Features:
Heavy-duty sheave design – Provides dependable wire rope guidance and load control
Steel construction – Built for rugged forestry and industrial environments
Compatible with wire rope systems – Designed for hauling, pulling, and yarding operations
Durable sheave assembly – Helps reduce wire rope wear during operation
Heavy-duty side plates – Engineered for strength and long service life
Outdoor-ready construction – Suitable for harsh environmental conditions
Versatile applications – Ideal for logging, utility, and industrial use
Industrial-grade reliability – Designed for repeated heavy-duty cable handling operations
| Part Number | Block Size (in) | Working Load Limit (tonnes) |
|---|---|---|
| 4193X | 3 | 2 |
| 4194-5X | 4-1/2 | 4 |
| 4196X | 6 | 8 |
| 4198X | 8 | 8 |
Bearing Type: Bronze bushed.
| Specification | Value |
|---|---|
| Working Load Limit | 5 Tons |
| Type | 419 |
| Size | 5/16-3/8" |
| Sheave Size | 3" |
| Rope Type | Wire Rope |
| Rope Diameter | 5/16-3/8" |
| Number of Sheaves | 1 |
| Max. Cable Size | 5/16-3/8" |
| Material | 45# Shackle |
| Finish | Blue |
| End Fitting Type | Shackle |
| Configuration | Shackle Fitting, Single Sheave |
| Certification Standard | ASME B30.26 |
| Bearing Type | Brone Bush |
