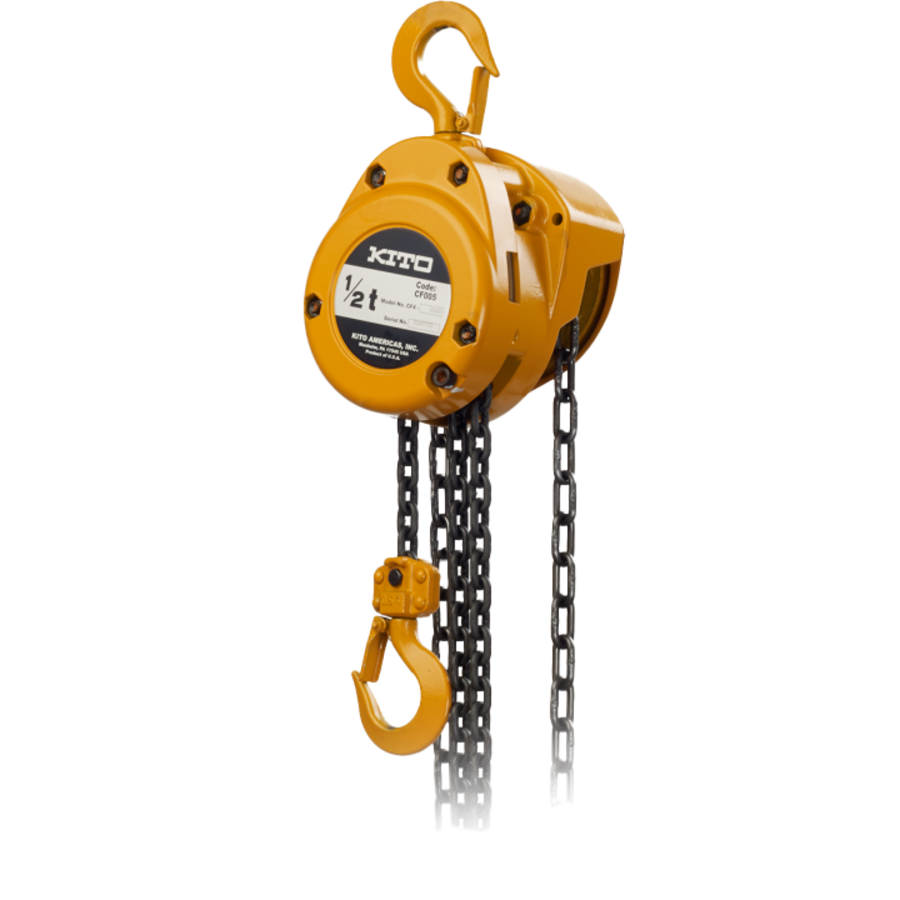

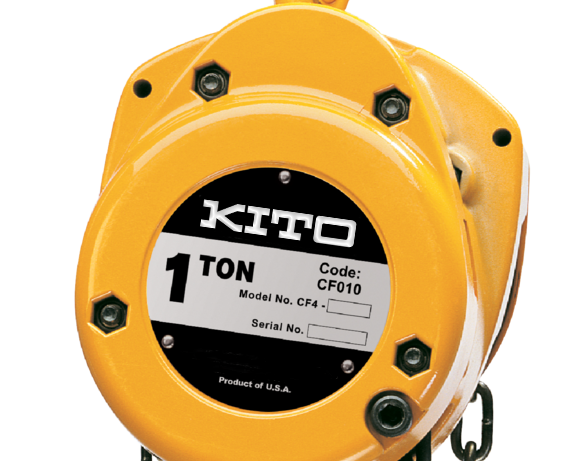

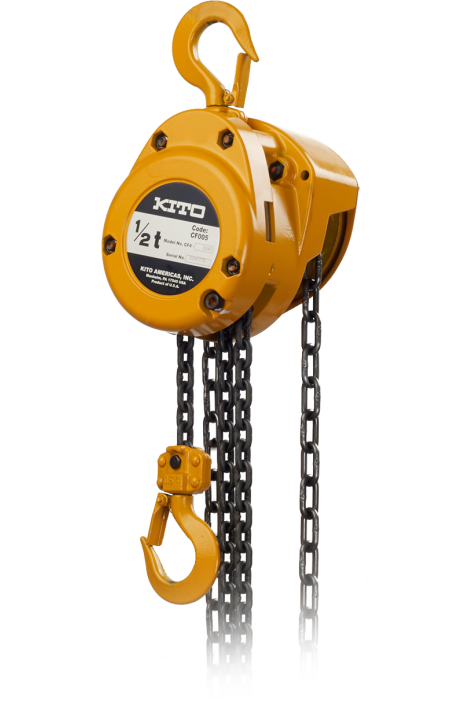

The Kito CF Hand Chain Hoist - 1 Ton 20 ft Lift

Product Description

Product Description:

The Kito’s CF model hoist exemplifies simplicity in design while making zero compromises on performance. Its die-cast aluminum body reduces the hoist weight and won’t corrode when exposed to the elements. Plus, the proven 1:1 gear ratio makes it a fast hoist that’s reliable and maintenance friendly. The CF is simply the best choice when you need an economical hoist that doesn’t skimp on toughness.

Material:

Rugged, die-cast aluminum body.

Specification:

Load Capacity: 1.0 metric ton (2,200 lbs)

CF010-20-20: Features a 10-foot lifting height and a 10-foot hand chain drop

Housing Material: Rugged, die-cast aluminum body.

Pull to Lift Full Load: 79 pounds (36 kg) of manual effort required.

Design Standards: Certified compliant with ASME B30.16 and ASME HST-2 standards

Shipping weight 45lbs

Uses:

Construction & Contracting: Frequently used on building sites for lifting, positioning, and rigging heavy materials

Maintenance & Repair: Utilized in equipment repair, plant maintenance, and automotive/machinery shops

Key Features:

The CF hand chain hoist offers a rugged die-cast aluminum body, which provides exceptional strength and durability.

The Weston-Style Load Brake is one of the most important inventions in the hoisting industry. With two moisture-resistant brake pads and four braking surfaces, the CF gives you positive stopping action.

Manual effort is minimized thanks to the CF’s smooth-running, pre-lubricated ball bearings. Get a longer-lasting, smoother operating hoist with precision-machined drive train components that make lifting easy.

Tackle tough demands with a hoist that’s built with high-strength, heat-treated parts. The main pinion shaft and load gear on the CF are engineered for non-stop performance.

Load Chain Fall: 1

Hand Chain Falls: 2
