Hoist & Trolley 575V, 1t 20Ft Lift 14/4

Product Description

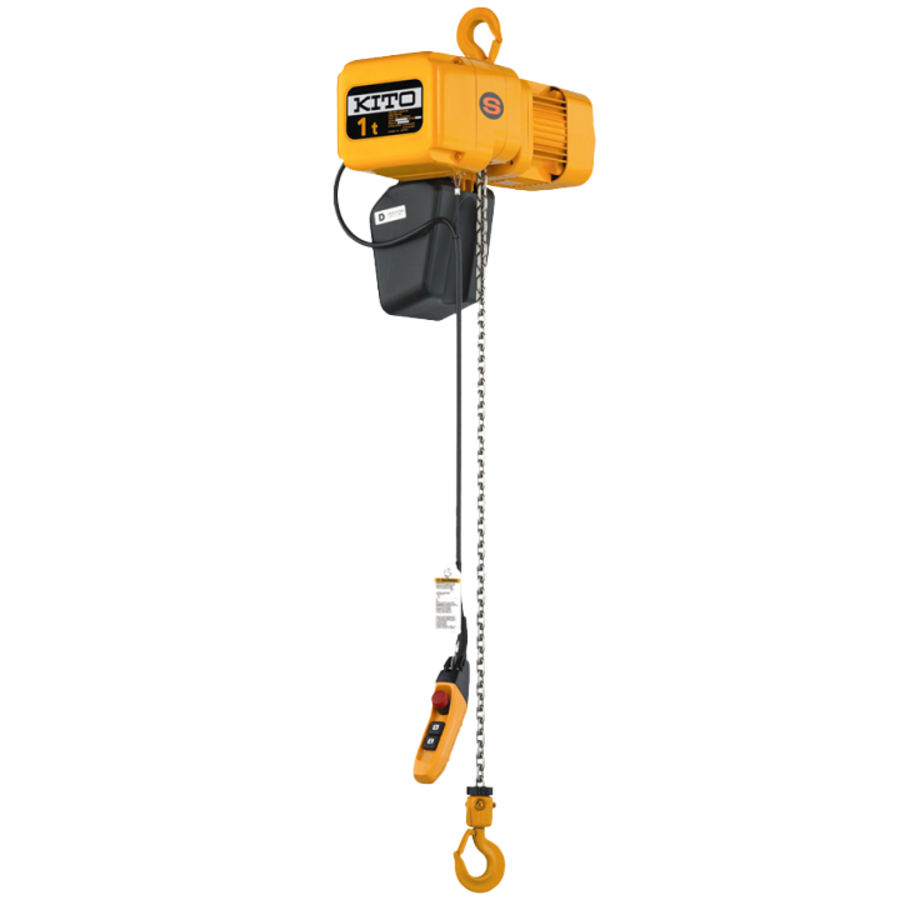

The Electric Chain Hoist and Trolley combination is a powered overhead lifting and traversing system rated at 1 Ton working load limit, with 20 ft of lift height, lug mount suspension, 575V three-phase power supply, dual hoist lift speeds of 14 FPM and 4 FPM, and a motorized trolley with dual travel speeds of 80 FPM and 20 FPM, engineered for demanding industrial lifting and material handling applications in manufacturing, fabrication, assembly, and maintenance environments with standard Canadian 575V three-phase electrical infrastructure.

The 575V three-phase power supply configuration is the standard industrial voltage used in Canadian industrial facilities, making this hoist and trolley combination well suited for direct connection to standard Canadian industrial electrical infrastructure without the need for step-down transformers or voltage conversion equipment. At 1 Ton working load limit, this system is suited for a wide range of industrial lifting tasks including machinery components, fabricated assemblies, tooling, and other loads within the rated capacity.

The 20 ft lift height accommodates load pick-up from floor level and delivery to elevated work surfaces, fixtures, or processing positions within standard industrial bay heights. The dual hoist lift speeds of 14 FPM and 4 FPM provide operational flexibility — the higher 14 FPM speed enables efficient load travel over the full 20 ft lift height, while the lower 4 FPM speed provides precise, controlled load positioning for accurate placement at the destination. The motorized trolley with dual travel speeds of 80 FPM and 20 FPM enables powered horizontal load traversal along the overhead runway or monorail beam, with the higher 80 FPM trolley speed supporting rapid load transport across the work area and the lower 20 FPM speed providing controlled, precise trolley positioning for accurate load placement at the target work station or pick-up point.

The lug mount suspension integrates the hoist directly to the trolley via a fixed lug connection, providing a compact and rigid hoist-to-trolley interface suited for standard overhead crane runway and monorail applications where the combined hoist and trolley assembly travels as a single unit along the beam.

Material: Steel alloy hoist body, load chain, and trolley with precision-engineered electric hoist motor, trolley drive motor, and load brake mechanism

Compatible With: 575V three-phase industrial electrical supply circuits with adequate amperage for combined hoist and trolley motor operation Overhead crane runways and monorail beams with flange dimensions compatible with the motorized trolley Loads within the 1 Ton working load limit

Uses: Powered lifting and horizontal traversal of loads up to 1 Ton in manufacturing, fabrication, and assembly environments with 575V three-phase electrical infrastructure Dual-speed hoist operation for efficient load travel at 14 FPM and precise positioning at 4 FPM Dual-speed trolley traversal for rapid load transport at 80 FPM and precise trolley positioning at 20 FPM Integration into overhead crane runway and monorail systems for complete powered material handling

Key Features: 1 Ton working load limit 20 ft lift height for standard industrial bay applications 575V three-phase power supply for direct connection to standard Canadian industrial electrical infrastructure Dual hoist lift speeds of 14 FPM and 4 FPM for productive travel and precise load positioning Motorized trolley with dual travel speeds of 80 FPM and 20 FPM for rapid and precise horizontal traversal Lug mount suspension for compact, rigid hoist-to-trolley integration Complete hoist and trolley combination for powered lifting and traversing in a single system

Note: The electrical circuit must provide adequate voltage and amperage to meet the combined hoist and trolley motor operating requirements. The supporting runway or monorail beam must be rated to carry the combined weight of the hoist, trolley, and maximum suspended load, and the trolley must be compatible with the beam flange dimensions. Specifications including motor ratings, load chain size, trolley beam flange range, pendant control details, power supply cord length, and applicable standards compliance should be confirmed against the official product documentation prior to ordering. Installation must be performed by a qualified electrician and rigging professional in accordance with the manufacturer's installation instructions and applicable electrical and overhead crane safety standards.
