HOIST AIR .25T 6FT LIFT 25FPM

Product Description

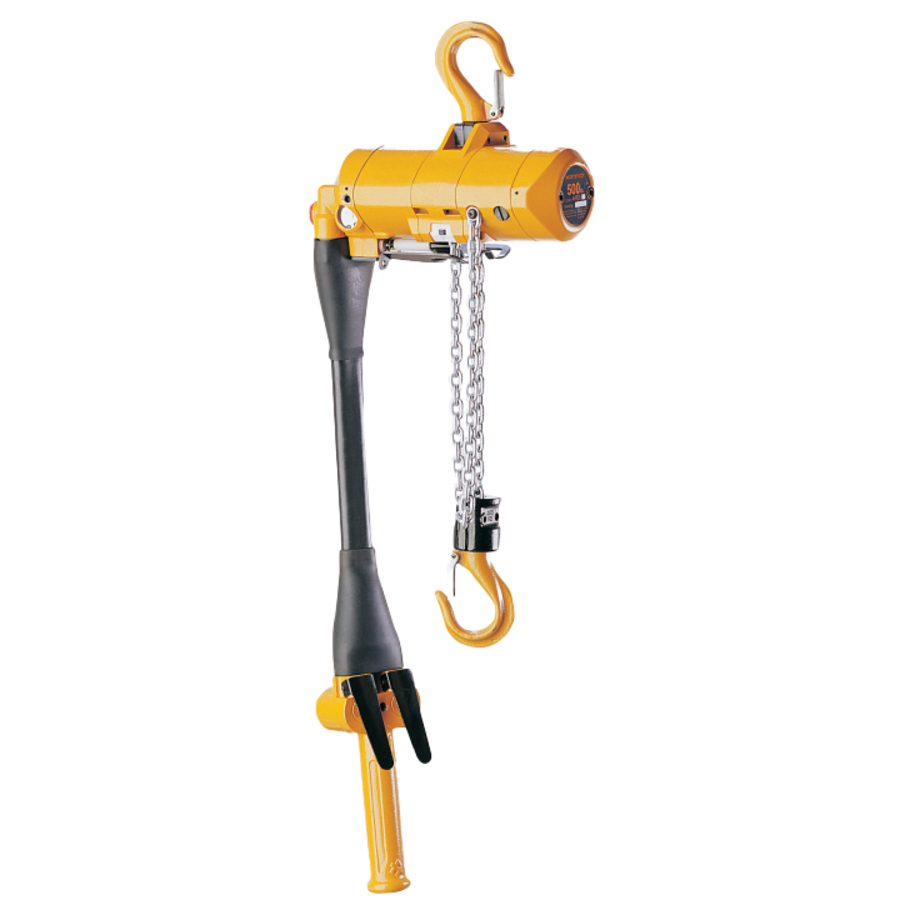

The Kito Air Hoist is a pneumatically operated lifting tool engineered for industrial environments where electric hoists are impractical or prohibited, such as hazardous locations, wet environments, paint booths, and facilities where compressed air is the primary utility. With a 1/4 Ton (250 kg) rated capacity, 6 ft of lift, and a lift speed of 25 FPM, this hoist is well suited for light-duty precision lifting, parts manipulation, assembly line assistance, and ergonomic load handling applications where smooth, variable-speed control and a compact footprint are required. The hook mount suspension allows for quick and flexible installation on beams, trolleys, and other overhead structures.

The manipulator designation indicates this air hoist is configured or suited for use in load manipulation and ergonomic assist applications, where the operator guides and positions the load with minimal physical effort rather than simply lifting and lowering between fixed points. Air hoists in this application class are valued for their smooth and infinitely variable speed control, which is achieved by modulating the air supply through the pendant throttle valve. This allows the operator to move loads with a level of precision and responsiveness that is difficult to achieve with standard electric chain hoists, making the Kito air hoist well suited for assembly, inspection, and positioning tasks requiring fine load control.

Pneumatic hoists offer several operational advantages in industrial environments, including intrinsic safety in the presence of flammable gases or dust, resistance to moisture and washdown conditions, and the ability to operate continuously without the thermal limitations associated with electric motors. The 25 FPM lift speed provides a practical balance between cycle time and control precision for light-duty manipulation tasks, and the hook mount configuration allows this hoist to be paired with compatible air-powered or manual trolleys for horizontal load travel when required.

Material: Alloy steel load chain Aluminum or steel hoist body depending on configuration Steel upper hook and lower load hook

Compatible With: Compatible Kito air trolleys and manual push trolleys Kito replacement load chain for applicable air hoist series Standard rigging hardware rated for 1/4 Ton working load Facility compressed air supply system

Uses: Light-duty precision lifting and load manipulation Ergonomic assist and assembly line load handling Parts positioning and inspection operations Lifting in hazardous, wet, or explosion-risk environments Facilities where electric hoists are impractical or prohibited

Key Features: 1/4 Ton (250 kg) rated capacity 6 ft standard lift height 25 FPM lift speed Pneumatic operation for use in hazardous or wet environments Smooth and variable speed control via pendant throttle Hook mount suspension for flexible installation Suited for load manipulation and ergonomic assist applications Compatible with air and manual trolleys

Note: Verify facility compressed air supply pressure and flow capacity against the hoist's pneumatic requirements before installation. Confirm current model specifications, air consumption, and compatible trolley options with your Kito distributor.
