HOIST AIR 0.5 TONNE 10 LIFT 6 PB 34FPM

Product Description

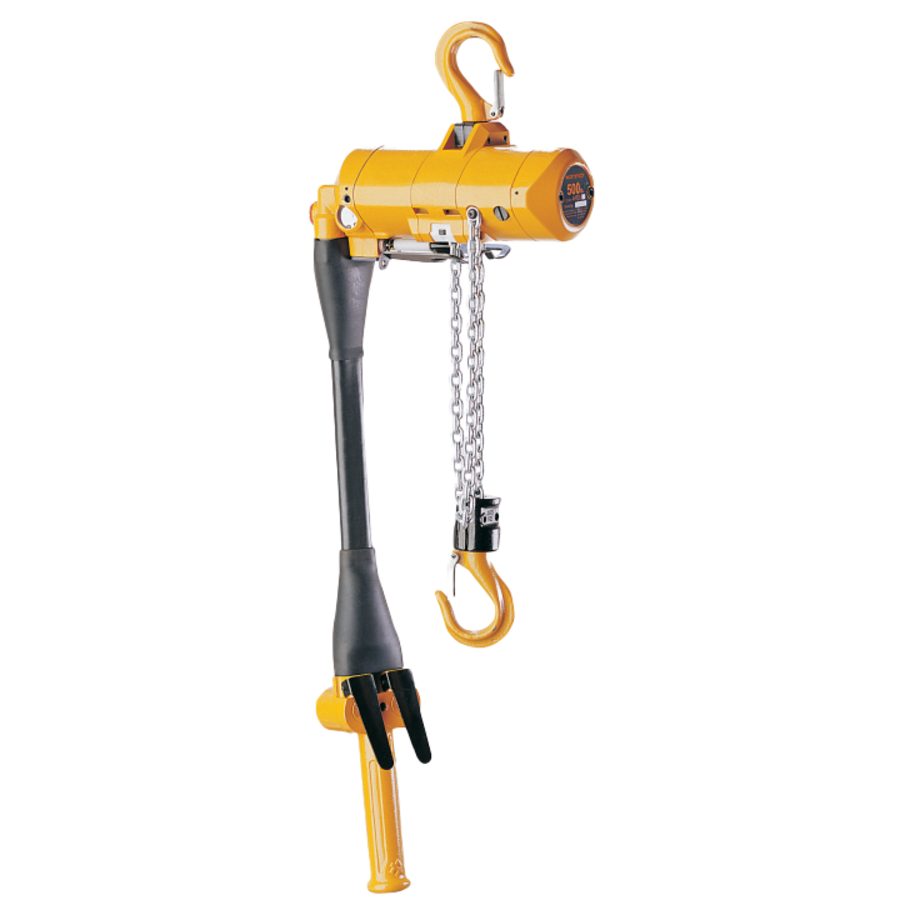

The Kito Air Hoist is a 0.5-ton (500 kg) rated pneumatic chain hoist with a 10-foot lift height, 34 feet per minute (FPM) lift speed, hook mount suspension, and 6-foot air pendant control, designed for overhead load lifting and lowering in industrial environments where compressed air is the preferred or required power source. The 34 FPM lift speed provides efficient load travel for production and assembly environments where cycle time is a consideration, offering faster throughput than lower-speed pneumatic hoists at the same capacity. Pneumatic hoists are well suited for hazardous locations where electric hoists present ignition risks, as well as wet, washdown, and corrosive environments where electrical equipment requires additional protection.

The 6-foot air pendant control provides the operator with ergonomic, hands-on control of hoist lifting and lowering functions from a safe operating distance, with the air-powered pendant eliminating the electrical wiring and conduit requirements associated with electric pendant controls. This makes the air pendant particularly well suited for wet, washdown, and hazardous area installations where electrical pendant controls are impractical or prohibited. The hook mount allows the hoist to be suspended from a fixed overhead anchorage point, beam, trolley, or rigging hardware, providing a stable and secure mounting arrangement for vertical lifting and load positioning operations.

The 0.5-ton working load limit makes this air hoist well suited for light to medium-duty industrial lifting tasks in manufacturing, maintenance, and production environments with existing compressed air infrastructure.

Specifications: Working Load Limit: 0.5 Ton (500 kg) Lift Height: 10 ft Lift Speed: 34 FPM Power Source: Pneumatic (Compressed Air) Mount Type: Hook Control Type: Air Pendant (6 ft)

Compatible With: Compressed air supply systems — verify required air pressure and flow rate with manufacturer specifications Standard overhead anchorage points, beams, trolleys, and rigging hardware rated for the applied load

Uses: Overhead load lifting and lowering in industrial and manufacturing environments Hazardous locations where electric hoists and pendant controls present ignition risks Wet and washdown environments where electrical pendant controls are impractical Production and assembly line material handling requiring efficient lift cycle speeds Light to medium-duty component handling and machinery maintenance applications

Key Features: 0.5-ton working load limit 10 ft lift height 34 FPM lift speed — efficient cycle time for production and assembly environments Pneumatic (air) powered — suitable for hazardous, wet, and corrosive environments Hook mount — compatible with standard overhead anchorage points, beams, and trolleys 6 ft air pendant control — operator control without electrical wiring requirements Kito Series

Note: Verify compressed air supply pressure, flow rate, and connection requirements with the manufacturer's specifications before installation. Ensure the supporting structure, anchorage point, and any trolley or rigging hardware are rated for the combined weight of the hoist and applied load. Installation and commissioning should be performed by a qualified technician in accordance with the manufacturer's guidelines and applicable workplace safety regulations.
