Mastering Turnbuckle End Fittings: Your Guide to Choosing the Right Connection for Tensioning Systems

Turnbuckles are indispensable tools in rigging, tensioning, construction, marine, and industrial applications. While most people think of turnbuckles simply as tension adjusters, the real work happens at the end fittings — the connection points that determine how the turnbuckle interfaces with the rest of your system. Choosing the right end fitting can improve safety, simplify installation, and ensure your setup performs as expected under load.

In this guide, we’ll take a deep dive into the four most common types of turnbuckle end fittings used in professional rigging and industrial tensioning, explain where to use each one, and offer practical advice to help you spec the right hardware for your next project.

Why End Fittings Matter More Than You Think

Turnbuckles are generally composed of a body and two threaded end fittings. But those end fittings aren’t just passive connectors — they determine:

• What hardware you can attach the turnbuckle to (e.g., shackles, eye bolts, clevises)

• How secure the connection is under load

• How easy it is to install and remove during setup or maintenance

• Whether the system will stay aligned under tension or vibration

An inappropriate end fitting can create side-loading, introduce unexpected bends, or even disengage under tension. That’s why understanding the common end fitting types is essential whenever you’re building a tensioning system.

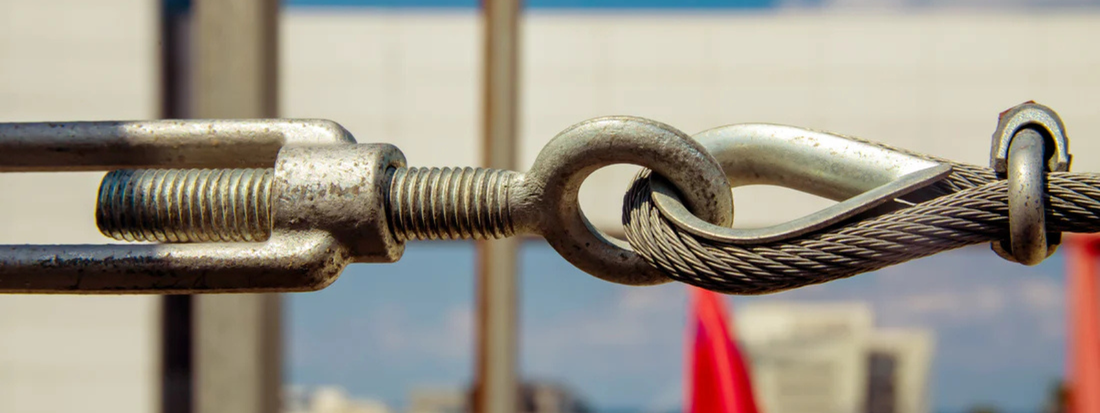

1) Eye End Fittings — Closed Loop for Secure Connection

Eye end fittings feature a fully closed loop on the end of the turnbuckle that accepts shackles, quick links, or other connectors. This looped design minimizes the chance of the connection disengaging during use, making them a go-to choice for many in-line tensioning setups.

Best Uses

• Permanent or semi-permanent tensioning installations

• When connecting via shackles or links

• Long-term setups where security matters

Why They’re Great

The closed loop design keeps attachments from slipping off, even in environments with vibration or movement. For applications involving structural bracing, guy wires, or anchored cables, eye ends provide dependable performance.

⚠️ Pro tip: Ensure the mating connector (like a shackle) matches the eye size; mis-sized attachments can cause wear or unintended loading.

2) Jaw (Clevis) End Fittings — Positive Retention for Secure Pins

Jaw, or clevis, end fittings are shaped with a U-shaped opening and secured with a pin and cotter pin or bolt. This design is all about retention and security — the connection stays put, even through vibration or dynamic loading.

Best Uses

• Structural bracing

• Situations where connection walk-out is unacceptable

• Pin-ready connection points such as clevis plates or tabs

Why They’re Great

Jaw ends provide a positive pinned connection — once installed, there’s no risk of an unintentional disconnect that you might see with open hooks. This makes them ideal for rigging that sees frequent movement or loads that shift over time.

🔩 Pro tip: Always use the correct pin size and secure it with a cotter pin or retainer for maximum safety.

Turnbuckles can be used for something as simple as a guard rail or clothesline, or as complex as a suspension bridge.

3) Hook End Fittings — Quick and Convenient, With Limits

Hook end fittings offer the simplest means of attachment — just hook the turnbuckle onto an anchor point and you’re good to go. While they’re incredibly convenient, especially for temporary or adjustable tensioning, they also represent the least secure option among the common end fittings.

Best Uses

• Temporary tensioning

• Light-duty setups like banners, shade cloth, or tension lines

• Projects where speed of assembly matters more than long-term security

Why They’re Great

Hooks are fast and easy. For jobs where you’re adjusting tension frequently, or when the tensioned system doesn’t see much movement, hook ends are hard to beat on convenience.

⚠️ A safety note: Because hook ends are open, they can accidentally unseat if tension is lost or the load shifts. If there’s any chance of backlash or dynamic force, consider a closed or pinned connection instead.

4) Stub/Stud End Fittings — Engineered Integration Points

Stub or stud end fittings feature a threaded rod or specialized interface designed to be integrated directly into equipment, structures, or custom assemblies. They’re less common in everyday rigging but essential when a purpose-built connection is required.

Best Uses

• Custom tensioning systems

• Integrated structural components

• Machinery or architectural assemblies with specific thread requirements

Why They’re Great

Instead of relying on shackles or connectors, stub ends can be threaded directly into anchors, plates, or purpose-made fittings. This can save space, simplify assemblies, and provide a more engineered approach.

📌 Pro tip: Because stub studs are specialized, pay close attention to thread size and compatibility with the mating component.

Combination End Fittings — Get the Best of Both Worlds

In real-world applications, you’ll often see mixed end fittings — like Jaw & Eye or Hook & Eye — chosen to match the exact hardware on either side of a tensioning run. These combinations allow you to pair the convenience or security of one end with the compatibility of the other.

For example:

• Jaw & Eye: One side pins to a flat lug while the other connects via a shackle

• Hook & Eye: One quick connect side, one secure loop side

This approach ensures a custom fit without sacrificing performance or safety.

How to Choose the Right End Fitting for Your Turnbuckle

Here’s a quick checklist to help you decide:

• Match the hardware: Are you connecting to a shackle, pad eye, or pinned clevis? Choose eye or jaw accordingly.

• Consider retention: If the connection can shift, prioritize closed or pinned fittings.

• Avoid side loading: Turnbuckles are designed for straight-line pull — keep the load path aligned.

• Verify ratings: Always check that the turnbuckle and fittings are rated for your load and environment.

• Inspect before use: Corrosion, threads wear, or bent fittings can compromise safety.

Wrap-Up: End Fittings Are the Heart of Your Turnbuckle Assembly

Turnbuckles do more than just tighten — they serve as the heart of tensioning systems, and the end fittings are the nerve centers that determine how well everything works together. Whether you need secure, permanent connections or quick hookup points, understanding the strengths and limitations of each fitting type will help you build safer, more reliable systems.

In the world of rigging and industrial tensioning, knowing your eyes from your jaws and your hooks from your studs isn’t just hardware trivia — it’s a practical tool for safer, more precise installations.
