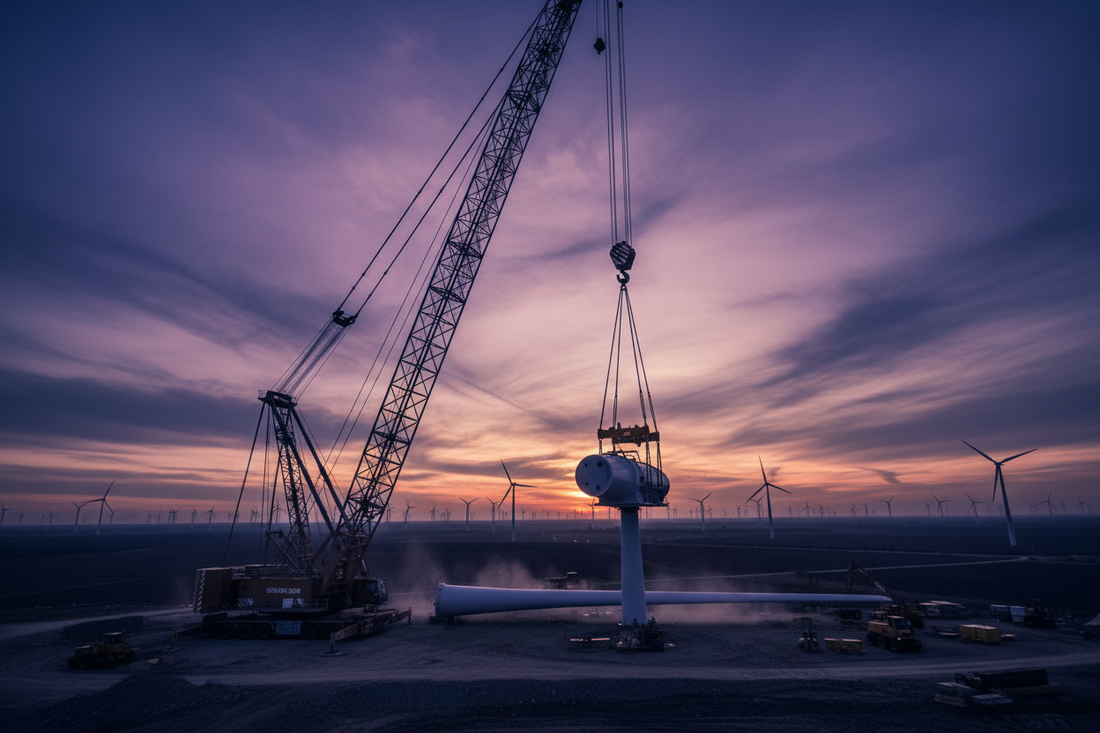

Wind Turbine Repowering: The Heavy Rigging Logistics of 2026

The global transition to renewable energy has entered an aggressive secondary phase: the repowering era. Across North America and Europe, thousands of wind assets installed in the early 2000s are reaching the end of their operational or economic lifespans. However, rather than abandoning these prime, permitted sites, developers are executing partial or full repowering projects—decommissioning legacy turbines and replacing them with megawatt-class components that feature significantly taller hub heights, heavier nacelles, and longer, more aerodynamic blades.

For heavy rigging engineers and crane operators, wind turbine repowering in 2026 presents a completely different matrix of risks compared to greenfield construction. Space is constrained by existing infrastructure, underground high-voltage cables restrict outrigger placement, and the physical sail area of modern blades pushes the boundaries of dynamic wind calculations.

This technical guide breaks down the critical rigging logistics, boom configurations, and aerodynamic physics required to safely execute wind turbine repowering projects today.

The Spatial and Infrastructure Constraints of Repowering

Greenfield wind projects afford rigging teams the luxury of optimized, freshly graded crane pads and expansive laydown yards. Repowering projects, by contrast, require surgeons' precision.

Civil Infrastructure Limitations

Legacy wind farms were engineered for cranes with drastically lower gross vehicle weights and smaller outrigger footprints. A pad designed for a 400-ton all-terrain crane twenty years ago cannot safely support the 1,200 to 1,600-ton class crawler or mobile lattice-boom cranes required to fly today's 4 to 6-megawatt components.

Rigging engineers must conduct extensive civil assessments:

• Geotechnical Verification: Recalculating ground bearing pressure (GBP) thresholds around existing foundations, often requiring extensive timber matting matrices or soil stabilization to prevent crane tipping.

• Underground Utility Mapping: Locating collection lines and buried fiber optics that were laid without modern GIS tracking, ensuring outrigger pads do not crush active subterranean infrastructure.

Advanced Boom Configurations for Extreme Hub Heights

As hub heights soar past 100 meters, selecting the correct boom configuration is a balance between lifting capacity, hook height, wind vulnerability, and mobilization costs.

[Legacy Turbine: ~60-80m Hub Height]  --> Handled by standard mobile cranes
[Modern Repower: 120m-160m Hub Height] --> Requires specialized Wind Attachment (WA) or Luffing Jibs

To achieve the steep boom angles necessary to clear the rotor diameter while maintaining structural capacity, modern fleets rely on highly specialized configurations:

Main Boom with Wind Attachment (WA) / Fixed Jib

Many crane manufacturers have developed specific "Wind Vessel" or "Wind Attachment" boom systems. These configurations stiffen the main boom by utilizing parallel lattice sections or advanced derrick systems, allowing the crane to achieve near-vertical boom angles (often up to 85° to 87°). This maximizes hook height directly over the centerline of the tower foundation without requiring a massive, drag-inducing luffing jib.

Luffing Jib Configurations

When spatial constraints prevent the crane from walking backward or positioning further from the tower base, a luffing jib becomes mandatory. While providing exceptional reach and flexibility, luffing jibs introduce additional geometric variables and increase the overall wind-sail profile of the crane structure itself—a factor that must be accounted for during high-wind stability calculations.

Aerodynamic Physics: Wind-Sail Area & Dynamic Wind Loading

The single greatest threat to a high-height turbine lift is wind. While a nacelle behaves largely as a dense, aerodynamic block, a modern turbine blade acts as a massive airplane wing engineered specifically to capture wind energy. When flying a blade at 130 meters, that aerodynamic efficiency becomes a liability.

1. Calculating the Wind-Sail Area ($A_w$)

Before any critical lift plan is approved, the engineering team must calculate the projected wind-sail area of the load. This is the two-dimensional profile that the load presents to the wind vector.

For a modern 75-meter blade, the surface area is immense. If the blade rotates mid-air and presents its flat side to a sudden wind gust, the resulting force can instantly exceed the crane's side-loading thresholds, causing structural boom failure.

2. Dynamic Wind Loading and Rated Capacity Deductions

Wind doesn't just push the load; it introduces dynamic energy into the entire crane system. As wind speed increases, the crane's effective Rated Capacity Limit (RCL) must be systematically de-rated.

Manufacturers provide specific wind speed limit charts for distinct boom configurations. However, these charts often assume a standard, compact test load. When lifting high-sail-area objects like blades or rotor assemblies, the maximum allowable wind speed for the lift must be adjusted downward using the following relationship:

If the actual load's drag profile significantly exceeds the manufacturer's standard test load assumptions, a lift that appears safe on a standard load chart at 10 m/s may actually risk structural failure at just 7 m/s.

Mitigating Risk: Tailoring and Tagline Control Systems

To combat dynamic wind loading during the installation of repowered rotors and blades, traditional hand-held nylon taglines are no longer sufficient. Controlling a 25-ton blade at a height of 140 meters requires mechanical intervention.

Summary for Project Managers

Wind turbine repowering projects are highly lucrative, yet unforgiving industrial environments. Success depends entirely on treating the atmosphere as a dynamic variable rather than an afterthought. By utilizing precision wind-sail area calculations, adapting boom configurations to modern hub heights, and deploying mechanical tagline mitigation systems, rigging engineers can ensure that the clean energy infrastructure of tomorrow is built safely today.
