Yale PE Series 4.5 Ton Ratchet Lever Hoist Ratchet Pawl

Product Description

Product Description:

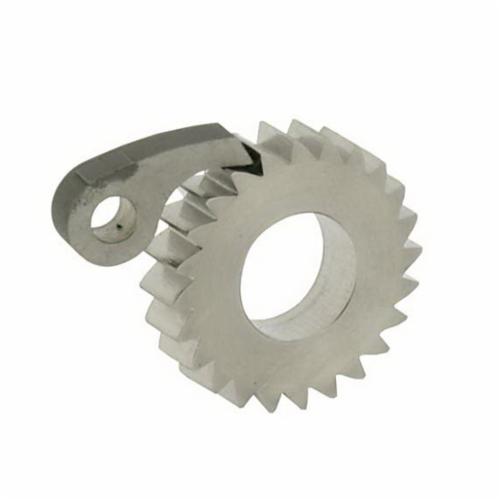

This Yale ratchet pawl is a replacement engagement component for the PE Series 4.5 Ton ratchet lever hoist. Part number 0644850-00 is identified specifically for this hoist series and capacity.

The pawl engages the teeth of the ratchet mechanism as the operating lever is moved. This engagement allows lever movement to be transferred through the hoist in the selected direction while helping prevent unwanted reverse movement of the ratchet during each operating stroke.

A pawl with rounded engagement surfaces, cracks, deformation, corrosion, or restricted movement can cause inconsistent ratchet operation. Replacing the worn component helps restore positive engagement between the pawl and ratchet assembly. The pawl should be inspected together with its spring, pin, ratchet teeth, lever assembly, and other contacting components during servicing. Yale’s PE and PF Series manual provides model-family inspection, maintenance, and parts information for these hoists.

Material:
Manufacturer material not confirmed

Compatible With:
Yale PE Series 4.5 Ton Ratchet Lever Hoist
Hoists specifying part number 0644850-00

Uses:
Engaging the hoist ratchet mechanism
Supporting directional lever operation
Replacing a worn or damaged pawl
Restoring positive ratchet engagement
Maintaining and rebuilding PE Series lever hoists

Key Features:
Model-specific ratchet pawl
Designed for the 4.5 Ton PE Series hoist
Works with the lever and ratchet assembly
Supports controlled mechanical engagement
Compact service replacement component
