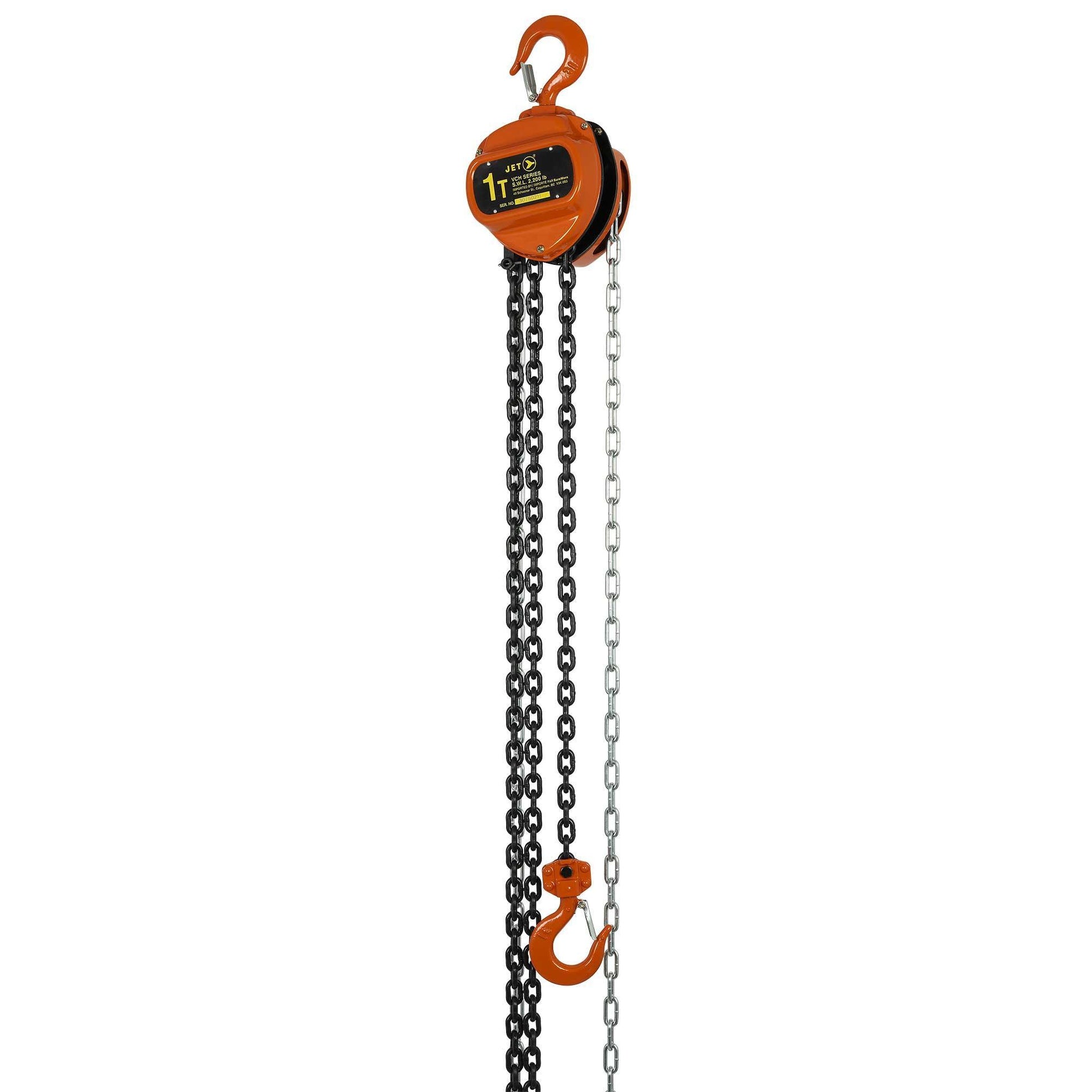

JET VCH Series Standard Duty Chain Hoist - 12-1/16 in - 20 ft - 1 Ton

Product Description

The JET VCH Series Standard Duty Chain Hoist is a 1-ton rated manual chain hoist designed for load lifting, lowering, and positioning in industrial, construction, and maintenance environments where a reliable, portable overhead lifting solution is required. The hand chain-operated mechanism allows a single operator to lift and lower loads with controlled, incremental movement, making it well suited for machinery installation, load positioning, and maintenance operations in facilities without overhead crane infrastructure or in locations where powered hoists are impractical.

With a 20-foot lifting height and a minimum between-hooks distance of 12-1/16 inches, the VCH provides substantial lift travel for the majority of industrial overhead lifting applications. The 33 mm hook opening accommodates standard rigging hardware including shackles, rings, and beam clamps commonly used in overhead lifting configurations. A pull force of 68 lb on the hand chain is required to lift the rated load, making this hoist operable by a single worker without excessive physical effort. The compact body dimensions of 5-3/4 inch width by 5-1/2 inch depth allow the hoist to be used in confined overhead spaces where larger hoist bodies would be impractical.

The dual pawl Weston brake provides positive load holding when the hand chain is released, preventing unintended load lowering during lifting operations. The dual pawl design adds redundancy to the load-holding mechanism, an important safety feature in overhead lifting applications where uncontrolled load descent presents a serious hazard. The combination of 1-ton capacity, 20-foot lift height, dual pawl Weston brake, and compact body dimensions makes the JET VCH a dependable and versatile chain hoist for riggers, millwrights, maintenance technicians, and industrial workers.

Specifications: Series: VCH Grade: Standard Duty Working Load Limit: 1 Ton Lifting Height: 20 ft Minimum Between Hooks: 12-1/16 in Hook Opening: 33 mm Pull to Lift Rated Load: 68 lb Brake Type: Dual Pawl Weston Brake Body Dimensions: 5-3/4 in W x 5-1/2 in D

Compatible With: Standard shackles, rings, beam clamps, and rigging hardware within 33 mm hook opening Trolleys, beam clamps, and overhead lifting structures rated for the applied load

Uses: Overhead load lifting and lowering in industrial and construction environments Machinery installation and removal Load positioning during maintenance and assembly operations Rigging applications requiring portable overhead lifting capability Confined space overhead lifting where compact hoist body dimensions are required

Key Features: Standard duty manual chain hoist 1-ton working load limit 20 ft lifting height 33 mm hook opening — compatible with standard rigging hardware 68 lb pull force required to lift rated load — single-operator capable Dual pawl Weston brake — positive load holding when hand chain is released Compact body: 5-3/4 in W x 5-1/2 in D for use in confined overhead spaces 12-1/16 in minimum between hooks JET VCH Series
