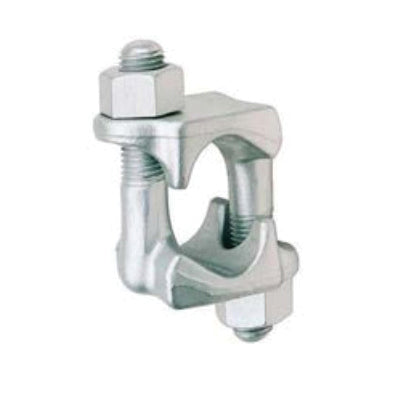

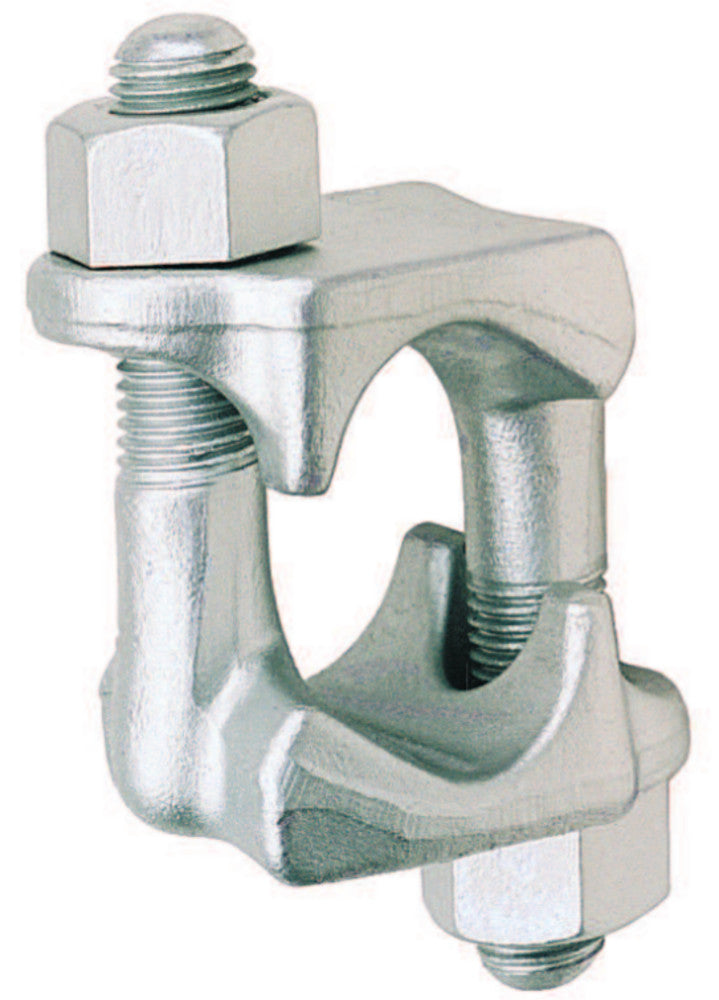

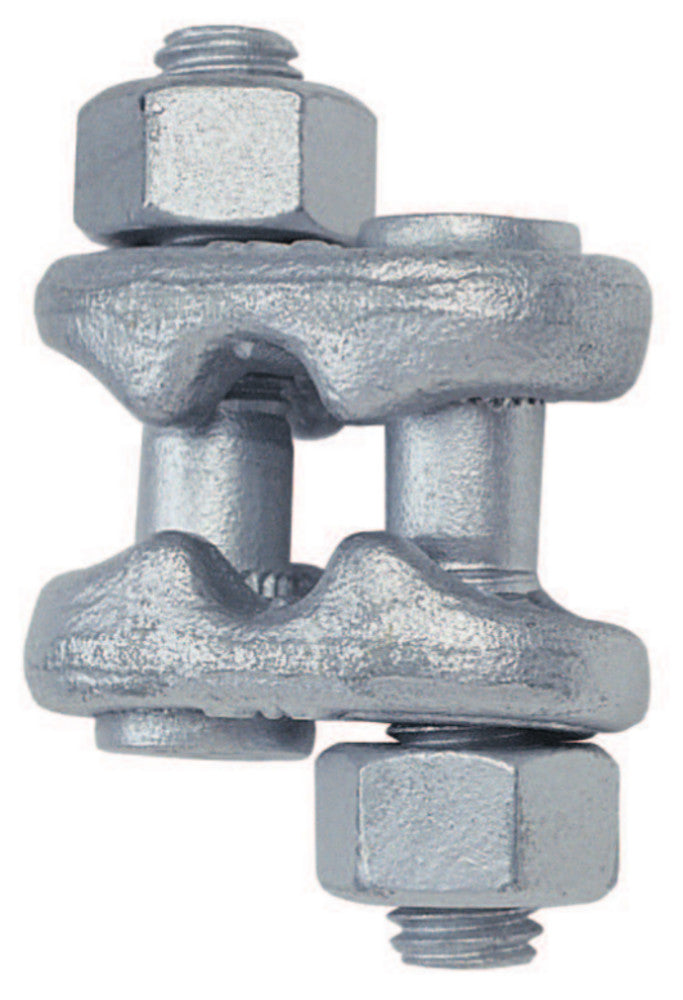

Name: G-429 Fist-Grip Wire Rope Clip
Brand: Crosby
SKU: 1010471
Price: 30.90 CAD
Availability: InStock

Product Description

Crosby G-429 Fist Grip Wire Rope Clips are designed for secure, high-efficiency wire rope terminations in lifting, rigging, and tensioning applications. The patented Fist Grip® design incorporates bolts as an integral part of the saddle, eliminating the risk of incorrect installation common with traditional U-bolt clips.
Manufactured from forged steel and fully galvanized, these clips provide superior strength, durability, and corrosion resistance. Their design allows for faster installation while ensuring consistent, reliable performance in demanding environments.

Material:
Forged steel
Galvanized, corrosion-resistant finish

Specifications:
Fist Grip design with bolts integrated into the saddle
Available for a wide range of wire rope sizes (varies by model)
Efficiency rating: 80% (3/16"–7/8"), 90% (1"–1-1/2") of rope strength
Designed to prevent incorrect installation orientation
All clips individually tagged or bagged with instructions
Assembled with standard heavy hex nuts
Meets or exceeds ASME B30.26 requirements
Meets Federal Specification FF-C-450 Type III, Class 1

Uses:
Forming wire rope eyes and end terminations
Rigging and lifting assemblies
Tensioning and securing applications
General construction and industrial use

Key Features:
Fist Grip design – Prevents improper installation and improves safety
Integrated bolts – Enhances strength and simplifies assembly
High efficiency – Strong termination performance across size range
Corrosion resistant – Fully galvanized for extended service life
Forged construction – Built for demanding applications
Reliable compliance – Meets industry and federal standards

Wire Rope Size (in)	Stock No.	Standard Package Qty.	Weight Per 100 (lb)	Rope / Saddle Opening (in)	Saddle Depth (in)	Bolt Diameter (in)	Overall Height (in)	Overall Width (in)
3/16 - 1/4	1010471	100	23	0.40	0.94	0.38	1.41	1.44
5/16	1010499	100	28	0.47	1.06	0.38	1.50	1.54
3/8	1010514	50	40	0.51	1.06	0.44	1.84	1.78
7/16 - 1/2	1010532	50	62	0.59	1.25	0.50	2.21	2.15
9/16 - 5/8	1010550	50	103	0.72	1.50	0.63	2.72	2.57
3/4	1010578	25	175	0.86	1.81	0.75	2.94	2.67
7/8	1010596	25	225	0.97	2.12	0.75	3.31	2.86
1	1010612	10	300	1.13	2.25	0.75	3.72	3.06
1-1/8	1010630	10	400	1.28	2.38	0.88	4.22	3.44
1-1/4	1010658	10	400	1.34	2.50	0.88	4.25	3.56
1-3/8 - 1-1/2	1010676	Bulk	700	1.56	3.00	1.00	5.56	4.12

Finish: Galvanized for corrosion resistance.

Design: Bolts are integral to the saddle and are assembled with standard heavy hex nuts.

Performance: Crosby lists an efficiency rating of 80% for 3/16 in through 7/8 in rope sizes and 90% for 1 in through 1-1/2 in rope sizes when properly applied.

Compliance: Meets or exceeds applicable ASME B30.26 requirements and Federal Specification FF-C-450 Type III, Class 1 requirements, subject to Crosby's stated exceptions.

New Style Design: Sizes through 5/8 in incorporate the new-style design.
