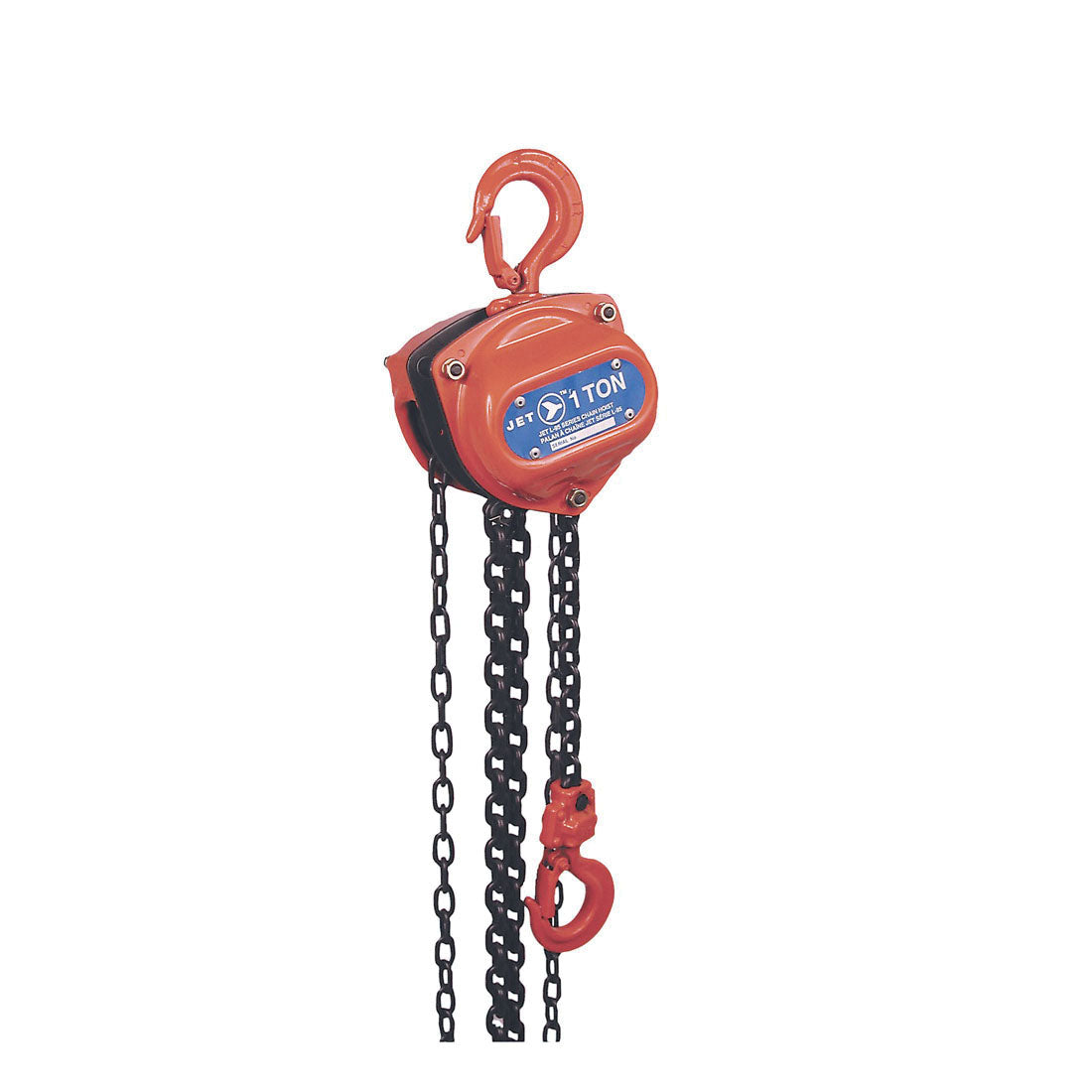

JET L-95 Series Super Heavy Duty Chain Hoist - 11-3/4 in - 10 ft - 2200 lb - 56 lb

Product Description

The JET L-95 Series Super Heavy Duty Chain Hoist is a 2,200 lb (1-ton) rated manual chain hoist designed for demanding overhead lifting applications in heavy industrial, construction, and maintenance environments where superior construction quality and braking redundancy are required at the 1-ton capacity level. The super heavy duty classification reflects the enhanced structural integrity and component quality of the L-95 relative to standard and heavy duty chain hoist models at equivalent capacity, making it the preferred choice for sustained high-cycle lifting operations and the most demanding field and shop environments.

With a 10-foot lifting height and a minimum between-hooks distance of 11-3/4 inches, the L-95 provides adequate lift travel for the majority of industrial overhead lifting tasks. The 1-11/16 inch hook opening accommodates a wide range of rigging hardware including shackles, rings, and beam clamps commonly used in overhead lifting configurations, providing greater hardware compatibility than smaller hook opening models at the same capacity. A pull force of 56 lb on the hand chain is required to lift the rated load, making this hoist comfortably operable by a single worker. The body dimensions of 6-5/16 inch width by 6-5/16 inch depth provide a compact, balanced profile suited for use in confined overhead spaces.

The dual pawl/disc brake system provides positive load holding when the hand chain is released, with the disc brake adding an additional layer of braking redundancy beyond the dual pawl Weston brake mechanism. This combined braking system distinguishes the L-95 from the KCH heavy duty model at the same capacity and is particularly valuable in applications where load security during extended holds is critical. The combination of 2,200 lb capacity, dual pawl/disc brake, 1-11/16 inch hook opening, and super heavy duty construction makes the JET L-95 a dependable and high-performance chain hoist for riggers, millwrights, and industrial maintenance personnel who demand maximum reliability at the 1-ton capacity level.

Specifications: Series: L-95 Grade: Super Heavy Duty Working Load Limit: 2,200 lb Lifting Height: 10 ft Minimum Between Hooks: 11-3/4 in Hook Opening: 1-11/16 in Pull to Lift Rated Load: 56 lb Brake Type: Dual Pawl/Disc Brake Body Dimensions: 6-5/16 in W x 6-5/16 in D

Compatible With: Standard shackles, rings, beam clamps, and rigging hardware within 1-11/16 in hook opening Trolleys, beam clamps, and overhead lifting structures rated for the applied load

Uses: Overhead load lifting and lowering in heavy industrial and construction environments Machinery installation and removal requiring maximum hoist reliability Load positioning during heavy maintenance and assembly operations Rigging applications requiring super heavy duty portable overhead lifting capability High-cycle industrial lifting operations demanding enhanced component durability

Key Features: Super heavy duty manual chain hoist 2,200 lb working load limit 10 ft lifting height 1-11/16 in hook opening — wide hardware compatibility 56 lb pull force required to lift rated load — single-operator capable Dual pawl/disc brake — positive load holding with combined braking redundancy Compact body: 6-5/16 in W x 6-5/16 in D 11-3/4 in minimum between hooks JET L-95 Series
