MASTERLINK 1/2 WIDE BODY ALLOY

Part #:1014266
MASTERLINK 1/2 WIDE BODY ALLOY

Please note: images may not be exact representations. Always refer to manufacturer's specifications.

MASTERLINK 1/2 WIDE BODY ALLOY

Part #:1014266
$66.90

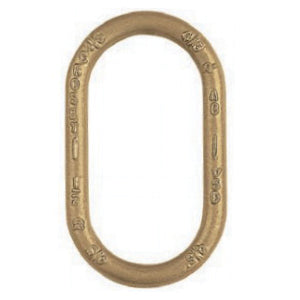

Crosby A342 1/2" 'W" Alloy Master Link: Alloy steel Quenched & Tempered. Individually Proof Tested to values shown, with certification. Proof Tested with special fixtures sized to prevent localized point loading. Forgings have a Product Identification Code (PIC) for material traceability, along with the size, the name Crosby and USA in raised lettering. Selected sizes designated with W in the size column have enlarged inside dimensions to allow additional room for sling hardware and crane hook. Crosby 7/8 to 2 A-342 master links are type approved to DNV-ST-E271-2.7-1 Offshore Containers. These Crosby master links are 100% proof tested, MPI and impact tested. The tests are conducted by Crosby and 3.1 test certification is available upon request. Refer to the Crosby COLD TUFF master links that meet the additional requirements of DNV rules for certification of lifting appliances - Loose Gear. Incorporates patented QUIC-CHECK deformation indicators. Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit. Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these links meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.

Description

Crosby A342 1/2" 'W" Alloy Master Link: Alloy steel Quenched & Tempered. Individually Proof Tested to values shown, with certification. Proof Tested with special fixtures sized to prevent localized point loading. Forgings have a Product Identification Code (PIC) for material traceability, along with the size, the name Crosby and USA in raised lettering. Selected sizes designated with W in the size column have enlarged inside dimensions to allow additional room for sling hardware and crane hook. Crosby 7/8 to 2 A-342 master links are type approved to DNV-ST-E271-2.7-1 Offshore Containers. These Crosby master links are 100% proof tested, MPI and impact tested. The tests are conducted by Crosby and 3.1 test certification is available upon request. Refer to the Crosby COLD TUFF master links that meet the additional requirements of DNV rules for certification of lifting appliances - Loose Gear. Incorporates patented QUIC-CHECK deformation indicators. Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit. Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these links meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
