Crosby

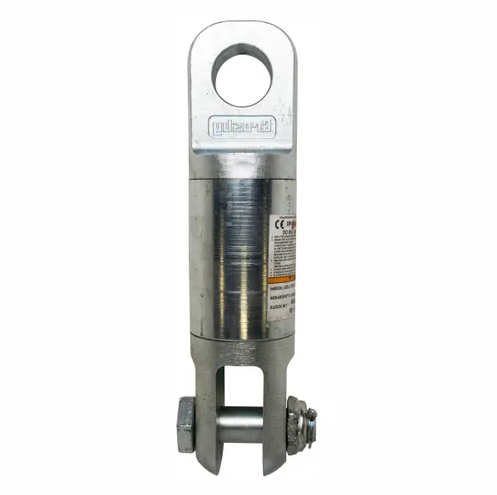

AS-3 Jaw & Eye

AS-3 Jaw & Eye

Part #1016205

$809.73 CAD
$809.73 CAD
Sale Low stock
Wire Rope Size
View full details

Product Description

The Crosby AS-3 Jaw & Eye Swivel is designed for lifting and rigging applications requiring smooth rotation under load while minimizing wire rope twist and torque buildup. Featuring precision angular contact bearing technology, the AS-3 swivel improves operational efficiency, reliability, and wire rope service life in demanding industrial environments.
Engineered for high rotation speeds and reduced rotational resistance, the AS-3 provides dependable performance for crane, marine, offshore, and heavy lifting applications where controlled swivel movement and secure load alignment are essential.

Material:
Forged alloy steel components
Angular contact bearings
Zinc-plated corrosion-resistant finish

Specifications:
Jaw & eye swivel design
Angular contact bearings maximize efficiency and service life
Designed for high rotation speed with reduced torque initiation
Available in capacities from approximately 0.45 ton to 35 tons
Compatible with wire rope sizes from 1/8" to 1-1/2"
Entire swivel zinc plated for corrosion resistance
Individually proof tested to 2 times the Working Load Limit with certification
5:1 design factor
Pressure lubrication fitting included on swivels 8.5 tons and larger
Meets or exceeds ASME B30.26 requirements

Uses:
Crane and hoisting systems
Wire rope lifting assemblies
Marine and offshore rigging
Industrial and construction lifting
Applications requiring controlled swivel rotation

Key Features:
Angular contact bearings – Reduce torque and improve swivel performance
Smooth rotation – Designed for high rotation speed under load
Corrosion resistant – Zinc-plated finish for extended service life
Heavy-duty construction – Engineered for demanding lifting environments
Proof tested – Individually tested for reliability and safety
Wire rope protection – Helps reduce twisting and extend rope life

Working Load Limit (tons) Wire Rope Size (in) Stock No. Weight Each (lb) Overall Width (in) Jaw Pin Center to Eye Center (in) Overall Length (in) Jaw Pin Center to Top (in) Jaw Opening (in) Jaw Pin Diameter (in) Jaw Outside Width (in) Jaw End Height (in) Eye Thickness (in) Eye Opening (in) Eye Center to End (in) Eye End Length (in) Replacement Bolt Kit Stock No.
0.45 1/8 1016205 0.3 0.88 2.50 3.25 0.25 0.19 0.25 0.38 0.41 0.25 0.25 0.38 0.84 2018360
0.75 1/4 1016216 0.9 1.31 3.69 4.56 0.31 0.22 0.38 0.44 0.56 0.31 0.38 0.44 0.88 2018361
1.5 3/8 1016224 1.9 1.63 4.19 5.44 0.50 0.28 0.50 0.69 0.78 0.50 0.66 0.63 1.38 2018362
3.0 1/2 1016232 4.6 2.00 6.19 8.13 0.75 0.38 0.75 0.94 1.19 0.75 0.91 1.00 2.00 2018363
5.0 5/8 1016243 9.1 2.50 7.88 10.19 1.00 0.53 0.88 1.13 1.50 1.00 1.25 1.19 2.63 2018364
8.5 3/4 1016250 15.6 3.00 9.50 12.25 1.56 0.56 1.25 1.34 2.09 1.25 1.41 1.50 3.13 2018365
10 7/8 1016259 39.0 4.00 13.75 17.31 1.75 0.81 1.50 1.75 3.50 1.72 1.63 1.81 4.69 2018367
15 1 1016268 40.0 4.00 13.44 17.31 1.75 0.81 1.50 1.75 3.50 2.00 2.00 2.13 4.69 2018367
25 1-1/4 1016277 78.0 5.00 16.00 20.75 2.00 1.13 2.00 2.38 3.69 2.25 2.31 2.38 5.25 2018368
35 1-1/2 1016286 78.0 5.00 16.00 20.75 2.00 1.13 2.00 2.38 3.69 2.25 2.31 2.38 5.20 2018368

Design Factor: 5:1

Proof Test: Individually proof tested to 2 times the Working Load Limit.
