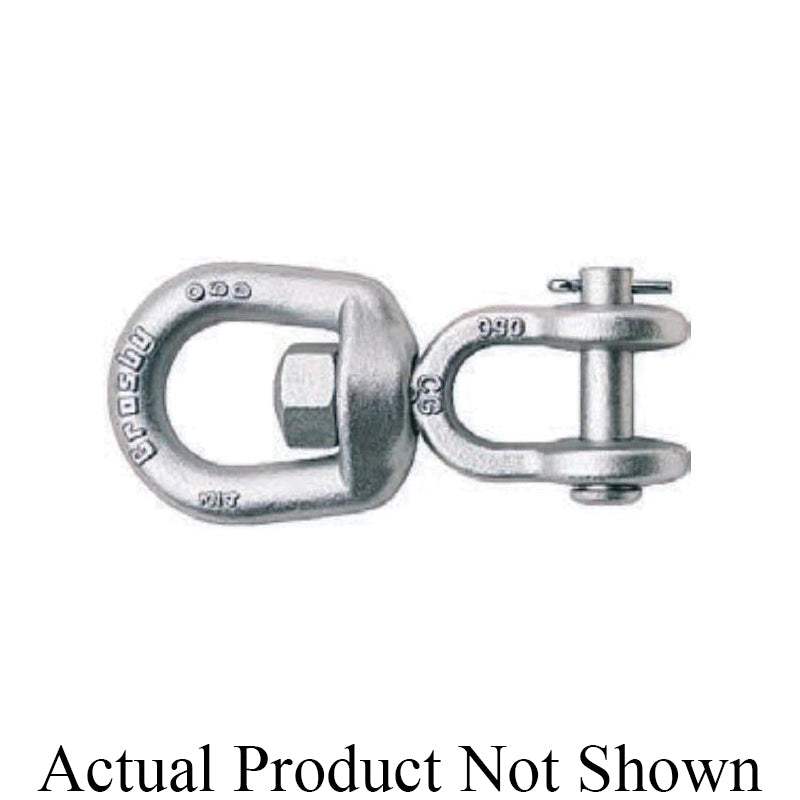

Please note: images may not be exact representations. Always refer to manufacturer's specifications.

1 1

Crosby

G-403 Jaw End Swivels

Name: G-403 Jaw End Swivels
Brand: Crosby
SKU: 1016536
Price: 457.97 CAD
Availability: OutOfStock

SKU: Part #1016536

$457.97 CAD

Sale Low stock

Size 1" 1/2" 1-1/2" 1-1/4" 3/4" 3/8" 5/16" 5/8" 7/8"

Quantity

View full details

Product Description

The Crosby G-403 Jaw End Swivel is designed as a positioning device for lifting and rigging applications where alignment and load positioning are required. Featuring a jaw-to-eye swivel configuration, the G-403 helps reduce twisting and maintain proper load alignment during lifting operations.
Manufactured from forged, quenched, and tempered steel, the G-403 delivers dependable strength and durability for demanding industrial, marine, construction, and rigging environments. These swivels are intended for positioning applications and are not designed to rotate under load.

Material:
Forged steel construction
Quenched and tempered steel
Hot-dip galvanized finish

Specifications:
Jaw end swivel design
Positioning device for lifting and rigging applications
Not intended to rotate under load
Hot-dip galvanized for corrosion resistance
Available in multiple sizes and Working Load Limits
Forged jaw with bolt, nut, and cotter pin connection
5:1 design factor
Individually marked with Working Load Limit identification
Meets or exceeds ASME B30.26 requirements
Meets Federal Specification RR-C-271H Type VII, Class 3 performance requirements

Uses:
Load positioning applications
Wire rope and chain rigging assemblies
Construction and industrial lifting
Marine and offshore rigging
General material handling

Key Features:
Forged construction – Built for demanding lifting environments
Hot-dip galvanized – Corrosion-resistant finish for extended service life
Jaw end connection – Provides secure rigging attachment and alignment
Positioning capability – Helps reduce twisting during setup and load handling
Heavy-duty performance – Quenched and tempered for added durability
Standards compliant – Meets major ASME and Federal specification requirements

Size (in)	Stock No.	Working Load Limit (lb)	Weight Each (lb)	Overall Eye Width (in)	Eye Opening Length (in)	Eye Opening Width (in)	Jaw Lug Outside Width (in)	Eye Section Thickness (in)	Jaw Opening (in)	Jaw Outside Width (in)	Swivel Neck Diameter (in)	Jaw Inside Length (in)	Pin Diameter (in)	Reach (in)	Eye-End Length (in)	Jaw-End Length (in)
5/16	1016411	1,250	0.34	1.63	0.81	1.00	0.81	0.81	0.50	1.13	0.38	0.88	0.31	2.94	2.06	1.81
3/8	1016439	2,250	0.66	2.00	0.94	1.25	1.00	1.00	0.63	1.41	0.50	1.06	0.38	3.63	2.50	2.25
1/2	1016457	3,600	1.34	2.50	1.31	1.50	1.31	1.31	0.75	1.75	0.63	1.31	0.50	4.50	3.19	2.88
5/8	1016475	5,200	2.48	3.00	1.56	1.75	1.63	1.50	0.94	2.06	0.75	1.50	0.63	5.31	3.88	3.44
3/4	1016493	7,200	3.88	3.50	1.75	2.00	1.88	1.88	1.13	2.53	0.88	1.75	0.75	6.06	4.31	4.00
7/8	1016518	10,000	5.87	4.00	2.06	2.25	2.13	2.13	1.34	2.79	1.00	2.06	0.88	7.00	5.00	4.53
1	1016536	12,500	9.84	4.50	2.31	2.50	2.63	2.38	1.75	3.72	1.13	2.81	1.13	8.56	5.75	5.94
1-1/4	1016572	18,000	15.75	5.69	2.69	3.13	3.13	3.00	2.06	4.31	1.63	2.81	1.38	9.75	7.06	6.38
1-1/2	1016590	45,200	54.75	7.00	3.88	4.00	5.63	4.00	2.88	6.00	2.25	4.44	2.25	14.25	10.00	10.84
