Product Description

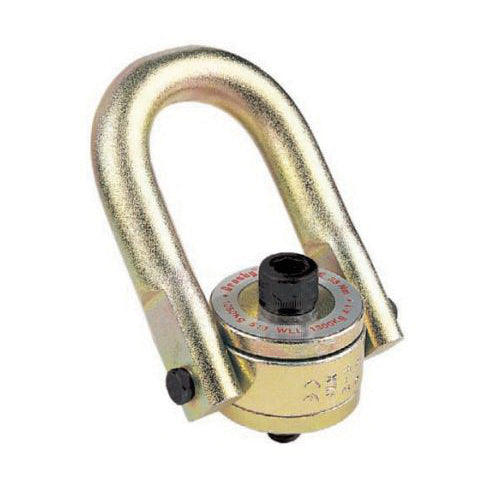

Crosby HR-125 UNC Thread Swivel Hoist Rings are designed to provide a strong, adjustable lifting point for overhead lifting applications, allowing loads to rotate and align naturally during lifting operations.
These hoist rings feature a 360° swivel and 180° pivot, ensuring full load alignment and significantly reducing side loading compared to traditional eye bolts. They are ideal for machinery handling, fabrication, and industrial lifting applications where multi-directional lifting is required.

Material:
Body: Alloy steel (quenched and tempered)
Bolt: High-strength alloy socket head cap screw (ASTM A574)
Finish: Zinc plated (yellow chromate) for corrosion resistance

Specifications:
UNC (imperial) threaded design for North American applications
360° swivel and 180° pivot action for full load alignment
Rated at 100% Working Load Limit at 90° angle
5:1 design factor (ultimate strength WLL)
Individually proof tested to 2-2.5— WLL with certification
Fatigue rated for 20,000 cycles at 1.5— WLL
Washer is color-coded red for UNC identification
Each unit marked with:
Product Identification Code (PIC)
Working Load Limit
Manufacturer identification
Meets or exceeds ASME B30.26 requirements

Uses:
Machinery and equipment lifting
Tooling, dies, and mold handling
Fabrication and industrial lifting
Applications requiring multi-directional load alignment

Key Features:
Swivel design Rotates 360° and pivots to align with load
High strength Alloy steel construction for durability
Full-rated lifting Maintains capacity at 90° angle
Proof tested Certified for overhead lifting
Fatigue resistant Built for repeated lifting cycles
Traceability PIC marking ensures full material tracking

Frame Size No.	Stock No.	Working Load Limit at 5:1 Design Factor (kg)	Working Load Limit at 4:1 Design Factor (kg)	Recommended Torque (Nm)	Bolt Size / Thread (mm)	Effective Thread Projection Length (in)	Overall Height Above Mounting Surface (in)	Swivel Base Diameter (in)	Bail Bend Radius (in)	Bail Diameter (in)	Overall Bail Width (in)	Bail Opening Height (in)	Weight Each (kg)	Replacement Bolt Kit Stock No.
1	1016602	400	500	10	M8 x 1.25 x 40	0.67	2.75	0.97	0.46	0.33	1.87	1.18	0.17	1015875
1	1016613	450	550	16	M10 x 1.50 x 40	0.67	2.75	0.97	0.46	0.33	1.87	1.11	0.18	1015884
2	1016624	1,050	1,300	38	M12 x 1.75 x 50	0.67	4.84	1.96	0.88	0.69	3.35	2.38	1.05	1015897
2	1016635	1,900	2,400	81	M16 x 2.00 x 60	1.06	4.84	1.96	0.88	0.69	3.35	2.22	1.11	1015906
2	1016644	2,150	2,700	136	M20 x 2.50 x 65	1.26	4.84	1.96	0.88	0.69	3.35	2.06	1.17	1015919
3	1016657	3,000	3,750	136	M20 x 2.50 x 75	1.09	6.57	2.96	1.37	1.00	4.88	3.02	3.09	1015930
3	1016668	4,200	5,250	312	M24 x 3.00 x 80	1.29	6.57	2.96	1.37	1.00	4.88	2.78	3.21	1015941
4	1016679	7,000	8,750	637	M30 x 3.50 x 120	2.43	8.74	3.71	1.75	1.20	6.18	4.02	6.53	1015952
5	1016690	11,000	13,750	1,005	M36 x 4.00 x 150	2.13	12.52	4.72	2.39	1.75	8.46	5.59	16.8	1015963
5	1016701	12,500	15,600	1,005	M42 x 4.50 x 160	2.52	12.52	4.72	2.39	1.75	8.46	5.35	17.4	1015974
5	1016712	13,500	16,900	1,350	M48 x 5.00 x 160	2.91	12.52	4.72	2.39	1.75	8.46	5.12	18.0	1015986

Series: Crosby HR-125M Metric Thread Swivel Hoist Rings.

Material: All components are quenched and tempered alloy steel.

Movement: 360° swivel and 180° pivot action. Designed for use at full Working Load Limit within the allowable angular loading range.

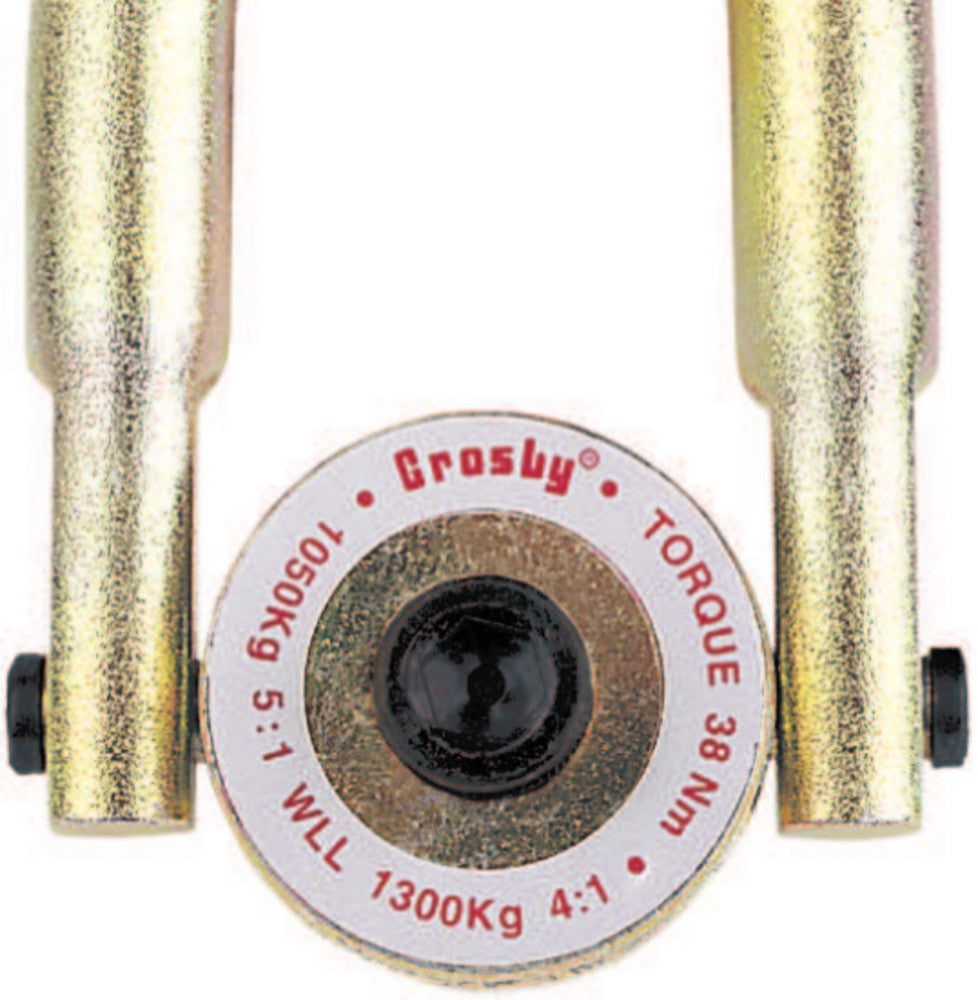

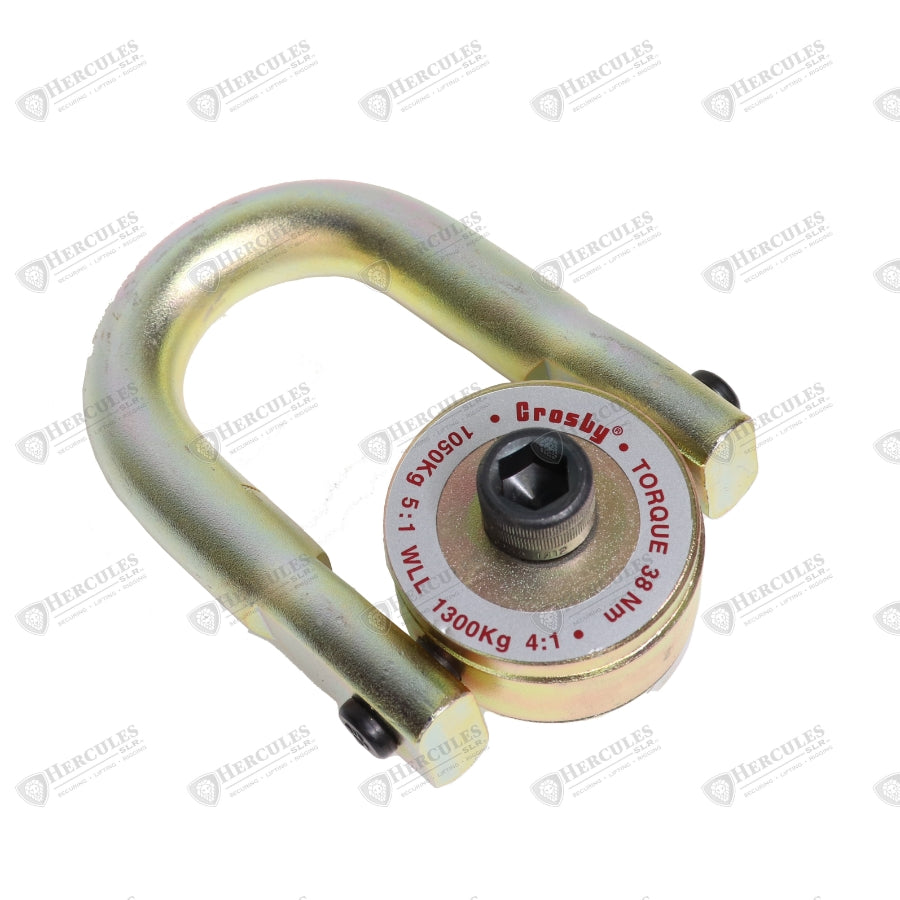

Identification: Metric-thread models use a silver color-coded top washer. The Working Load Limit and recommended installation torque are permanently stamped into each washer. Each hoist ring also carries a Product Identification Code (PIC) for material traceability.

Bolt Specification: Grade 12.9 alloy socket head cap screw to ISO 4762. All threads are metric to ASME B18.3.1M.

Application: Designed for use with ferrous workpieces only.

Proof Load: Individually proof tested to 2-1/2 times the Working Load Limit with certification. Bolts are also individually proof tested.

Fatigue Rating: Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.

Finish: Zinc plated with yellow chromate for increased corrosion protection.

Replacement Parts: The bolt is secured with an E-clip and grooved threads to allow disassembly and reassembly for inspection. Replacement bolt kits are listed in the table.

Compliance: Meets or exceeds ASME B30.26 requirements for identification, ductility, design factor, proof load and temperature requirements.

†: Working Load Limits are published at both 5:1 and 4:1 design factors. Units are individually proof loaded to 2-1/2 times the Working Load Limit based on the 4:1 design factor.
