HOIST RING M12X1.75X50 SWIVEL
Please note: images may not be exact representations. Always refer to manufacturer's specifications.
HOIST RING M12X1.75X50 SWIVEL
$450.00

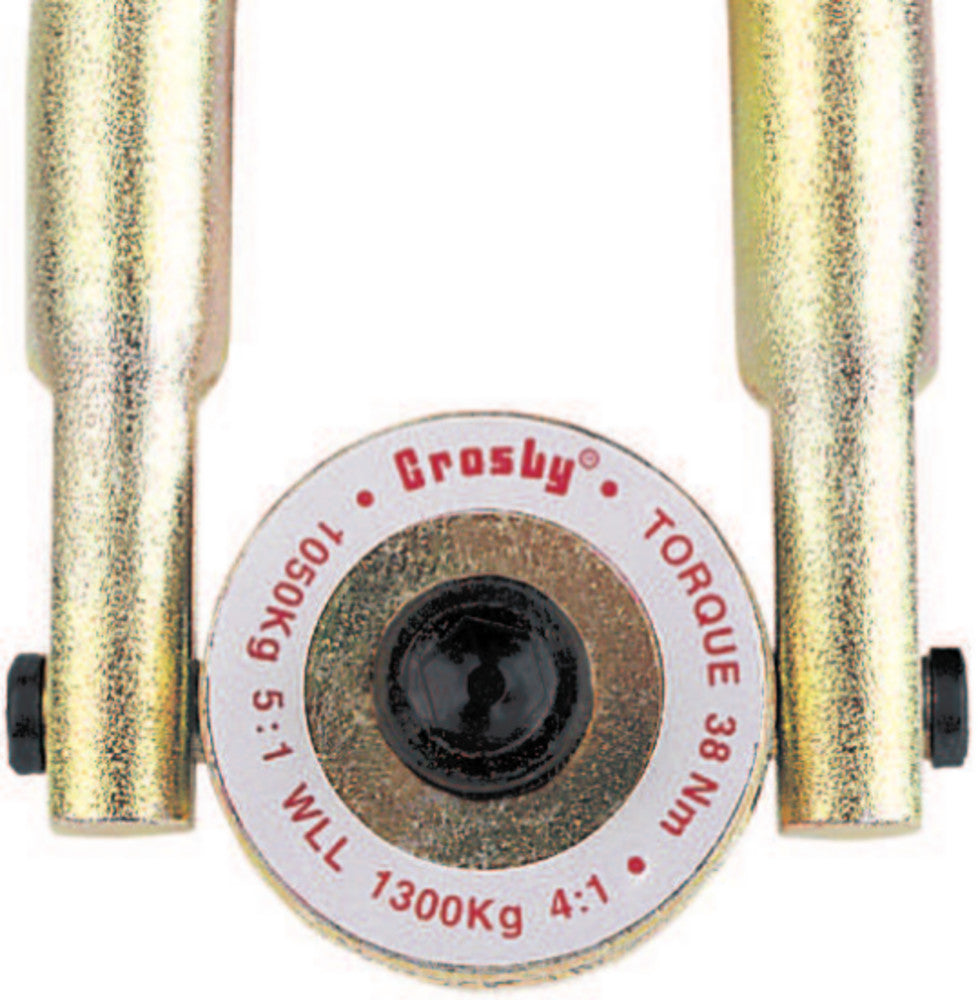

Top washer has the following features: The Working Load Limit and recommended torque value are permanently stamped into each washer. Washer is color-coded for easy identification: Silver - Metric thread. Individually Proof Tested to 2-1/2 times Working Load Limit. Bolt specification is a Grade 12.9 alloy socket head cap screw to DIN 912. All threads listed are metric (ASME B18.3.1m). Designed to be used with ferrous workpiece only. BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing above. Illustration shows meaning of each dimension given.
- BrandCrosby
- Hoist Ring Thread Size1.75X50 MM
- MaterialSteel
- SizeM12
- TypeHR-125M
- Working Load Limit2310 LBS
Description
Top washer has the following features: The Working Load Limit and recommended torque value are permanently stamped into each washer. Washer is color-coded for easy identification: Silver - Metric thread. Individually Proof Tested to 2-1/2 times Working Load Limit. Bolt specification is a Grade 12.9 alloy socket head cap screw to DIN 912. All threads listed are metric (ASME B18.3.1m). Designed to be used with ferrous workpiece only. BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing above. Illustration shows meaning of each dimension given.
