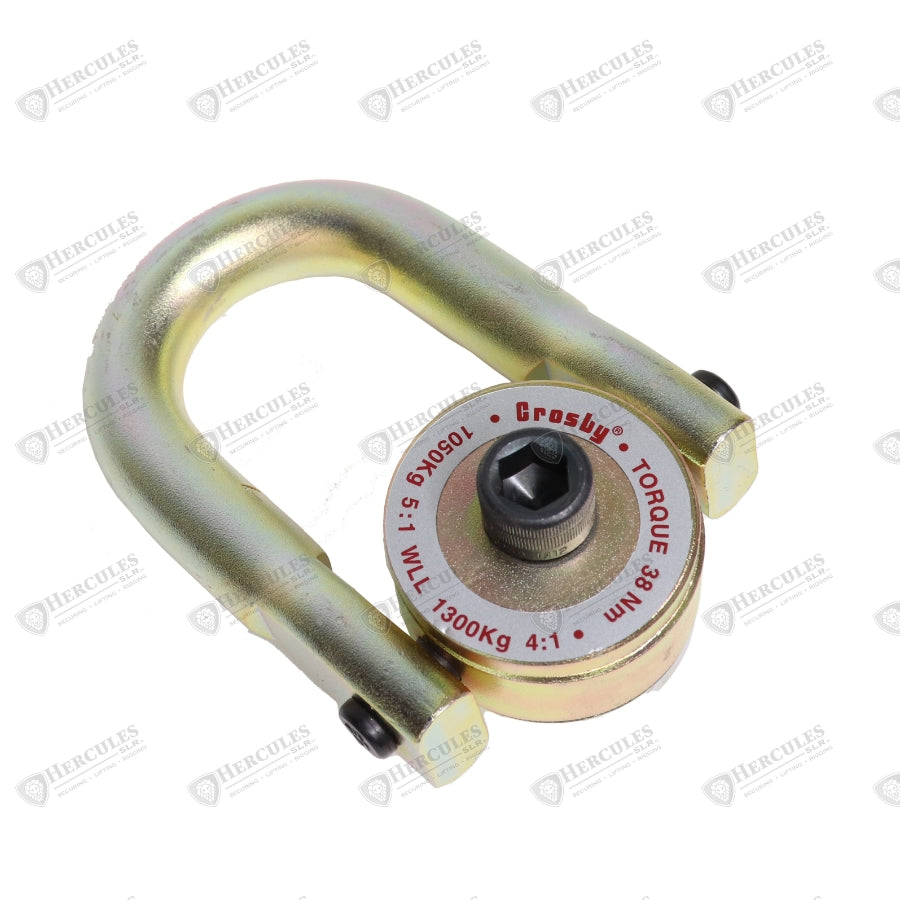

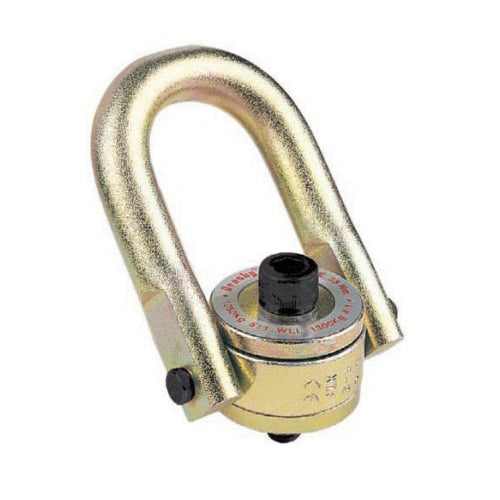

Crosby HR-125M Metric Thread Swivel Hoist Rings – M20 x 2.50 x 65

Product Description

Product Description:
Crosby HR-125M Metric Thread Swivel Hoist Rings are designed to provide a strong, adjustable lifting point for overhead lifting applications, allowing loads to rotate and align naturally during lifting operations. These hoist rings feature a 360° swivel and 180° pivot, eliminating side loading and improving safety compared to traditional eye bolts.
Built from quenched and tempered alloy steel, the HR-125M series delivers high strength and durability, making it ideal for industrial lifting, machinery handling, and fabrication applications.

Material:
Body: Alloy steel (quenched and tempered)
Bolt: High-strength alloy steel socket head cap screw
Finish: Typically black oxide or coated for corrosion resistance

Specifications:
Metric threaded design (M-series) for international applications
360° swivel and 180° pivot action for full load alignment
Rated at 100% Working Load Limit at 90° angle
Working Load Limit range: approx. 400 kg to 16,900 kg depending on size
5:1 design factor (ultimate strength = 5× WLL)
Individually proof tested to 2–2.5× WLL with certification
Fatigue rated for 20,000 cycles at 1.5× WLL
Designed to be used at full WLL within angular loading range

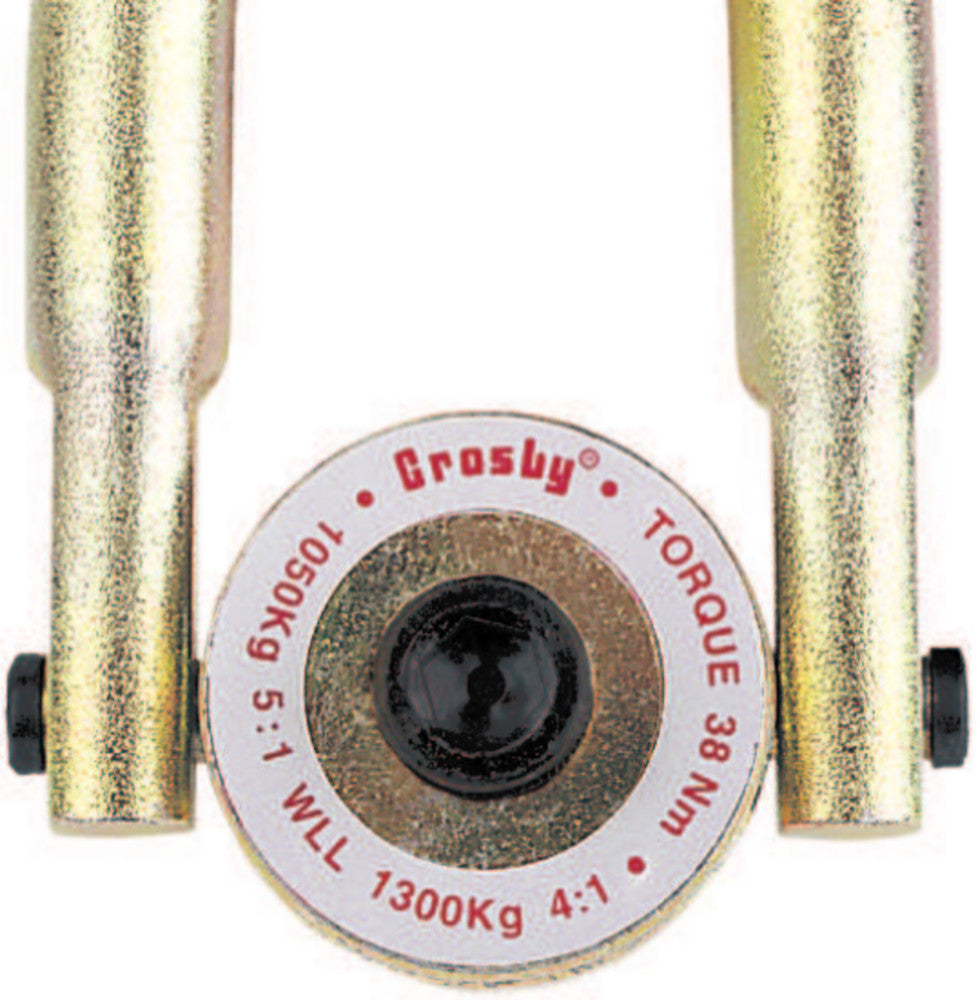

Each unit marked with:
Product Identification Code (PIC)
Working Load Limit
Manufacturer identification

Uses:
Machinery and equipment lifting
Tooling, dies, and mold handling
Fabrication and industrial lifting points
Applications requiring multi-directional load alignment

Key Features:
Swivel design – Rotates 360° and pivots for load alignment
High strength – Alloy steel construction for durability
Full-rated lifting – Maintains capacity at 90° angle
Proof tested – Certified for overhead lifting
Fatigue resistant – Built for repeated lifting cycles
Traceability – PIC marking for identification
