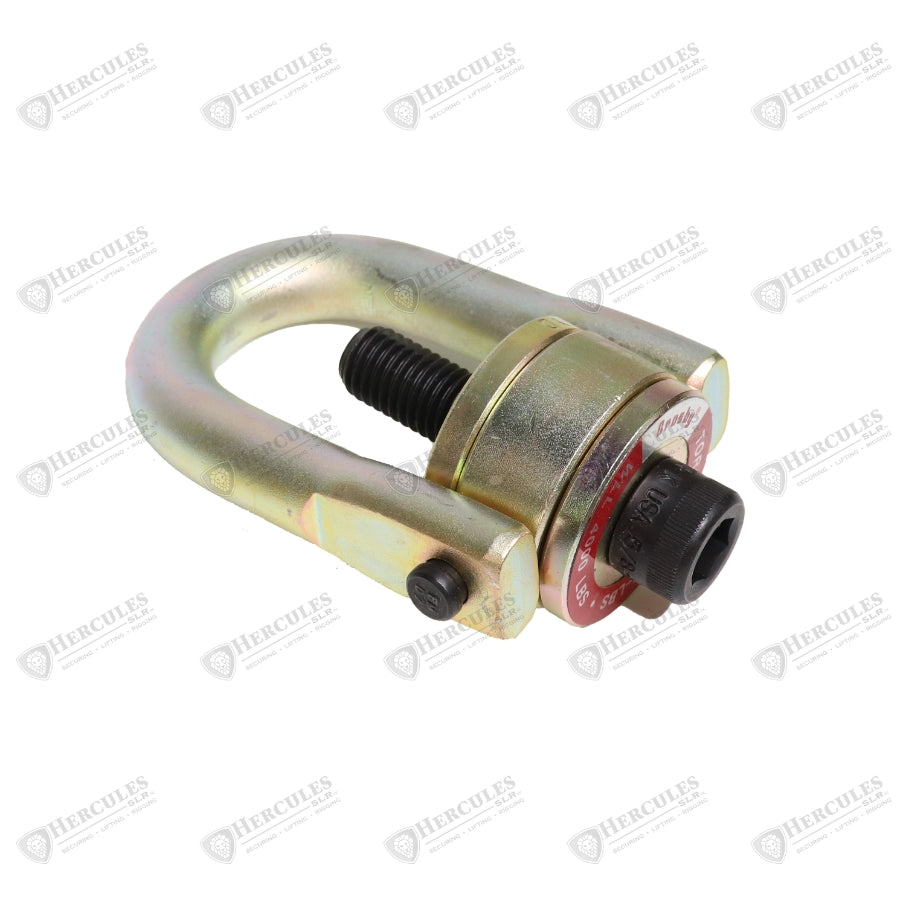

HOIST RING 5/8-11X2.00 SWIVEL

Name: HOIST RING 5/8-11X2.00 SWIVEL
Brand: Crosby
SKU: 1016920
Price: 421.74 CAD
Availability: InStock

SKU: Part #1016920

$421.74 CAD

Sale Low stock

Quantity

View full details

Product Description

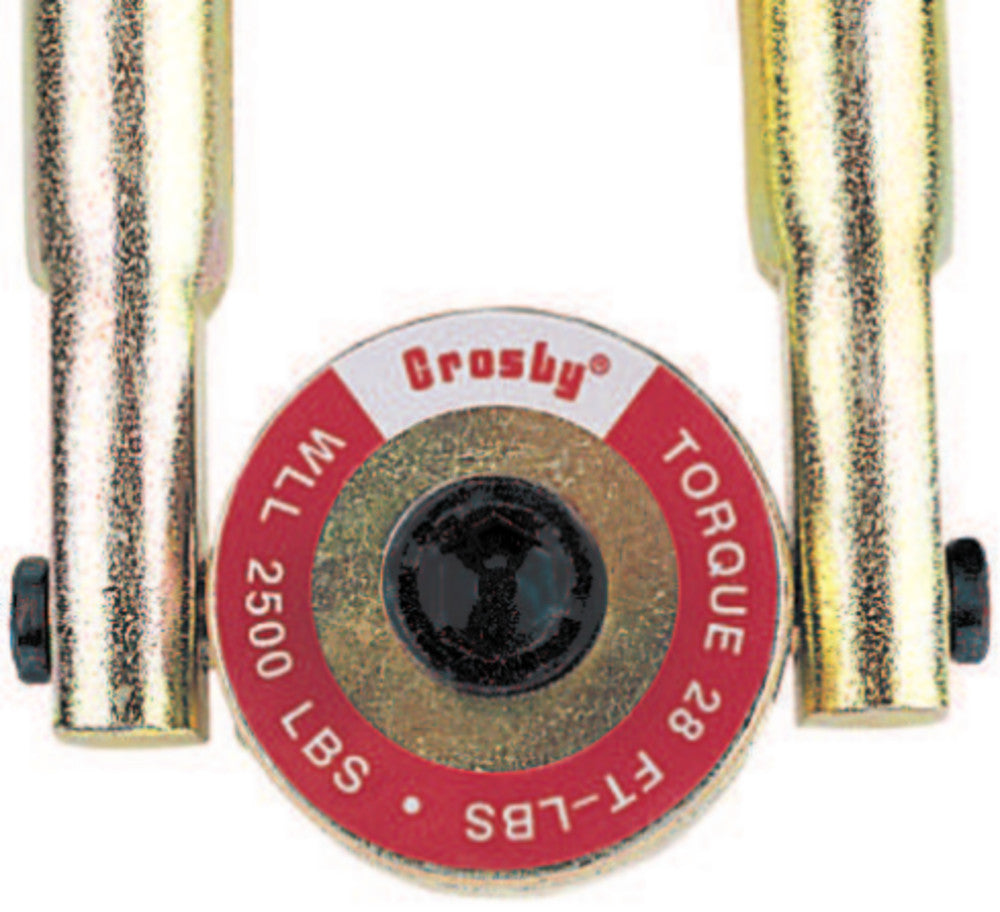

Top washer has the following features: The Working Load Limit and recommended torque value are permanently stamped into each washer. Washer is color-coded for easy identification: Red - UNC thread. Individually Proof Tested to 2-1/2 times Working Load Limit. Bolt specification is an alloy socket head cap screw to ASTM A 574. All threads listed are UNC. BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing above. Illustration shows meaning of each dimension given.

Specification	Value
Working Load Limit	4000 LBS
Type	HR-125
Size	5/8"
Material	Steel
Hoist Ring Thread Size	11 x 2"
Certification Standard	Bolt specification is an alloy socket head cap screw to ASTM A 574.
