Name: G-209 Screw Pin Anchor Shackles
Brand: Crosby
SKU: 1018357
Price: 13.00 CAD
Availability: InStock

Product Description

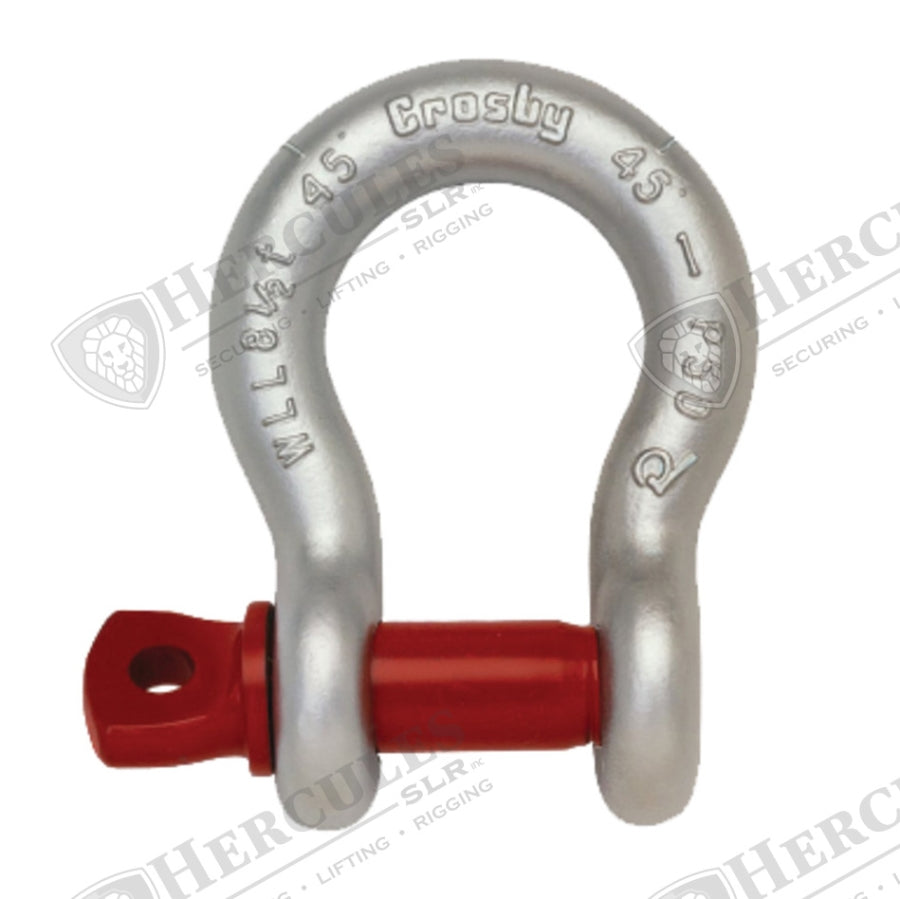

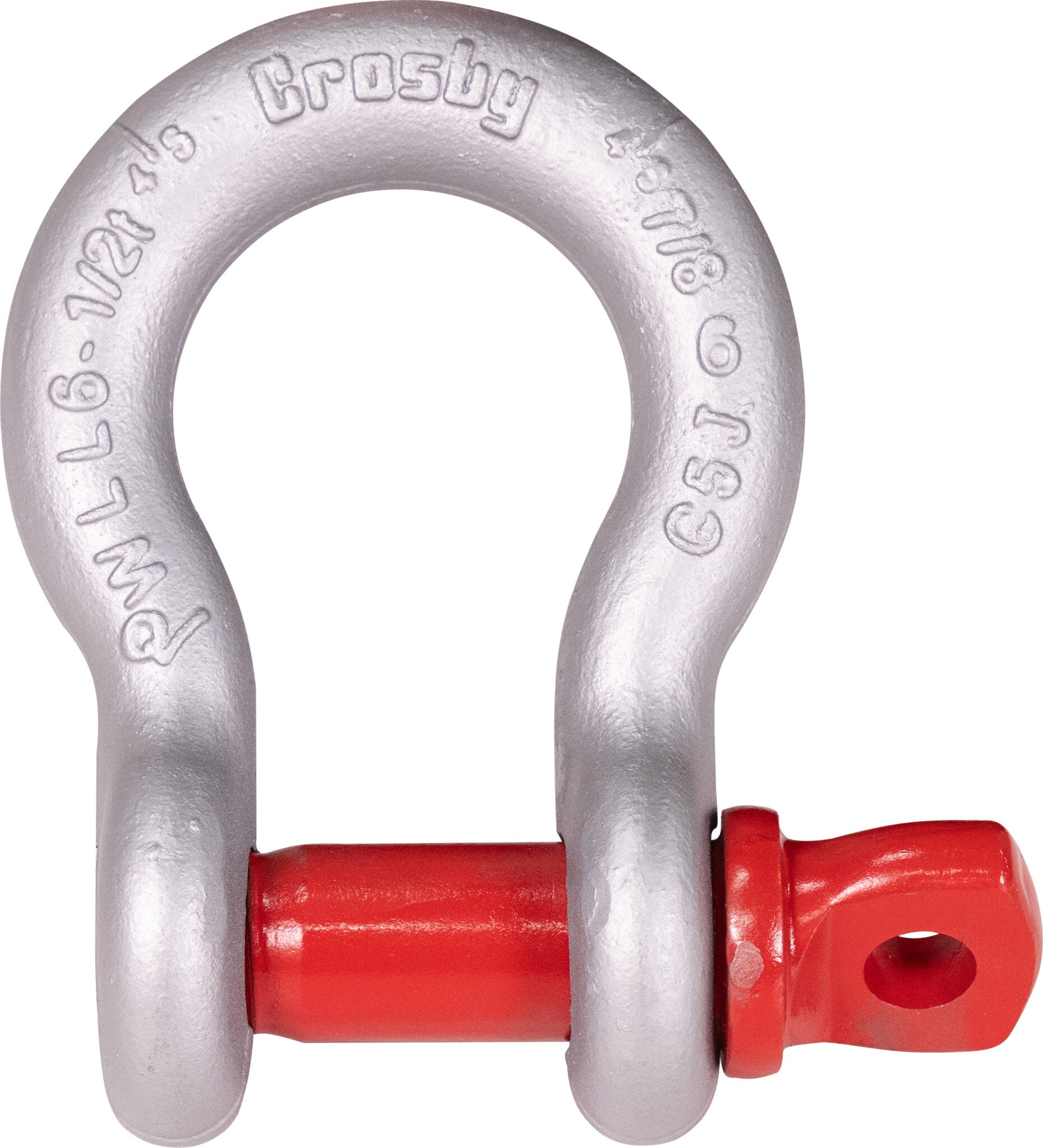

Crosby G-209 screw pin anchor shackles are high-strength, forged steel lifting components designed for general rigging and lifting applications. They are quenched and tempered with alloy pins, feature a permanently marked working load limit, and are available in capacities from 1/3 to 55 metric tons with either galvanized or self-colored finishes.

Material:
Body: Forged carbon steel
Pin: Alloy steel
- Sizes 7/16 inch and above are hot dip galvanized. With Alloy Pin
- Sizes 3/8 inch and below are mechanically galvanized. With Alloy Pin

Specifications:
- Meets the performance requirements of Federal Specification RR-C-271G, Type IVA, Grade A, Class 2, except for those provisions required of the contractor.
- Maximum Proof Load is 2 times the Working Load Limit.
- Minimum Ultimate Strength is 6 times the Working Load Limit. - Shown on every Shackle

Uses:
- General Lifting & Rigging
- Overhead Lifting
- Material Handling
- Towing & Recovery

Key Features:
High strength construction – Forged, quenched, and tempered body with alloy steel pin for durability
Quick and easy use – Screw pin allows fast installation and removal (ideal for temporary setups)

Nominal Size (in)	Working Load Limit (tons)	G-209 Galvanized Stock No.	S-209 Self-Colored Stock No.	Weight Each (lb)	Throat Opening (in)	Throat Opening Tolerance ± (in)	Pin Diameter (in)	Inside Length (in)	Inside Length Tolerance ± (in)	Body Diameter (in)	Inside Width (in)	Eye Outside Width (in)	Bow Outside Width (in)	Overall Length (in)	Pin Head Projection (in)	Overall Width with Pin (in)	Bow Crown Thickness (in)	Replacement Pin Stock No.
3/16	1/3	1018357	—	0.06	0.38	0.06	0.25	0.88	0.06	0.19	0.60	0.56	0.98	1.47	0.16	1.14	0.19	—
1/4	1/2	1018375	1018384	0.10	0.47	0.06	0.32	1.13	0.06	0.25	0.78	0.62	1.28	1.84	0.19	1.43	0.25	—
5/16	3/4	1018393	1018400	0.18	0.53	0.06	0.38	1.21	0.06	0.31	0.84	0.75	1.46	2.09	0.22	1.71	0.31	—
3/8	1	1018419	1018428	0.31	0.66	0.06	0.44	1.45	0.13	0.38	1.03	0.92	1.79	2.50	0.25	2.06	0.38	—
7/16	1-1/2	1018437	1018446	0.38	0.75	0.06	0.50	1.69	0.13	0.44	1.16	1.06	2.04	2.91	0.31	2.37	0.44	—
1/2	2	1018455	1018464	0.72	0.81	0.06	0.63	1.88	0.13	0.50	1.31	1.18	2.31	3.28	0.38	2.69	0.50	—
5/8	3-1/4	1018473	1018482	1.37	1.06	0.06	0.75	2.38	0.13	0.62	1.69	1.50	2.93	4.19	0.44	3.34	0.69	—
3/4	4-3/4	1018491	1018507	2.35	1.25	0.06	0.88	2.81	0.25	0.75	2.00	1.81	3.50	4.97	0.50	3.97	0.81	—
7/8	6-1/2	1018516	1018525	3.62	1.44	0.06	1.00	3.31	0.25	0.88	2.28	2.10	4.04	5.83	0.50	4.50	0.97	—
1	8-1/2	1018534	1018543	5.03	1.69	0.06	1.16	3.76	0.25	1.00	2.69	2.38	4.69	6.56	0.56	5.13	1.06	—
1-1/8	9-1/2	1018552	1018561	7.41	1.81	0.06	1.25	4.27	0.25	1.16	2.91	2.68	5.15	7.47	0.63	5.97	1.25	1082599
1-1/4	12	1018570	1018589	9.50	2.03	0.06	1.41	4.69	0.25	1.29	3.26	3.00	5.76	8.26	0.69	6.50	1.38	1082615
1-3/8	13-1/2	1018598	1018605	13.53	2.25	0.13	1.56	5.22	0.25	1.42	3.62	3.31	6.38	9.16	0.75	6.93	1.50	1082633
1-1/2	17	1018614	1018623	17.20	2.38	0.13	1.66	5.76	0.25	1.53	3.88	3.62	6.94	10.00	0.81	7.43	1.62	1082651
1-3/4	25	1018632	1018641	30.90	2.88	0.13	2.03	7.00	0.25	1.84	5.00	4.19	8.80	12.34	1.00	9.19	2.25	1082679
2	35	1018650	1018669	45.00	3.25	0.13	2.28	7.75	0.25	2.08	5.75	4.81	10.15	13.68	1.13	10.36	2.40	1082697
2-1/2	55	1018678	1018687	85.75	4.12	0.25	2.78	10.51	0.25	2.72	7.25	5.81	12.75	17.92	1.38	13.17	3.13	1082713

Design Factor: 6:1

Proof Load: Maximum proof load is 2 times the Working Load Limit.

Specification	Value
Eye Outer Size	2.38in
Inner Length	3-3/4in
Inner Width	2.69in
Opening Size	1.69in
Overall Length	6.56in
Pin Diameter	1.13in
Pin Material	Alloy
Pin Type	Screw
Overall Width	5.13in
Series	G-209
