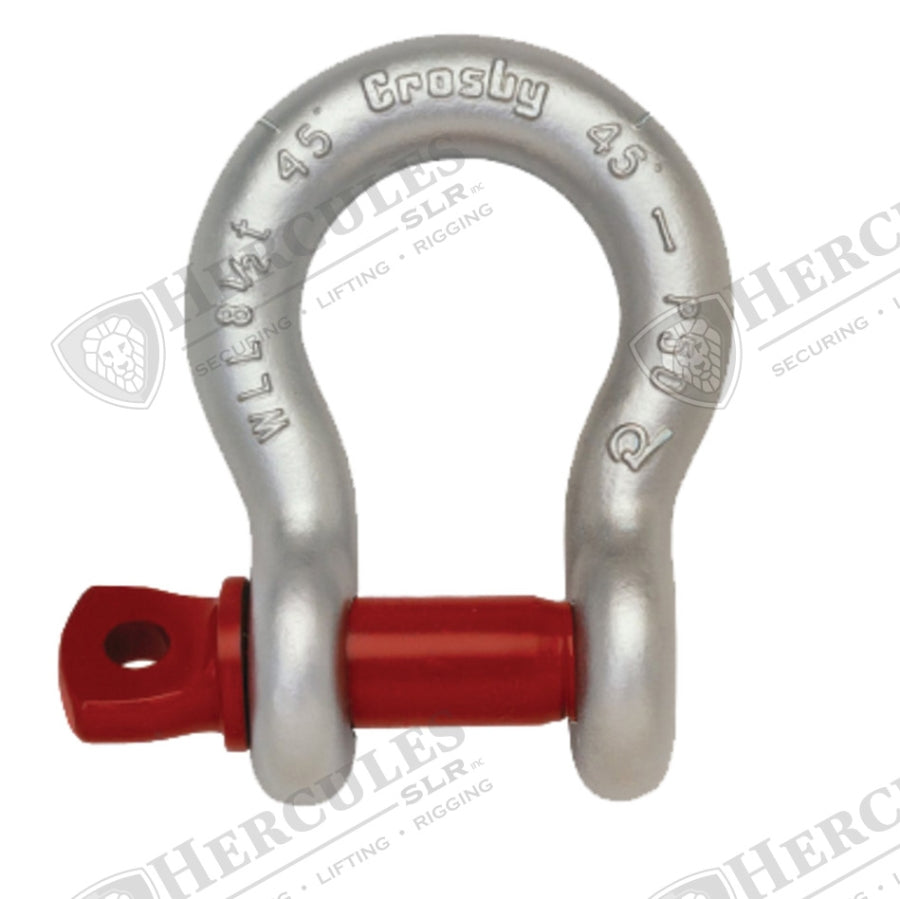

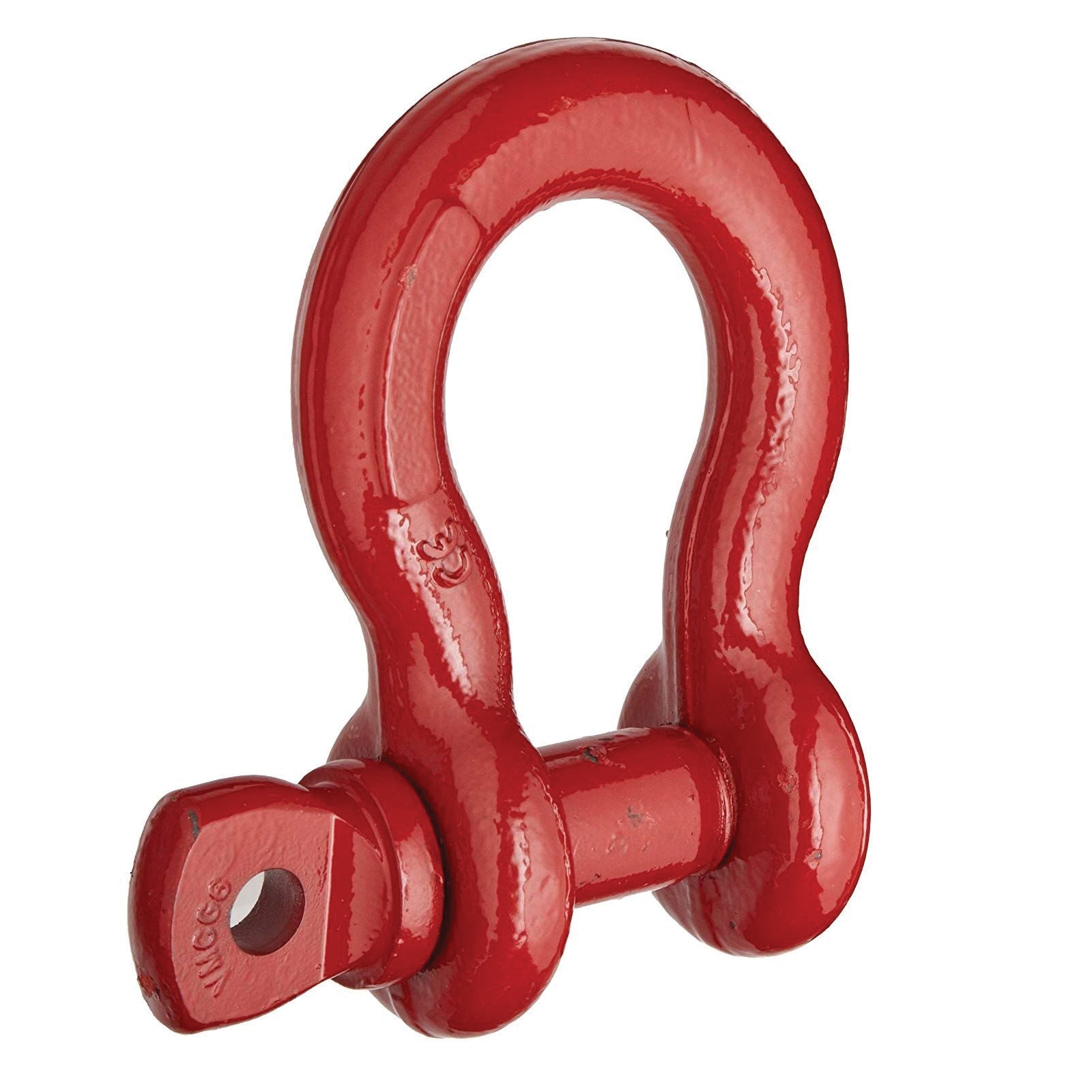

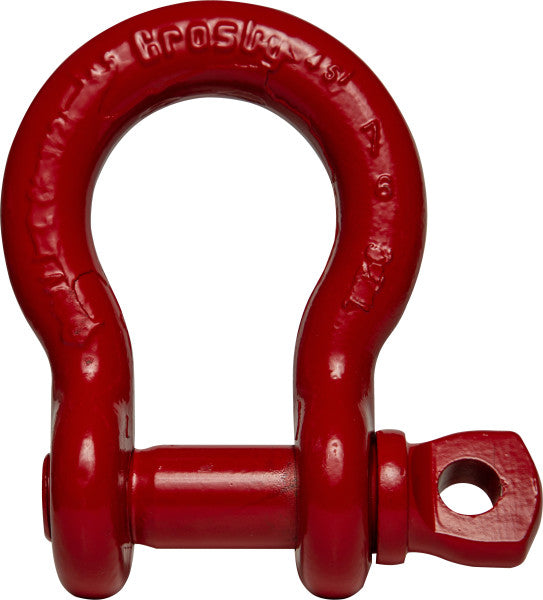

Crosby S-209 Screw Pin Anchor Shackles - 1-1/8 in with 1-1/4 in Pin

Product Description

Product Description:
Crosby G-209 / S-209 screw pin anchor shackles are high-strength, forged steel lifting components designed for general rigging and lifting applications. They are quenched and tempered with alloy pins, feature a permanently marked working load limit, and are available in capacities from 1/3 to 55 metric tons with either galvanized or self-colored finishes.

Material:
Body: Forged carbon steel
Pin: Alloy steel
- Sizes 7/16 inch and above are hot dip galvanized.
- Sizes 3/8 inch and below are mechanically galvanized.

Specifications:
- Meets the performance requirements of Federal Specification RR-C-271G, Type IVA, Grade A, Class 2, except for those provisions required of the contractor.
- Maximum Proof Load is 2 times the Working Load Limit. Minimum Ultimate Strength is 6 times the Working Load Limit.

Uses:
- General Lifting & Rigging
- Overhead Lifting
- Material Handling
- Towing & Recovery

Key Features:
High strength construction – Forged, quenched, and tempered body with alloy steel pin for durability
Quick and easy use – Screw pin allows fast installation and removal (ideal for temporary setups)
