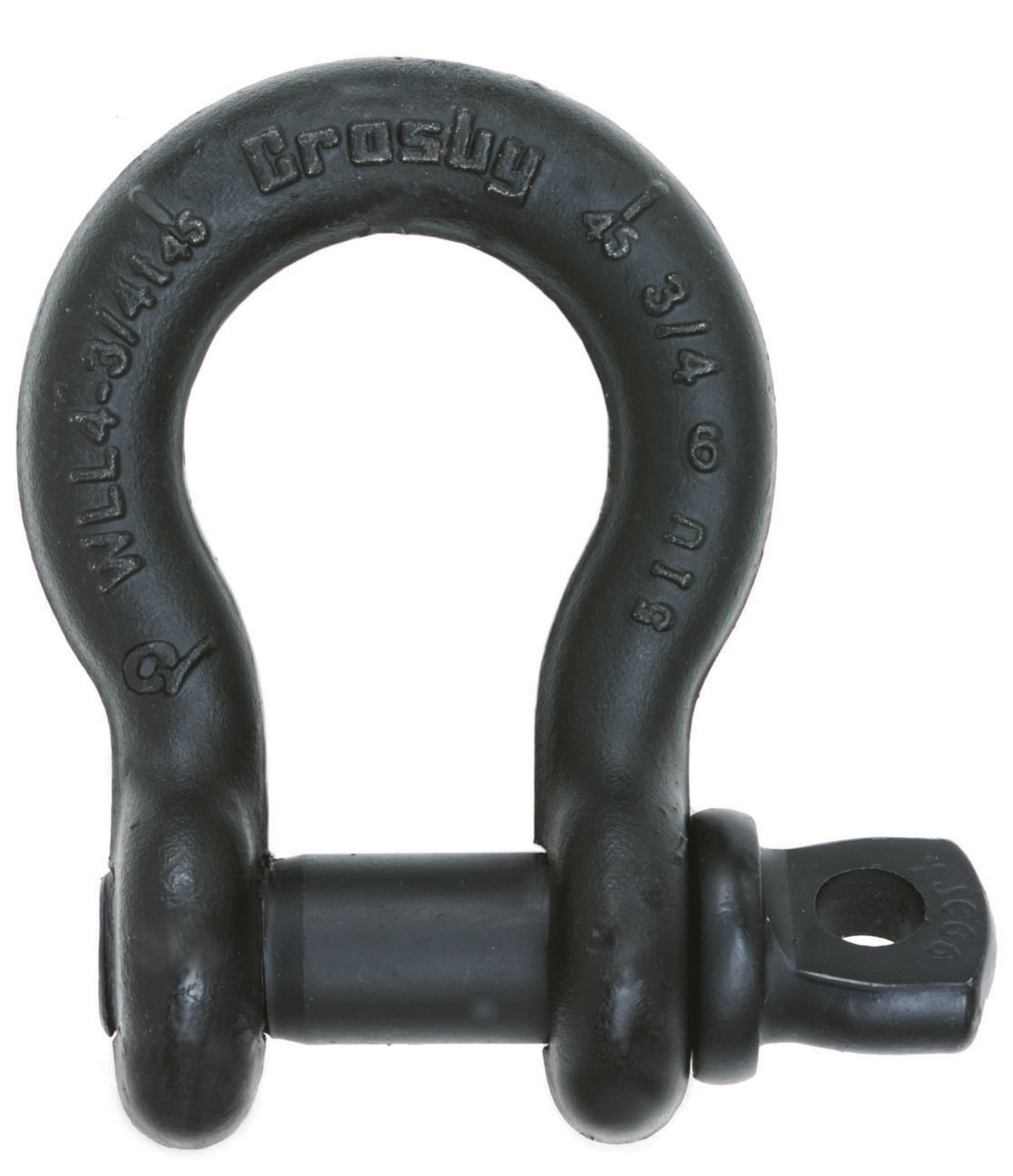

Crosby S-209T Theatrical Shackles - 5/8 in with 3/4 in Pin

Product Description

Product Description:
Crosby S-209T theatrical shackles are specialized lifting components designed for stage, studio, and entertainment rigging applications where both performance and appearance are critical. Featuring a screw pin configuration, these shackles allow quick installation and removal while maintaining reliable load control.
Manufactured from forged steel and quenched and tempered with alloy pins, these shackles deliver high strength and durability. A flat black baked-on powder coat finish reduces light reflection, allowing the hardware to blend into stage environments without distracting from performances.

Material:
Body: Forged carbon steel
Pin: Alloy steel
Quenched and tempered for enhanced durability
Flat black powder coat finish for low visibility

Specifications:
Meets or exceeds ASME B30.26 requirements
Conforms to Federal Specification RR-C-271, Type A, Grade A, Class 2
Meets EN 13889:2003 standards
Proof Load: 2x Working Load Limit
Ultimate Strength: 6x Working Load Limit
Design Factor: 6:1
Fatigue rated for repeated load cycles
Available in sizes 3/8" to 3/4" (1T to 4-3/4T)
Working Load Limit permanently marked on each shackle

Uses:
Stage and theatrical rigging
Entertainment and production setups
Studio lighting and equipment suspension
Film and broadcast rigging
Temporary lifting and rigging connections

Key Features:
Low-visibility finish – Flat black coating prevents light reflection
High strength construction – Forged, quenched, and tempered
Quick installation – Screw pin allows fast setup and removal
Fatigue rated – Designed for repeated dynamic loading
Marked WLL – Ensures safety and traceability
Industry compliant – Meets major rigging standards
