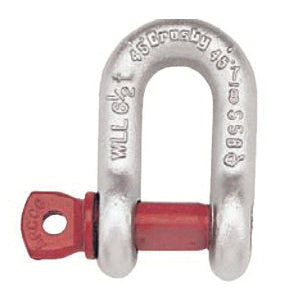

Crosby S-210 Screw Pin Chain Shackles - 1-1/2 in with 1-5/8 in Pin

Product Description

Product Description:
Crosby S-210 screw pin chain shackles are high-strength, straight-side lifting components designed for in-line rigging and chain applications. Their narrow profile makes them ideal for straight-line pulls where space is limited.
Manufactured from forged steel and quenched and tempered for durability, these shackles feature alloy pins and are permanently marked with working load limits for safety and traceability. Available in a wide range of capacities, they are offered in both galvanized and self-colored finishes for use in various environments.

Material:
Body: Forged carbon steel
Pin: Alloy steel
- Sizes 7/16 inch and above are hot dip galvanized
- Sizes 3/8 inch and below are mechanically galvanized

Specifications:
- Meets the performance requirements of Federal Specification RR-C-271G, Type IVB, Grade A, Class 2
- Maximum Proof Load is 2 times the Working Load Limit
- Minimum Ultimate Strength is 6 times the Working Load Limit
- Available in capacities from 1/2 to 55 metric tons (Grade 6)
- Fatigue rated for repeated load cycles

Uses:
- Chain and in-line lifting applications
- Straight-line rigging connections
- Material handling
- Construction and industrial lifting
- Temporary lifting setups requiring quick connection

Key Features:
Straight-side design – Ideal for in-line and chain applications with limited space
High strength construction – Forged, quenched, and tempered for durability
Quick and easy use – Screw pin allows fast installation and removal
Marked WLL – Permanently stamped for safety and traceability
Corrosion resistant – Available in galvanized or self-colored finishes
Fatigue rated – Designed for repeated loading cycles
