Name: G-2130 Bolt Type Anchor Shackles
Brand: Crosby
SKU: 1019464
Price: 17.59 CAD
Availability: InStock

Product Description

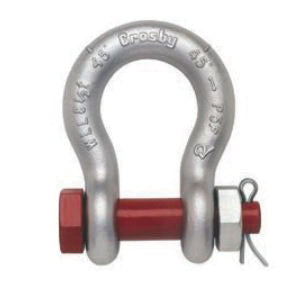

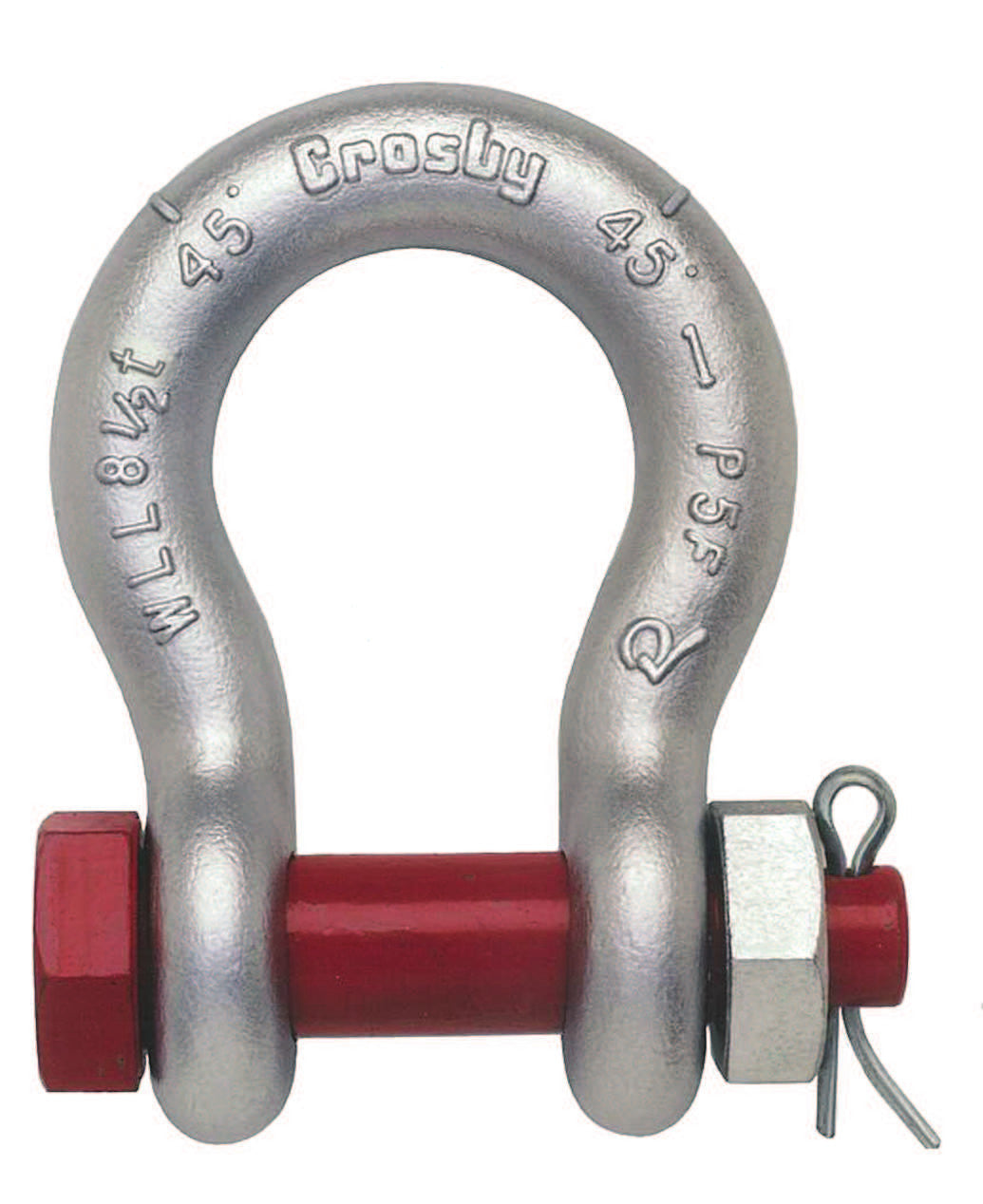

Crosby G-2130 bolt type anchor shackles are heavy-duty lifting components designed for secure, long-term rigging applications. Featuring a bolt, nut, and cotter pin assembly, these shackles provide enhanced safety by preventing accidental loosening in applications subject to vibration or movement.
Manufactured from forged steel and quenched and tempered for superior strength, these shackles are built for demanding environments. Each unit is permanently marked with its Working Load Limit (WLL) and Grade 6 rating for safety and traceability, and is available in galvanized or self-colored finishes.

Material:
Body: Forged carbon steel
Bolt, Nut & Cotter Pin: Alloy steel
• Sizes 7/16 inch and above are hot dip galvanized
• Sizes 3/8 inch and below are mechanically galvanized

Specifications:
• Meets or exceeds ASME B30.26 requirements
• Conforms to Federal Specification RR-C-271G, Type IVA, Grade A, Class 3
• Proof Load: 2x Working Load Limit
• Ultimate Strength: 6x Working Load Limit
• Fatigue rated (1/3t – 55t, up to 20,000 cycles)
• Operating temperature range: -40°C to 204°C
• Larger sizes (85T+) individually proof tested and certified

Uses:
• Permanent or long-term rigging connections
• Overhead lifting and hoisting applications
• Construction and heavy equipment lifting
• Marine and offshore operations
• Industrial material handling

Key Features:
Secure bolt-type design – Prevents accidental loosening under vibration
High strength construction – Forged, quenched, and tempered for durability
Wide capacity range – Available from 1/3 to 150 metric tons
Fatigue rated – Suitable for repeated loading cycles
Corrosion resistant – Available in galvanized or self-colored finishes
Certified performance – Meets major industry standards

Nominal Size (in)	Working Load Limit (tons)	G-2130 Galvanized Stock No.	S-2130 Self-Colored Stock No.	G-2130OC Offshore Container Stock No.	Weight Each (lb)	Inside Width at Pin (in)	Inside Width Tolerance ± (in)	Pin Diameter (in)	Inside Length (in)	Inside Length Tolerance ± (in)	Bow Diameter (in)	Inside Width at Top of Bow (in)	Eye Width (in)	Outside Width at Top of Bow (in)	Overall Height (in)	Outside Width at Pin (in)	Bow Thickness at Crown (in)	Replacement Round Pin Stock No.
3/16	1/3	1019464	—	—	0.06	0.38	0.06	0.25	0.88	0.06	0.19	0.60	0.56	0.98	1.47	1.29	0.19	—
1/4	1/2	1019466	—	—	0.11	0.47	0.06	0.32	1.13	0.06	0.25	0.78	0.62	1.28	1.84	1.56	0.25	—
5/16	3/4	1019468	—	—	0.22	0.53	0.06	0.38	1.21	0.06	0.31	0.84	0.75	1.46	2.09	1.82	0.31	—
3/8	1	1019470	—	—	0.33	0.66	0.06	0.44	1.45	0.13	0.38	1.03	0.92	1.79	2.50	2.17	0.38	—
7/16	1-1/2	1019471	—	—	0.49	0.75	0.06	0.50	1.69	0.13	0.44	1.16	1.06	2.04	2.91	2.51	0.44	—
1/2	2	1019472	1019481	—	0.79	0.81	0.06	0.64	1.88	0.13	0.50	1.31	1.18	2.31	3.28	2.80	0.50	—
5/8	3-1/4	1019490	1019506	1262013	1.68	1.06	0.06	0.77	2.38	0.13	0.62	1.69	1.50	2.93	4.19	3.56	0.69	—
3/4	4-3/4	1019515	1019524	1262022	2.72	1.25	0.06	0.90	2.81	0.25	0.75	2.00	1.81	3.50	4.97	4.15	0.81	—
7/8	6-1/2	1019533	1019542	1262031	3.95	1.44	0.06	1.02	3.31	0.25	0.88	2.28	2.10	4.04	5.83	4.82	0.97	—
1	8-1/2	1019551	1019560	1262040	5.66	1.69	0.06	1.15	3.76	0.25	1.00	2.69	2.38	4.69	6.56	5.39	1.06	—
1-1/8	9-1/2	1019579	1019588	1262059	8.27	1.81	0.06	1.25	4.27	0.25	1.16	2.91	2.68	5.15	7.47	5.90	1.25	1082839
1-1/4	12	1019597	1019604	1262068	11.71	2.03	0.06	1.41	4.69	0.25	1.29	3.26	3.00	5.76	8.26	6.69	1.38	1082857
1-3/8	13-1/2	1019613	1019622	1262077	15.83	2.25	0.13	1.53	5.22	0.25	1.42	3.62	3.31	6.38	9.16	7.21	1.50	1082875
1-1/2	17	1019631	1019640	1262086	19.00	2.38	0.13	1.66	5.76	0.25	1.53	3.88	3.62	6.94	10.00	7.73	1.62	1082893
1-3/4	25	1019659	1019668	1262095	33.91	2.88	0.13	2.03	7.00	0.25	1.84	5.00	4.19	8.84	12.34	9.63	2.25	1082919
2	35	1019677	1019686	—	52.25	3.25	0.13	2.31	7.75	0.25	2.08	5.75	4.81	10.15	13.68	10.77	2.40	1082937
2-1/2	55	1019695	1019702	—	102.00	4.12	0.25	2.81	10.50	0.25	2.71	7.24	5.81	12.75	17.90	13.53	3.13	1082955
3	85	1019711	—	—	157.00	5.00	0.25	3.30	13.00	0.25	3.12	7.88	6.50	14.62	21.50	15.13	3.63	1084449
3-1/2	120	1019739	—	—	265	5.25	0.25	3.76	14.62	0.25	3.63	9.02	8.00	17.00	24.88	17.00	4.38	1084452
4	150	1019757	—	—	338	5.50	0.25	4.26	14.50	0.25	4.00	10.00	9.00	18.00	25.68	18.00	4.56	1084456

Design Factor: 6:1

Proof Load: Maximum proof load is 2 times the Working Load Limit.

Specification	Value
Body Material	Carbon Steel
Eye Outer Size	2.38in
Inner Length	3-3/4in
Inner Width	2.69in
Opening Size	1.69in
Overall Length	6.56in
Pin Diameter	1.15in
Pin Type	Bolt
Overall Width	5.39in
Finish	Hot Dipped Galvanized
