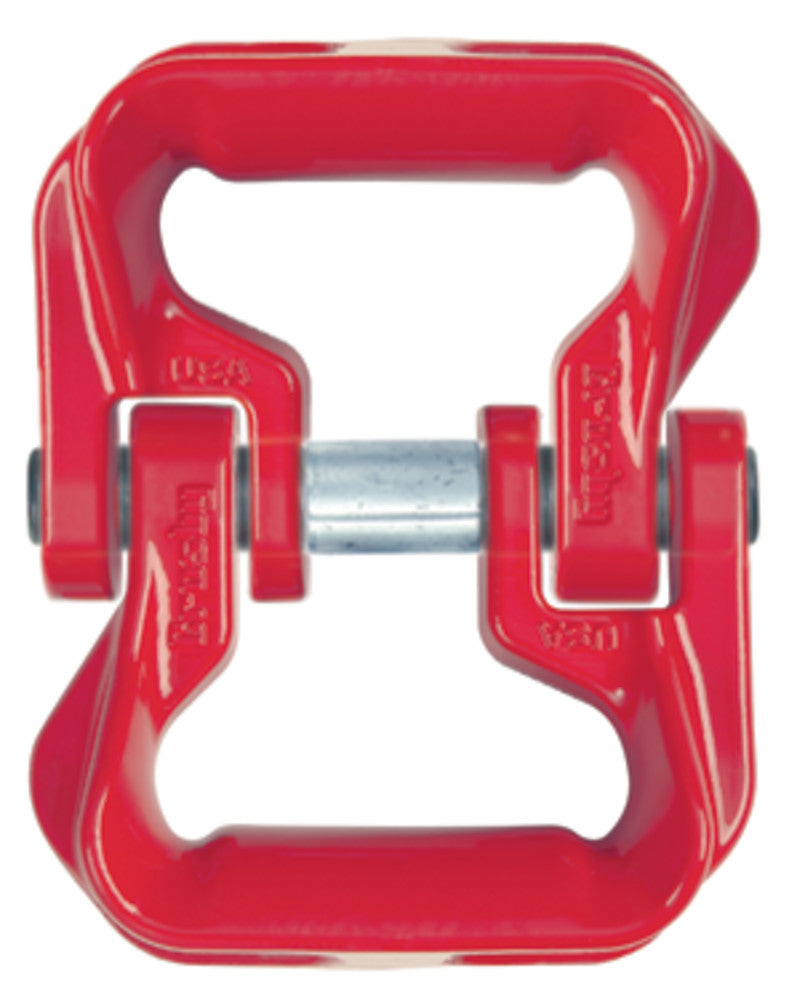

S-238 High Performance Sling Connector - Frame No. 10

Name: S-238 High Performance Sling Connector - Frame No. 10
Brand: Crosby
SKU: 1020415
Price: 380.18 CAD
Availability: OutOfStock

SKU: Part #1020415

$380.18 CAD

Sale Low stock

Frame No. 5 10 15 25 30 40 60

Quantity

View full details

Product Description

Crosby S-238 High Performance Sling Connectors are designed for joining synthetic slings together, such as round slings and web slings, to create longer or custom sling assemblies. These connectors provide a safe and efficient alternative to knots or makeshift connections, ensuring full load capacity is maintained.
Engineered with a wide bearing surface and smooth profile, the S-238 minimizes wear and stress on sling fibers, helping extend sling life while maintaining optimal lifting performance.

Material:
Body: Forged alloy steel
Construction: All-alloy design for high strength and durability

Specifications:
Designed for synthetic sling-to-sling connections (web & round slings)
Provides large contact surface to reduce sling wear
Allows 100% utilization of sling Working Load Limit (WLL)
Working Load Limit range: approx. 5,000 lb to 60,000 lb
Compatible sling widths: approx. 2" to 6" (varies by size)
5:1 design factor (ultimate strength = 5× WLL)
Individually proof tested to 2–2.5× WLL with certification
Smooth radius design for fiber protection and longevity
Each connector marked with Product Identification Code (PIC) for traceability
Meets WSTDA standards for synthetic sling hardware

Uses:
Joining two synthetic slings together
Extending sling length for lifting operations
Creating custom sling configurations
Industrial lifting and rigging applications

Key Features:
Sling-to-sling connection – Designed specifically for joining slings
Enhanced protection – Smooth surface reduces fiber damage
High efficiency – Maintains full sling load capacity
Durable construction – Forged alloy steel design
Versatile use – Works with round and web slings
Proof tested – Certified for lifting applications
Traceability – PIC code for identification

Working Load Limit (lb)	Stock No.	Frame No.	Nominal Sling Body Width (in)	Weight Each (lb)	Dimension A (in)	Dimension B (in)	Dimension C (in)	Dimension E (in)	Dimension G (in)	Dimension H (in)	Dimension K (in)	Dimension M (in)	Dimension W (in)
5,000	1020415	5	2	1.6	0.88	1.42	2.00	3.18	1.00	0.80	4.90	3.30	1.38
10,000	1020423	10	3	3.3	1.42	1.52	2.75	4.13	1.25	0.98	5.72	3.76	1.75
15,000	1020432	15	3	4.9	1.63	1.58	2.75	4.37	1.38	1.10	6.16	3.96	1.88
25,000	1020441	25	4	10.1	2.00	2.33	3.75	6.00	1.75	1.41	8.40	5.58	2.25
30,000	1020450	30	4	11.4	2.00	2.20	3.75	6.19	1.75	1.41	8.14	5.32	2.38
40,000	1020469	40	5	20.7	2.25	2.91	4.75	7.25	2.25	1.78	10.48	6.92	3.09
60,000	1020478	60	6	32.0	2.56	3.36	5.75	9.13	2.31	1.86	11.72	8.00	3.16
