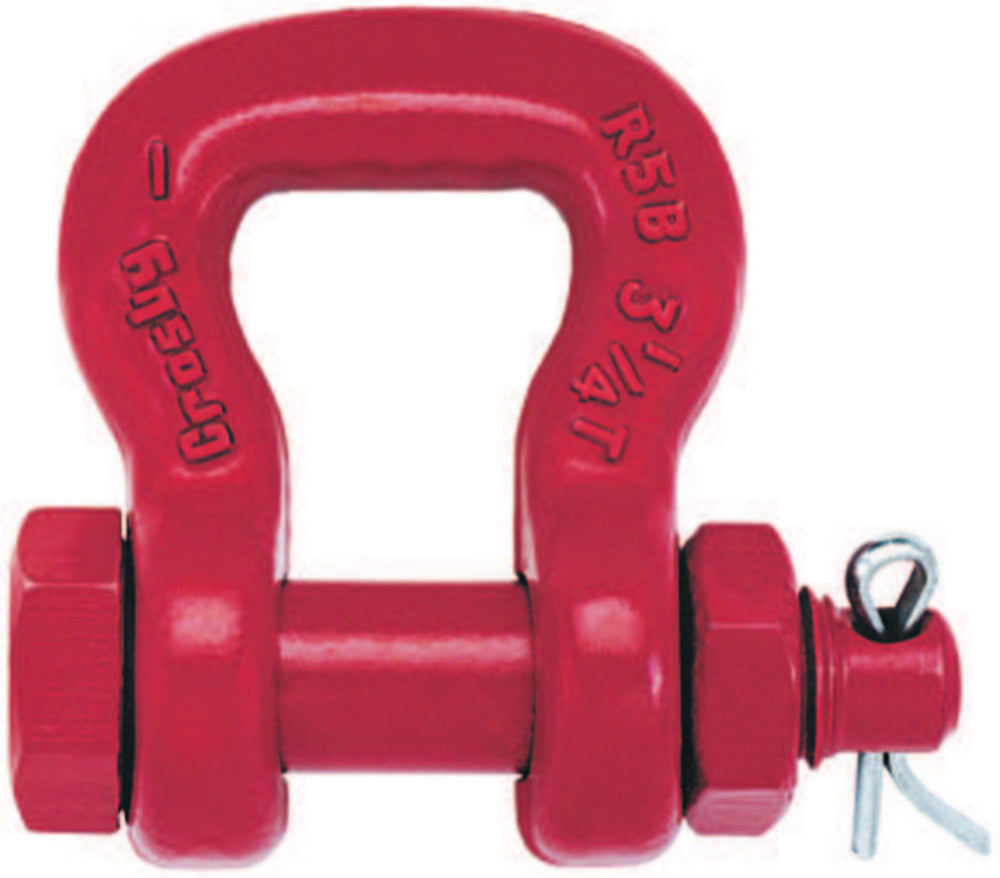

S-252 Bolt Type Sling Shackle

Name: S-252 Bolt Type Sling Shackle
Brand: Crosby
SKU: 1020485
Price: 108.67 CAD
Availability: InStock

SKU: Part #1020485

$108.67 CAD

Sale Low stock

Web Sling Eye Width 1" 1-1/2" 2" 3" 4" 5" 6"

Quantity

View full details

Product Description

Crosby S-252 bolt type sling shackles are specialized lifting components designed for use with synthetic web slings and round slings. Featuring a wide bow design, these shackles provide increased bearing surface to improve load distribution and reduce wear on sling material.
Engineered as part of Crosby’s Sling Saver® system, these shackles allow synthetic slings to achieve full working load capacity while maintaining a secure connection. The bolt, nut, and cotter pin configuration ensures reliable performance in demanding lifting and rigging applications.

Material:
Body: Forged alloy steel
Bolt, Nut & Cotter Pin: Alloy steel
All alloy construction for strength and durability
Designed to improve sling performance and longevity

Specifications:
Meets or exceeds ASME B30.26 requirements
Conforms to WSTDA-RS1 standards for synthetic slings
Design Factor: 5:1
Proof Load: 2x Working Load Limit
Each shackle includes Product Identification Code (PIC) for traceability
Designed for use with synthetic web and round slings

Uses:
Synthetic web sling connections
Round sling lifting applications
Rigging with pad eyes, lugs, and eyebolts
Industrial and construction lifting
Applications requiring secure, long-term connections

Key Features:
Sling Saver® design – Wide bow reduces sling wear
Improved efficiency – Allows full sling Working Load Limit
Secure bolt-type design – Prevents loosening under load
High strength construction – Forged alloy steel
Enhanced load distribution – Protects sling fibers
Traceability – PIC and WLL markings for safety

Web Sling Eye Width (in)	Round Sling Size (No.)	Working Load Limit (t)	Stock No.	Weight Each (lb)	Dimension A (in)	Dimension B (in)	Dimension C (in)	Dimension D (in)	Dimension E (in)	Dimension F (in)	Dimension G (in)	Dimension H (in)	Dimension J (in)	Dimension K (in)	Dimension L (in)	Dimension M (in)
1	1 & 2	3.25	1020485	1.4	1.06	0.58	1.38	0.75	1.50	0.44	3.38	3.68	1.12	1.50	0.75	2.69
1.5	3 & 4	6.5	1020496	2.4	1.25	0.75	1.75	0.88	1.88	0.50	4.15	4.25	1.31	1.81	1.00	3.38
2	5 & 6	8.75	1020507	4.1	1.38	0.88	2.25	1.00	2.81	0.56	5.50	4.72	1.50	2.09	1.12	4.19
3	7 & 8	12.5	1020518	8.0	1.62	1.12	3.25	1.25	3.06	0.75	6.34	5.88	1.88	2.62	1.38	5.62
4	9 & 10	20.5	1020529	16.9	2.12	1.38	4.50	1.50	5.25	0.88	9.45	7.19	2.25	3.12	1.75	7.50
5	11 & 12	35	1020540	35.0	2.50	1.75	5.50	2.00	6.34	1.12	11.50	9.31	3.00	4.19	2.25	9.19
6	13	50	1020551	57.5	3.00	2.12	6.50	2.25	7.70	1.25	13.75	10.38	3.38	4.75	2.75	11.00

Series: S-252 Bolt Type Sling Shackle

Design Factor: 5:1.

Proof Load: Maximum proof load is 2.5 times the Working Load Limit.

Sling Compatibility: Designed for use with synthetic web slings and round slings, with sizing based on web sling eye width or round sling size.

Specification	Value
Body Material	Alloy
Inner Length	1-1/2in
Inner Width	1.38in
Opening Size	1.06in
Overall Length	3.38in
Pin Diameter	3/4in
Pin Type	Bolt
Overall Width	3.68in
Load Capacity	3.25ton
Series	Sling Saver S-252
Finish	Self-Colored
