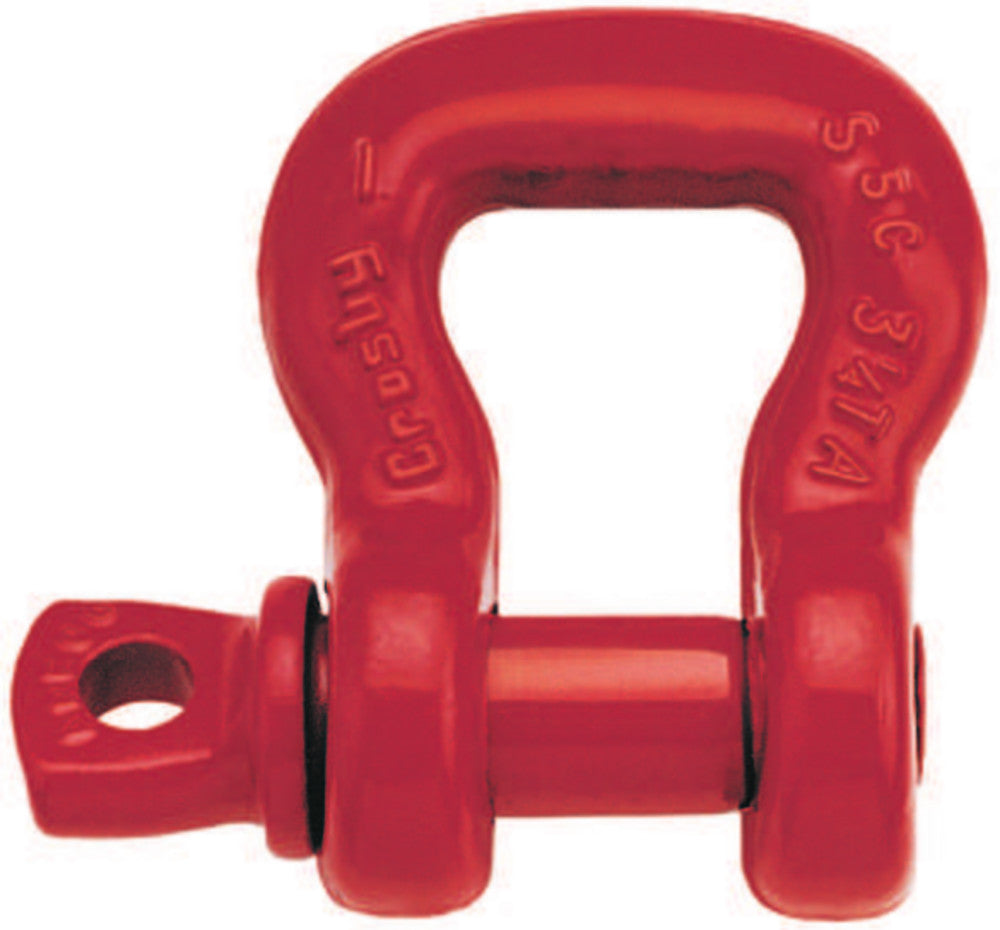

S-253 Screw Pin Sling Shackle

Name: S-253 Screw Pin Sling Shackle
Brand: Crosby
SKU: 1020593
Price: 93.4 CAD
Availability: OutOfStock

SKU: Part #1020593

$133.37 CAD

Sale Low stock

Web Sling Eye Width 1" 1-1/2" 2" 3" 4" 5" 6"

Quantity

View full details

Product Description

Crosby S-253 screw pin sling shackles are specialized lifting components designed for use with synthetic web slings and round slings. Featuring a wider, more squared bow design, these shackles provide increased bearing surface to improve load distribution and reduce wear on sling material.
Manufactured from forged alloy steel, these shackles are engineered to enhance sling performance, allowing full utilization of the sling’s working load limit. The screw pin design enables quick installation and removal, making them ideal for rigging setups that require flexibility and efficiency.

Material:
Body: Forged alloy steel
Pin: Alloy steel
• All alloy construction for superior strength
• Designed for improved load distribution and sling protection

Specifications:
• Meets or exceeds ASME B30.26 requirements
• Conforms to WSTDA-RS1 standards for synthetic slings
• Design Factor: 5:1
• Proof Load: up to 2.5x Working Load Limit
• Increases sling efficiency by at least 15%
• Each shackle includes Product Identification Code (PIC) for traceability

Uses:
• Synthetic web sling connections
• Round sling lifting applications
• Lifting with pad eyes, lugs, and eye bolts
• Rigging setups requiring improved load distribution
• Industrial and construction lifting

Key Features:
Sling saver design – Wide bow increases bearing surface and reduces sling wear
Improved efficiency – Allows slings to achieve full working load capacity
High strength construction – Forged alloy steel for durability
Quick connection – Screw pin allows fast installation and removal
Enhanced safety – Better load distribution across sling fibers
Traceability – Stamped with PIC, WLL, and Crosby branding

Web Sling Eye Width (in)	Round Sling Size (No.)	Working Load Limit (t)	Stock No.	Weight Each (lb)	Dimension A (in)	Dimension B (in)	Dimension C (in)	Dimension D (in)	Dimension E (in)	Dimension G (in)	Dimension K (in)	Dimension L (in)	Dimension M (in)	Dimension N (in)	Dimension P (in)	Dimension R (in)
1	1 & 2	3.25	1020575	1.4	0.88	0.62	1.38	0.75	1.50	3.38	1.50	0.75	2.69	3.22	0.44	1.00
1.5	3 & 4	6.5	1020584	2.2	1.25	0.75	1.75	0.88	1.88	4.15	1.81	1.00	3.38	4.03	0.50	1.19
2	5 & 6	8.75	1020593	3.8	1.38	0.88	2.25	1.00	2.81	5.50	2.09	1.12	4.19	4.50	0.50	1.44
3	7 & 8	12.5	1020602	7.3	1.62	1.12	3.25	1.25	3.06	6.34	2.62	1.38	5.62	5.59	0.62	1.81
4	9 & 10	20.5	1020611	15.2	2.12	1.38	4.50	1.50	5.25	9.45	3.12	1.75	7.50	6.88	0.75	2.13
5	11 & 12	35	1020620	30.8	2.50	1.75	5.50	2.00	6.34	11.50	4.19	2.25	9.19	8.66	1.00	2.88
6	13	50	1020629	52.0	3.00	2.12	6.50	2.25	7.70	13.75	4.75	2.75	11.00	10.22	1.22	3.19

Series: S-253 Screw Pin Sling Shackle

Design Factor: 5:1.

Proof Load: Maximum proof load is 2.5 times the Working Load Limit.

Connection: Screw pin configuration allows quick assembly and removal without a separate nut and cotter pin.

Sling Compatibility: Designed for use with synthetic web slings and round slings, with sizing based on web sling eye width or round sling size.

Specification	Value
Body Material	Alloy
Eye Outer Size	2.09in
Inner Length	2.81in
Inner Width	2-1/4in
Opening Size	1.38in
Overall Length	5-1/2in
Pin Material	Alloy
Pin Type	Screw
Overall Width	4-1/2in
Series	Sling Saver S-253
Finish	Self-Colored
