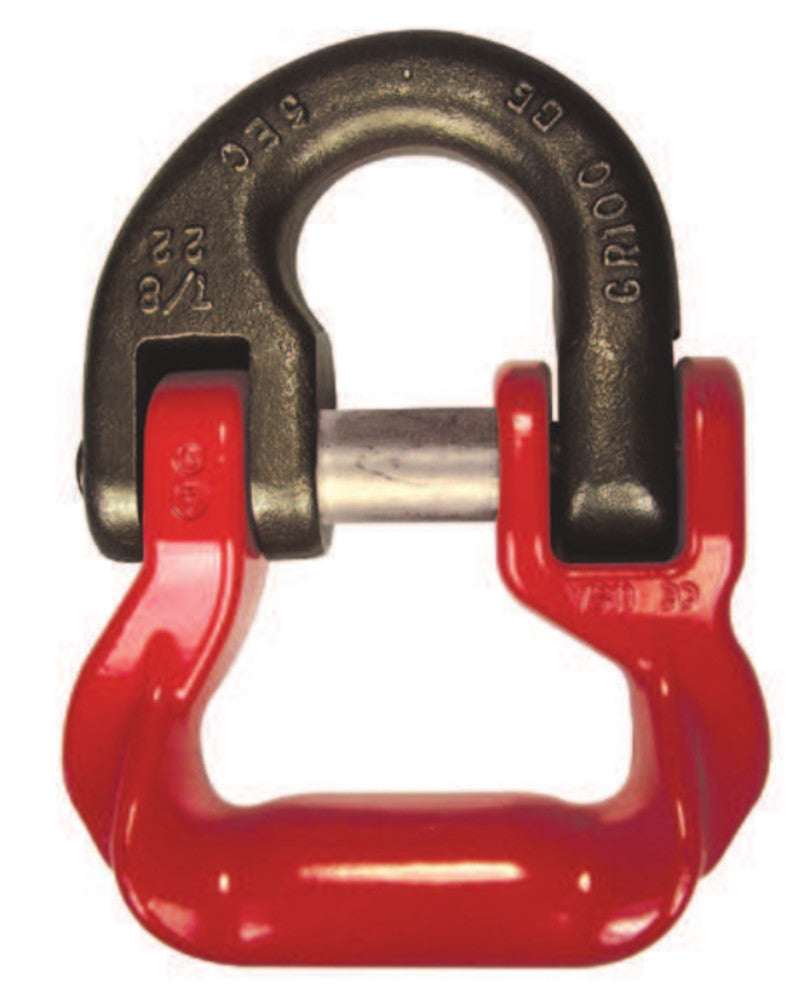

S-237 High Performance Sling Connector

Name: S-237 High Performance Sling Connector
Brand: Crosby
SKU: 1020695
Price: 317.32 CAD
Availability: OutOfStock

SKU: Part #1020695

$317.32 CAD

Sale Low stock

Frame No. 5 10 15 25 30 40 60

Quantity

View full details

Product Description

Crosby S-237 High Performance Sling Connectors are designed for connecting high-performance synthetic slings (round slings and web slings) to rigging hardware such as master links, hooks, and bridle assemblies. These connectors improve sling efficiency by providing a larger bearing surface, which reduces stress on sling fibers and allows full Working Load Limit (WLL) utilization.
The design features an increased bow radius, which enhances load distribution and minimizes wear on synthetic slings, making it ideal for heavy-duty lifting applications.

Material:
Body: Forged alloy steel
Construction: All-alloy design for strength and durability

Specifications:
Designed for synthetic sling systems (round slings & web slings)
Working Load Limit range: approx. 5,000 lb to 60,000 lb
Compatible sling widths: approx. 2" to 6"
5:1 design factor (ultimate strength = 5× WLL)
Individually proof tested to 2–2.5× WLL with certification
Increased bow radius provides larger sling contact surface
Allows 100% utilization of sling rated capacity
Each connector includes a Product Identification Code (PIC) for traceability
Meets WSTDA standards for synthetic slings

Uses:
Connecting synthetic slings to master links or hooks
Building bridle sling assemblies
Joining sling systems or rigging components
Industrial lifting and material handling

Key Features:
Enhanced load distribution – Larger bearing surface protects sling fibers
Improved sling efficiency – Allows full rated WLL usage
Alloy construction – High strength and durability
Versatile connection – Works with hooks, master links, and slings
Proof tested – Certified for safe lifting applications
Traceability – PIC code for identification and inspection

Working Load Limit - 4:1 (lb)	Working Load Limit - 5:1 (lb)	Stock No.	Frame No.	Nominal Sling Body Width (in)	Lok-A-Loy Size (in)	Weight Each (lb)	Lower Loop Width - A (in)	Top Eye Inside Height - B (in)	Top Eye Inside Width - C (in)	Overall Width - E (in)	Side Profile Width - G (in)	Top Eye Section Thickness - H (in)	Overall Length - L (in)	Lower Eye Inside Height - N (in)	Connector Reach - R (in)	Lower Bearing Section Thickness - S (in)	Body Thickness - W (in)
6,250	5,000	1020695	5	2	3/8	1.14	0.88	1.42	2.00	3.18	1.00	0.80	4.20	1.04	2.92	0.48	1.38
12,500	10,000	1020704	10	3	5/8	2.96	1.42	1.52	2.75	4.13	1.25	0.98	5.68	1.71	3.94	0.75	1.75
18,750	15,000	1020713	15	3	3/4	4.75	1.63	1.58	2.75	4.37	1.38	1.10	6.49	2.04	4.46	0.93	1.88
31,250	25,000	1020722	25	4	7/8	8.59	2.00	2.33	3.75	6.00	1.75	1.41	7.97	2.27	5.51	1.06	2.25
37,500	30,000	1020731	30	4	7/8	9.24	2.00	2.20	3.75	6.19	1.75	1.41	7.84	2.27	5.38	1.06	2.38
50,000	40,000	1020740	40	5	1	15.7	2.25	2.91	4.75	7.25	2.25	1.78	9.45	2.44	6.45	1.22	3.09
75,000	60,000	1020759	60	6	1-1/4	26.0	2.56	3.36	5.75	9.13	2.31	1.86	11.08	3.07	7.72	1.50	3.16

Series: S-237 High Performance Sling Connector

Material: All-alloy construction.

Design Factor: 5:1.

Proof Load: Maximum allowable proof load is 2 times the Working Load Limit when the connector is used at a 4:1 design factor.

Sling Compatibility: Designed to connect to slings of all materials and suitable for connection to master links or eye hooks, including bridle assemblies.

Sling Protection: Increased bow radius provides a wider sling-bearing surface for improved load distribution across the sling fibers and allows 100% of the sling's rated Working Load Limit to be achieved when properly applied.

Identification: Each connector includes a Product Identification Code (PIC), frame size, and Crosby identification forged into the fitting for traceability.

Standards: Crosby Sling Saver® hardware meets applicable minimum stock diameter/thickness and effective contact-width requirements of WSTDA-RS1 for synthetic polyester round slings.
