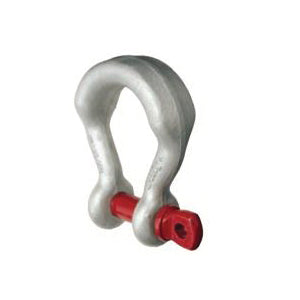

G-2169 Alloy Screw Pin Wide Body Shackles

Name: G-2169 Alloy Screw Pin Wide Body Shackles
Brand: Crosby
SKU: 1021655
Price: 146.24 CAD
Availability: OutOfStock

SKU: Part #1021655

$146.24 CAD

Sale Low stock

Working Load Limit 7 Ton 12.5 Ton 18 Ton

Quantity

View full details

Product Description

Crosby G-2169 alloy screw pin wide body shackles are designed to improve sling performance in lifting applications. The increased bow radius provides a larger bearing surface, helping to reduce stress on slings and improve efficiency.
These shackles are suitable for connecting wire rope slings, synthetic round slings, and high-strength sling systems, making them ideal for demanding rigging environments.

Material:
Body: Forged alloy steel
Pin: Alloy steel
Quenched and tempered for maximum strength
Available in galvanized and self-colored finishes

Specifications:
Capacities available: 7, 12.5, and 18 metric tons
Proof Load: 2x Working Load Limit
Ultimate Strength: 5x Working Load Limit
Meets or exceeds ASME B30.26 requirements
Can be individually proof tested and magnetic particle inspected
Crosby certification available upon request

Uses:
Wire rope sling connections
Synthetic round sling applications
Heavy lifting and rigging
Industrial and construction lifting
Applications requiring improved sling performance

Key Features:
Wide body design – Increases sling bearing surface
Improved efficiency – Enhances sling strength utilization
Reduced wear – Extends sling life
High strength construction – Forged, quenched, and tempered alloy steel
Versatile use – Compatible with multiple sling types
Trusted quality – Features Crosby Red Pin® identification

Working Load Limit (tons)	Stock No.	Weight Each (lb)	Inside Width at Pin (in)	Pin Diameter (in)	Inside Length - Pin to Crown (in)	Jaw Opening Width (in)	Inside Width at Top of Bow (in)	Eye Width at Pin (in)	Outside Width at Top of Bow (in)	Overall Height (in)	Wide-Body Bearing Thickness (in)	Bow Radius at Crown (in)	Screw Pin Eye Length (in)	Overall Width with Screw Pin (in)	Bow Thickness at Crown (in)	Shackle Eye Thickness (in)	Replacement Screw Pin Stock No.
7	1021655	3.5	1.25	0.88	3.56	1.60	2.50	1.82	4.10	5.87	1.25	1.25	0.50	3.97	0.96	0.69	—
12-1/2	1021673	8.8	1.69	1.16	4.63	2.13	3.26	2.38	5.51	7.63	1.37	1.63	0.56	5.13	1.25	0.92	—
18	1021691	13	2.03	1.41	5.81	2.50	4.00	2.69	6.76	9.38	1.50	2.00	0.69	6.25	1.41	1.16	1083873

Design Factor: 5:1

Proof Load: Proof load is 2 times the Working Load Limit.

Specification	Value
Body Material	Forged Alloy Steel
Eye Outer Size	1.82in
Inner Width	1-1/4in
Opening Size	1-1/4in
Overall Length	5.87in
Pin Material	Alloy
Pin Type	Screw
Overall Width	3.97in
Load Capacity	7ton
Series	G-2169
Finish	Hot Dipped Galvanized
