Crosby

A-330 Clevis Grab Hooks

Name: A-330 Clevis Grab Hooks
Brand: Crosby
SKU: 1027267
Price: 17.23 CAD
Availability: OutOfStock

SKU: Part #1027267

$21.58 CAD

Sale Low stock

Chain Size 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"

Quantity

View full details

Product Description

The Crosby A-330 Clevis Grab Hook is a heavy-duty chain fitting designed for secure connection to Grade 8 alloy chain in lifting, rigging, and load-handling applications. Its clevis-style attachment provides quick and straightforward installation directly into compatible chain, while the grab-hook profile is designed to engage a chain link for shortening, tensioning, or securing an assembly.

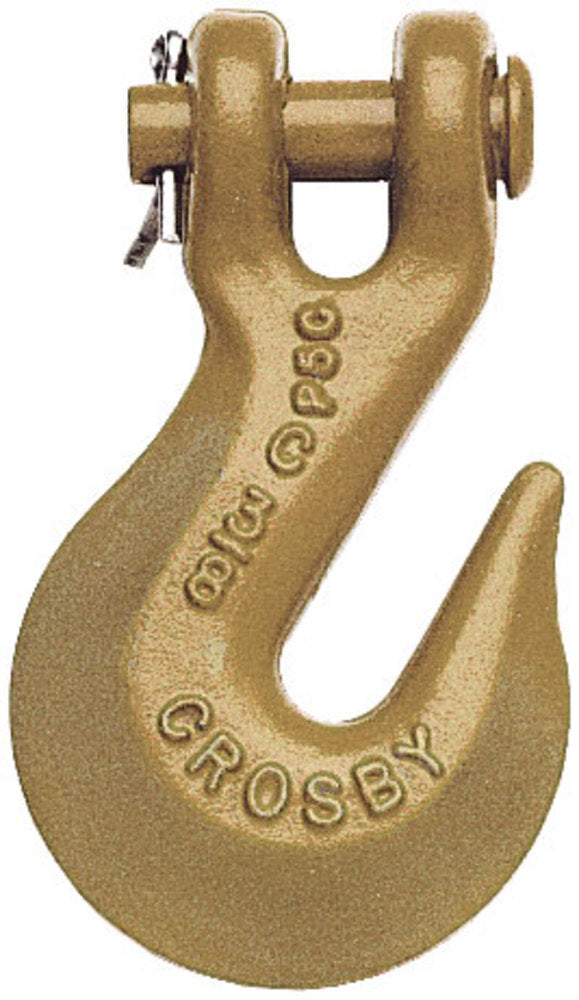

Forged from high-strength steel and quenched and tempered for increased strength and durability, the A-330 is built for demanding industrial service. The hook features Crosby’s traditional gold/yellow alloy-style finish, providing the correct appearance for this product rather than the red finish used on some other Crosby hardware.

A 4:1 design factor supports dependable use in properly configured assemblies. Available sizes range from 1/4 to 3/4 in chain, with working load limits increasing according to chain size. Selected A-330 models are forged with an “8” designation identifying Grade 80 compatibility.

Material:
Forged steel
Quenched and tempered construction
Gold/yellow alloy-style finish

Compatible With:
Grade 8 alloy chain
Properly matched chain sizes from 1/4 to 3/4 in
Compatible Grade 80 chain assemblies
Approved Crosby chain and rigging components

Uses:
Shortening chain assemblies
Connecting directly to compatible alloy chain
Load securement and tensioning
Chain sling configuration
Industrial rigging applications
Material handling and load control

Key Features:
Forged, quenched and tempered steel construction
Designed for Grade 8 chain
Gold/yellow alloy-style finish
Clevis connection for quick assembly
Grab-hook profile for engaging chain links
4:1 design factor
Available in multiple chain sizes
Heavy-duty Crosby construction

Chain Size (in)	H-330 Carbon Stock No.	A-330 Alloy Stock No.	H-330 Carbon WLL (lb)	A-330 Alloy WLL (lb)	Weight Each (lb)	A – Clevis Outside Width (in)	B – Clevis Inside Width (in)	C – Clevis Depth (in)	D – Overall Hook Width (in)	E – Hook Opening (in)	G – Hook Bowl Height (in)	H – Clevis Head Width (in)	K – Body Thickness (in)	L – Overall Length (in)	N – Lower Hook Body Length (in)	P – Clevis Pin Diameter (in)	R – Hook Reach (in)
1/4	1027105	1027249*	2,600	3,500	0.36	1.00	0.32	0.31	1.81	0.34	0.88	0.72	0.47	3.05	1.75	0.31	1.64
5/16	1027123	1027267*	3,900	4,700	0.62	1.22	0.43	0.36	2.12	0.44	0.97	0.91	0.59	3.66	2.06	0.38	2.02
3/8	1027141	1027285*	5,400	7,100	1.00	1.42	0.48	0.49	2.53	0.50	1.17	1.00	0.72	4.42	2.34	0.44	2.41
7/16	1027169	1027301	7,200	8,750	1.31	1.66	0.66	0.62	3.09	0.56	1.31	1.13	0.69	4.94	2.66	0.56	2.75
1/2	1027187	1027329*	9,200	12,000	2.22	1.88	0.57	0.51	3.56	0.66	1.53	1.25	0.78	5.72	2.97	0.63	3.19
5/8	1027203	1027347	13,000	18,100	4.41	2.31	0.71	0.67	4.39	0.78	1.78	1.56	1.09	6.83	4.31	0.75	4.09
3/4	1027221	1027365	20,200	24,700	6.50	2.62	0.94	0.94	5.22	0.94	2.13	1.88	1.31	8.13	5.09	0.88	4.63

* Important: Starred A-330 hooks are forged with an “8” designating Grade 80 and are suitable for use with Grade 8 chain in overhead lifting applications when the hook is proof-tested as part of the chain sling assembly or as an individual component in accordance with ASME B30.9.
