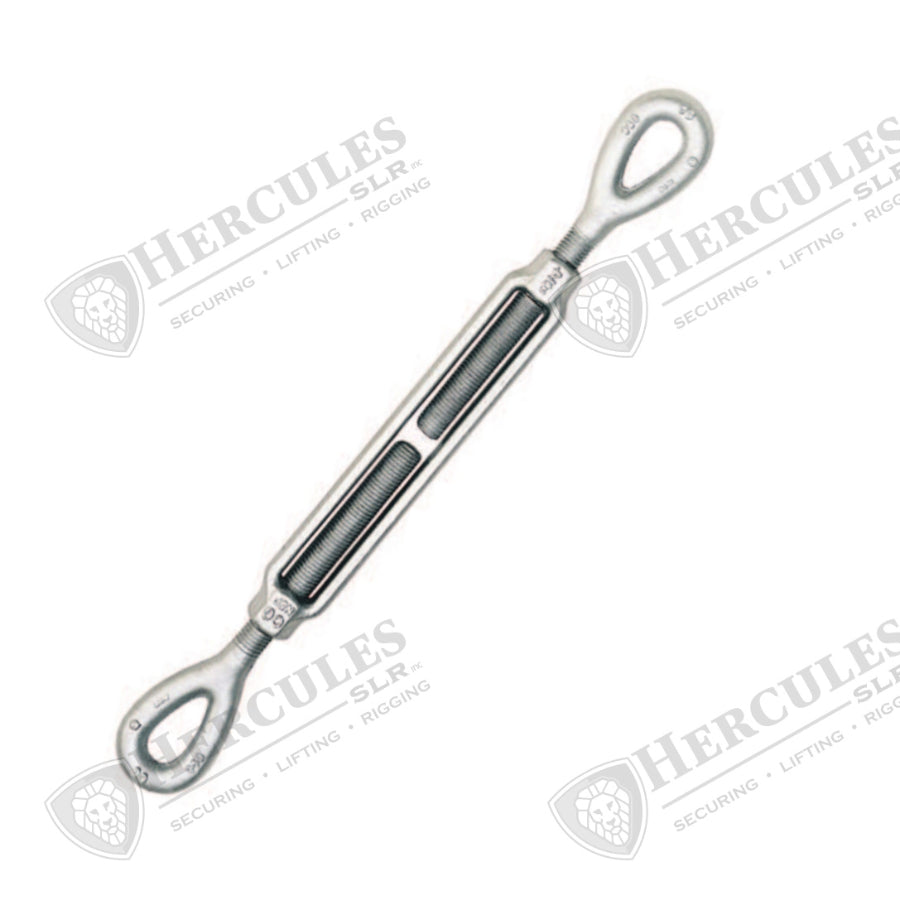

HG-226 Eye & Eye

HG-226 Eye & Eye

Part #1031298

$91.15 CAD
$91.15 CAD
Sale Low stock
Thread Diameter & Take Up
View full details

Product Description

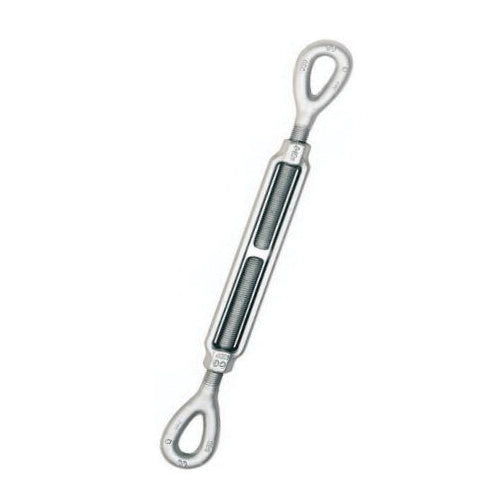

The Crosby HG-226 Eye & Eye Turnbuckle is engineered for heavy-duty rigging and tensioning applications requiring dependable load adjustment, superior fatigue resistance, and secure attachment points. Designed for straight or in-line pull applications only, these heavy-duty turnbuckles provide reliable tension control for industrial rigging, construction projects, marine environments, utility systems, and overhead lifting operations.
Manufactured from quenched and tempered or normalized steel with hot-dip galvanized protection, the HG-226 turnbuckles deliver exceptional durability and dependable long-term performance in demanding outdoor and industrial conditions. Forged elongated eye ends minimize stress concentration while allowing easier attachment in rigging systems, making these turnbuckles ideal for repeated heavy-duty tensioning applications.

Material:
Quenched and tempered or normalized steel
Heat-treated steel body
Hot-dip galvanized finish

Specifications:
Eye & eye turnbuckle design
Recommended for straight or in-line pull applications only
Forged elongated eye ends maximize easy attachment and minimize stress
End fittings are quenched and tempered or normalized
Bodies heat-treated by normalizing for enhanced durability
Modified UNJ threads on end fittings improve fatigue resistance
Body utilizes UNC threads
Hot-dip galvanized for corrosion resistance
For turnbuckle sizes 1/4 in through 2-1/2 in, a shackle one size smaller can be reeved through the eye
Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit
Working Load Limits available from 800 lb through 75,000 lb depending on size
Proof load is 2.5 times the Working Load Limit
Ultimate load is 5 times the Working Load Limit
Lock nuts available for all sizes
Meets or exceeds ASME B30.26 requirements
Meets Federal Specification FF-T-791b Type 1 Form 1 Class 4 and ASTM F-1145 except for contractor-required provisions

Uses:
Industrial rigging systems
Construction tensioning applications
Marine and offshore rigging
Utility and transmission line work
Cable and wire tensioning
Overhead lifting systems
General load adjustment applications
Heavy-duty in-line pull applications

Key Features:
Forged elongated eyes – Improve attachment ease while reducing stress concentration
Hot-dip galvanized finish – Enhances corrosion resistance in outdoor environments
Fatigue rated construction – Designed for repeated loading cycles
Modified UNJ threads – Improves fatigue performance and thread durability
Heavy-duty steel construction – Built for rugged industrial applications
Wide size range – Available for multiple load capacities and take-up lengths
ASME compliant design – Meets recognized rigging and lifting performance standards
Industrial-grade reliability – Engineered for demanding lifting and tensioning environments

Thread Diameter & Take Up (in) Stock No. Working Load Limit (lb) Weight Each (lb) Thread Diameter (in) Open Length (in) Closed Length (in) Overall Open Length (in) Overall Closed Length (in) Eye Width (in) Eye Thickness (in) Closed End Length (in) Turnbuckle Body Length (in)
* 5/16 x 4-1/2 1031270 800 0.48 0.31 13.92 9.42 14.48 9.98 0.95 0.44 2.20 4.58
* 3/8 x 6 1031298 1,200 0.75 0.38 17.56 11.56 18.24 12.24 1.13 0.53 2.48 6.10
1/2 x 6 1031314 2,200 1.72 0.50 19.94 13.94 20.82 14.82 1.41 0.71 3.56 6.03
1/2 x 12 1031350 2,200 2.63 0.50 32.23 20.23 33.11 21.11 1.41 0.71 3.54 12.36
5/8 x 6 1031378 3,500 2.75 0.63 21.72 15.72 22.72 16.72 1.80 0.88 4.35 6.03
5/8 x 12 1031412 3,500 4.12 0.63 34.06 22.06 35.06 23.06 1.80 0.88 4.34 12.39
3/4 x 6 1031430 5,200 4.22 0.75 23.24 17.24 24.50 18.50 2.09 1.00 5.12 6.13
3/4 x 12 1031476 5,200 6.12 0.75 35.64 23.64 36.90 24.90 2.09 1.00 5.09 12.59
3/4 x 18 1031494 5,200 7.83 0.75 47.64 29.64 48.90 30.90 2.09 1.00 5.12 18.53
7/8 x 12 1031519 7,200 8.83 0.88 36.70 24.70 38.20 26.20 2.38 1.25 5.79 12.16
7/8 x 18 1031537 7,200 11.5 0.88 49.17 31.17 50.67 32.67 2.38 1.25 5.79 18.63
1 x 6 1031555 10,000 9.62 1.00 26.24 20.24 28.00 22.00 3.00 1.43 6.50 6.18
1 x 12 1031573 10,000 13.0 1.00 38.24 26.24 40.00 28.00 3.00 1.43 6.50 12.18
1 x 18 1031591 10,000 16.3 1.00 50.24 32.24 52.00 34.00 3.00 1.43 6.50 18.18
1 x 24 1031617 10,000 20.2 1.00 62.84 38.84 64.60 40.60 3.00 1.43 6.47 24.84
1-1/4 x 12 1031635 15,200 19.9 1.25 42.14 30.14 44.38 32.38 3.59 1.82 8.49 12.06
1-1/4 x 18 1031653 15,200 23.8 1.25 54.14 36.14 56.38 38.38 3.59 1.82 8.49 18.06
1-1/4 x 24 1031671 15,200 27.8 1.25 66.70 42.70 68.94 44.94 3.59 1.82 8.49 24.62
1-1/2 x 12 1031699 21,400 28.7 1.50 44.24 32.24 46.74 34.74 4.09 2.12 9.46 12.32
1-1/2 x 18 1031715 21,400 34.1 1.50 56.24 38.24 58.74 40.74 4.09 2.12 9.46 18.32
1-1/2 x 24 1031733 21,400 39.6 1.50 68.86 44.86 71.36 47.36 4.09 2.12 9.46 24.94
1-3/4 x 18 1031779 28,000 50.7 1.75 57.38 39.38 60.38 42.38 4.65 2.38 9.97 18.37
1-3/4 x 24 1031797 28,000 58.2 1.75 69.38 45.38 72.38 48.38 4.65 2.38 9.97 24.37
2 x 24 1031813 37,000 83.5 2.00 75.68 51.68 79.18 55.18 5.81 2.69 13.03 24.48
2-1/2 x 24 1031831 60,000 149 2.50 79.18 55.18 83.18 59.18 6.49 3.12 13.76 24.60
2-3/4 x 24 1031859 75,000 174 2.75 81.34 57.34 85.84 61.84 7.00 3.25 15.09 24.65

Series: HG-226 Eye & Eye Turnbuckles

Material: End fittings are quenched and tempered or normalized; turnbuckle bodies are heat-treated by normalizing.

Finish: Hot-dip galvanized steel unless otherwise identified below.

*: Products marked with this symbol are mechanically galvanized.

Eye Design: Forged elongated eyes are designed to provide easier attachment and reduce stress concentration in the eye. For sizes 1/4 in through 2-1/2 in, a shackle one size smaller can be reeved through the eye.

Threads: End fittings use modified UNJ threads for improved fatigue properties. Turnbuckle bodies use UNC threads.

Application: Turnbuckles are recommended for straight or in-line pull only.

Design Factor: 5:1.

Proof Load: Proof Load is 2.5 times the Working Load Limit.

Fatigue Rating: Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.

Compliance: Meets or exceeds applicable requirements of ASME B30.26 and meets the performance requirements of Federal Specification FF-T-791b, Type 1, Form 1, Class 4 and ASTM F-1145, except for provisions required of the contractor.
