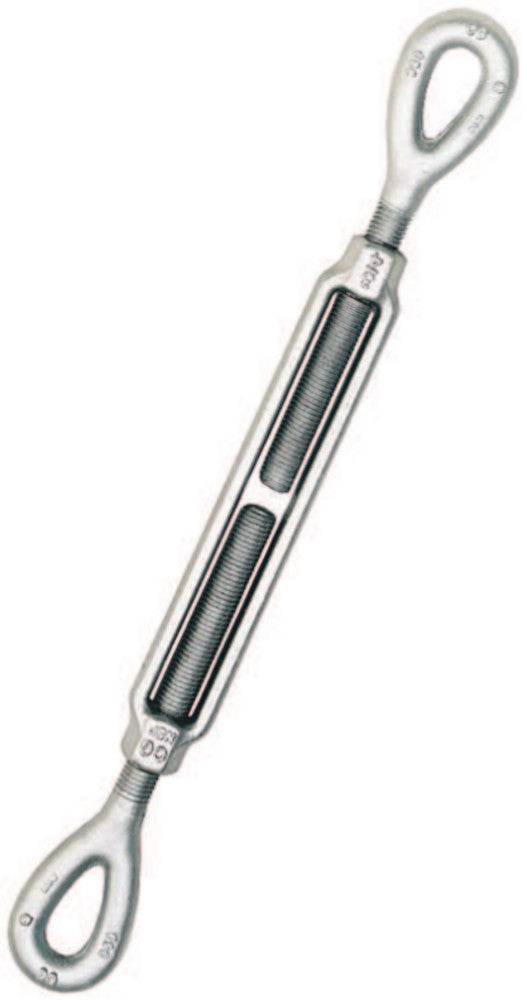

Crosby HG-226 Eye & Eye - Size 1-1/4 x 24 in

Product Description

Product Description:
The Crosby HG-226 Eye & Eye Turnbuckle is engineered for heavy-duty rigging and tensioning applications requiring dependable load adjustment, superior fatigue resistance, and secure attachment points. Designed for straight or in-line pull applications only, these heavy-duty turnbuckles provide reliable tension control for industrial rigging, construction projects, marine environments, utility systems, and overhead lifting operations.
Manufactured from quenched and tempered or normalized steel with hot-dip galvanized protection, the HG-226 turnbuckles deliver exceptional durability and dependable long-term performance in demanding outdoor and industrial conditions. Forged elongated eye ends minimize stress concentration while allowing easier attachment in rigging systems, making these turnbuckles ideal for repeated heavy-duty tensioning applications.

Material:
Quenched and tempered or normalized steel
Heat-treated steel body
Hot-dip galvanized finish

Specifications:
Eye & eye turnbuckle design
Recommended for straight or in-line pull applications only
Forged elongated eye ends maximize easy attachment and minimize stress
End fittings are quenched and tempered or normalized
Bodies heat-treated by normalizing for enhanced durability
Modified UNJ threads on end fittings improve fatigue resistance
Body utilizes UNC threads
Hot-dip galvanized for corrosion resistance
For turnbuckle sizes 1/4 in through 2-1/2 in, a shackle one size smaller can be reeved through the eye
Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit
Working Load Limits available from 800 lb through 75,000 lb depending on size
Proof load is 2.5 times the Working Load Limit
Ultimate load is 5 times the Working Load Limit
Lock nuts available for all sizes
Meets or exceeds ASME B30.26 requirements
Meets Federal Specification FF-T-791b Type 1 Form 1 Class 4 and ASTM F-1145 except for contractor-required provisions

Uses:
Industrial rigging systems
Construction tensioning applications
Marine and offshore rigging
Utility and transmission line work
Cable and wire tensioning
Overhead lifting systems
General load adjustment applications
Heavy-duty in-line pull applications

Key Features:
Forged elongated eyes – Improve attachment ease while reducing stress concentration
Hot-dip galvanized finish – Enhances corrosion resistance in outdoor environments
Fatigue rated construction – Designed for repeated loading cycles
Modified UNJ threads – Improves fatigue performance and thread durability
Heavy-duty steel construction – Built for rugged industrial applications
Wide size range – Available for multiple load capacities and take-up lengths
ASME compliant design – Meets recognized rigging and lifting performance standards
Industrial-grade reliability – Engineered for demanding lifting and tensioning environments
