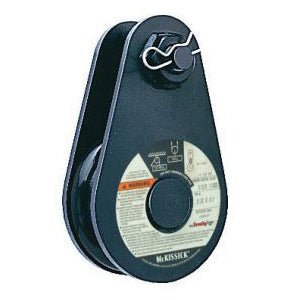

McKissick 407 Super Champion Tail Board Snatch Block - 1 to 1-1/8 in - 20 Ton - 8 in

Product Description

The McKissick 407 Super Champion Tail Board Snatch Block is a heavy-duty single-sheave block with tail board configuration, designed for wire rope cable applications requiring a securely mounted, fixed-anchor block for load redirection and high-tension pulling operations in industrial, oilfield, logging, and heavy construction environments. Rated for a 20-ton working load limit, this block is built around an 8-inch outside diameter sheave supported by a self-lubricating bronze bushing bearing, providing dependable, corrosion-resistant sheave rotation under sustained heavy loads. The 407 series accommodates wire rope cable from 1 to 1-1/8 inches in diameter.

The tail board attachment provides a flat, bolted mounting interface that allows the block to be securely fastened to a vehicle frame, sled, skid, or structural anchor, keeping the block fixed in position during high-tension pulling and rigging operations. This configuration is commonly used in logging, land clearing, oilfield, and heavy construction applications where a stationary anchor block is required to redirect a winch or crane line efficiently. The bronze bushing bearing offers reliable performance in environments where exposure to moisture, dirt, and debris is common, and its self-lubricating properties reduce maintenance requirements in remote or demanding field conditions.

The Super Champion designation reflects McKissick's higher-strength design tier, engineered for demanding applications where greater working load limits and more robust construction are required. The compact 8-inch sheave diameter makes this tail board configuration practical for applications where a high-capacity fixed-anchor block with a smaller overall profile is needed. This block is well suited for use with wire rope winches, cranes, and rigging systems in logging, oilfield, offshore, marine, and heavy industrial load-handling operations.

Material:

Steel (body, cheek plates, and tail board) Self-lubricating bronze bushing bearing

Compatible With:

Wire rope cable, 1 to 1-1/8 in diameter

Uses:

Fixed-anchor load redirection in heavy wire rope rigging systems Tail board mounting to vehicle frames, sleds, skids, or structural anchors Mechanical advantage in heavy pulling and lifting applications Winch and crane line deflection Logging, oilfield, offshore, marine, and heavy construction rigging

Key Features:

20 Ton working load limit 8 in sheave outside diameter Tail board configuration for secure fixed-surface mounting Self-lubricating bronze bushing bearing for corrosion-resistant, low-maintenance operation Accommodates 1 to 1-1/8 in wire rope cable Compact sheave profile for high-capacity fixed-anchor applications McKissick 407 Super Champion series
