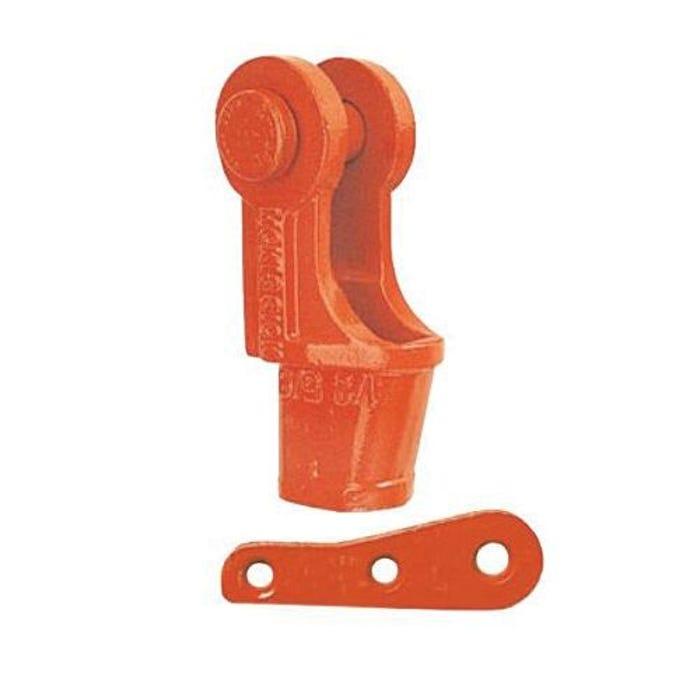

Name: US-422T Utility Wedge Sockets
Brand: Crosby
SKU: 1044435
Price: 294.86 CAD
Availability: OutOfStock

Product Description

Crosby US-422T utility wedge sockets are durable wire rope termination components designed for quick installation, inspection, and field adjustment. Manufactured with a cast steel basket and forged load pin, these sockets provide reliable performance in lifting and rigging applications.

Material:
Basket: Cast steel (magnetic particle inspected)
Pin: Forged steel
Wedge: Heat-treated steel

Specifications:
- Meets or exceeds ASME B30.26 requirements
- Wedge socket termination efficiency: ~80% of wire rope strength
- Individually magnetic particle inspected baskets for quality assurance
- Includes QUIC-CHECK® “Go/No-Go” feature for proper rope sizing
- Available with API-2C certification upon request

Uses:
- Wire rope termination in lifting systems
- Crane and hoisting applications
- Field installation and adjustable rigging setups
- Construction and industrial lifting operations
- Marine and offshore rigging

Key Features:
- High strength construction – Cast steel basket with forged load pin for durability
- Interchangeable wedges – Allows use across multiple wire rope sizes
- Color-coded wedges – Easy identification of correct rope size
- QUIC-CHECK® system – “Go/No-Go” feature ensures proper rope fit
- Hammer pad design – Assists in secure and proper installation

Wireline Size (in)	Wireline Size (mm)	Model No.	Wedge Socket Assembly Stock No.	Assembly Weight Each (lb)	Wedge Only Stock No.	Wedge Weight Each (lb)	Replacement Round Pin Kit Stock No.
3/8	10	US4T	1044300	4.6	1047310	0.7	1085724
7/16	11	US4T	1044309	4.6	1047301	1.0	1085724
1/2	13	US4T	1044318	4.6	1047329	1.0	1085724
1/2	13	US5T	1044327	8.5	1047338	2.0	2022513
9/16	14	US5T	1044336	8.5	1047347	1.8	2022513
5/8	16	US5T	1044345	8.5	1047356	1.8	2022513
5/8	16	US6T	1044354	9.4	1047365	3.0	2022513
3/4	19	US6T	1044363	9.4	1047374	2.5	2022513
5/8	16	US8AT	1044372	17.5	1047383	3.2	2022513
3/4	19	US8AT	1044381	17.5	1047392	3.4	2022513
7/8	22	US7*	1038580	16.5	1046674	2.6	1085727
1	25	US7*	1038589	16.5	1046683	2.6	1085727
7/8	22	US8T	1044404	20.8	1047425	5.5	1085727
1	25	US8T	1044417	20.8	1047431	6.1	1085727
1-1/8	28	US10T	1044426	46.5	1047440	9.7	1085727
1-1/4	32	US10T	1044435	46.5	1047459	10.4	1085727
1-1/8	28	US11T	1044444	60.6	1047468	12.5	1085730
1-1/4	32	US11T	1044453	64.9	1047477	15.0	1085730

Series: US-422T Utility Wedge Sockets

Efficiency: Wedge socket terminations have an efficiency rating of 80% based on the catalog strength of XXIP wire rope.

Construction: Basket is cast steel and individually magnetic particle inspected. The load pin is forged and headed on one end.

Interchangeable Wedges: A socket can accommodate multiple wireline sizes by changing to the correct wedge for the wire rope size. The socket model and applicable wireline size are cast into each wedge.

Wedge Identification: Wedges are color coded for identification. Blue identifies the largest wireline size for the socket, orange identifies the smallest size, and black identifies intermediate sizes where applicable.

QUIC-CHECK®: TERMINATOR-style US-422T wedges incorporate Crosby's patented “Go” and “No-Go” feature. The correct wire rope should pass through the “Go” hole and must not pass through the “No-Go” hole.

Hammer Pad: US-422T wedge sockets incorporate a hammer pad (lip) to assist with proper securement of the termination.

Compliance: Meets or exceeds the applicable requirements of ASME B30.26, including identification, ductility, design factor, proof load and temperature requirements. API-2C certification is available upon request.

Wedge Compatibility: UWO-422T wedges are for use only with US-422T Wedge Socket Assemblies.

Wedge Only: Stock numbers listed in the “Wedge Only Stock No.” column are replacement wedges only and do not include the complete wedge socket assembly.

*: Products marked with this symbol are Non-Terminator Style.
