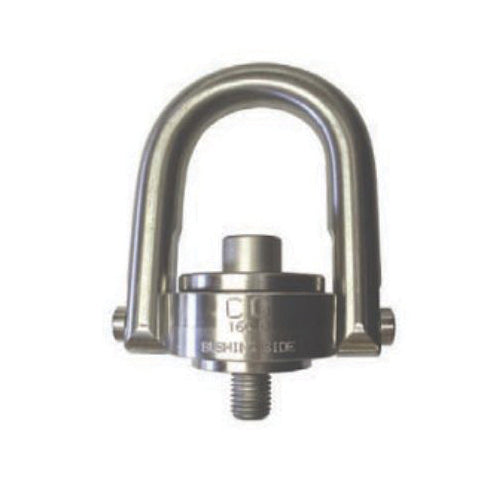

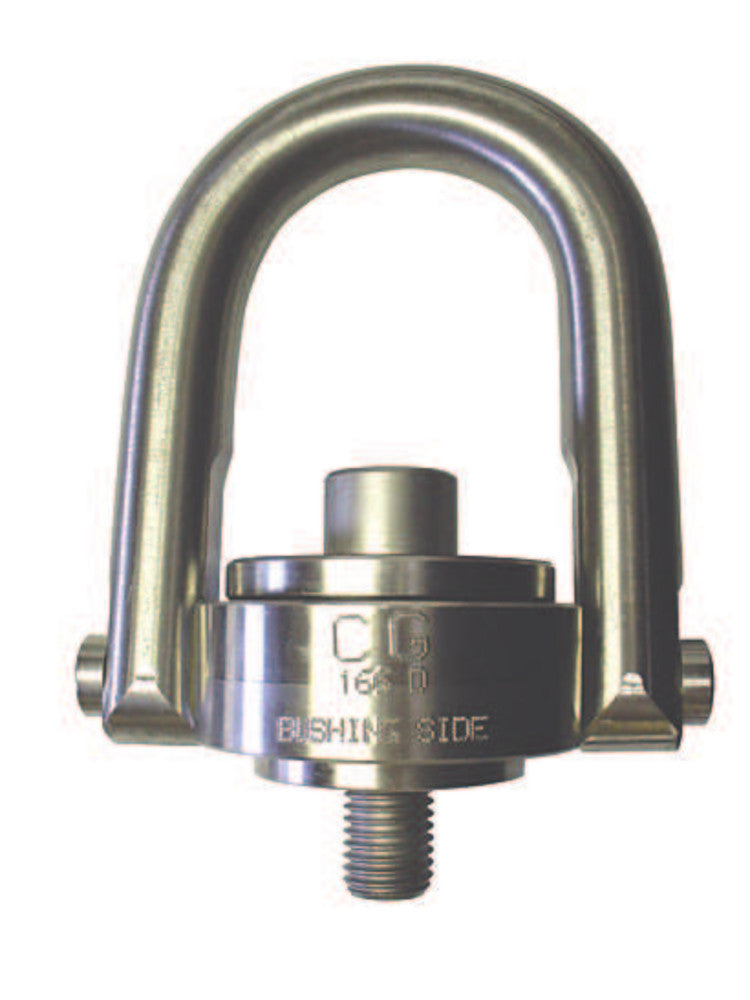

Crosby SS-125M Metric Thread Swivel Hoist Rings – M16 x 2.00

Product Description

Product Description:
Crosby SS-125M Swivel Hoist Rings are designed to provide a secure, adjustable lifting point for machinery, tooling, and fabricated components, offering full load alignment through rotation and pivoting. These lifting points are ideal for applications requiring safe lifting in multiple directions without side loading stress.
Constructed from high-quality stainless steel, the SS-125M series is specifically suited for corrosive, washdown, marine, and food-grade environments, where durability and resistance to rust are critical.

Material:
Body: 316 stainless steel
Bolt retainers: 15-7 PH stainless steel (magnetic)
Bolt: 316 stainless steel socket head cap screw (ASTM F837M)

Specifications:
Designed for metric threaded lifting applications (M-series threads)
360° swivel and 180° pivot action for full load alignment
Rated at 100% Working Load Limit at 90° angle
Working Load Limit range: approx. 200 kg to 22,300 kg (varies by size)
5:1 design factor (ultimate strength = 5× WLL)
Individually proof tested to 2× WLL with certification
Fatigue rated to 20,000 cycles at 1.5× WLL
Washer is color-coded (silver) for metric identification
Each unit marked with:
Product Identification Code (PIC)
Working Load Limit
Manufacturer identification

Uses:
Machinery and equipment lifting
Tooling, dies, and molds handling
Marine and offshore applications
Food processing and washdown environments
Industrial lifting points requiring corrosion resistance

Key Features:
Swivel design – Rotates 360° and pivots to align with load direction
Corrosion resistant – 316 stainless steel construction
Full-rated lifting – Maintains capacity at 90° loading angles
High durability – Designed for repeated lifting cycles
Proof tested – Certified for safe overhead lifting
Traceability – PIC code ensures material tracking
