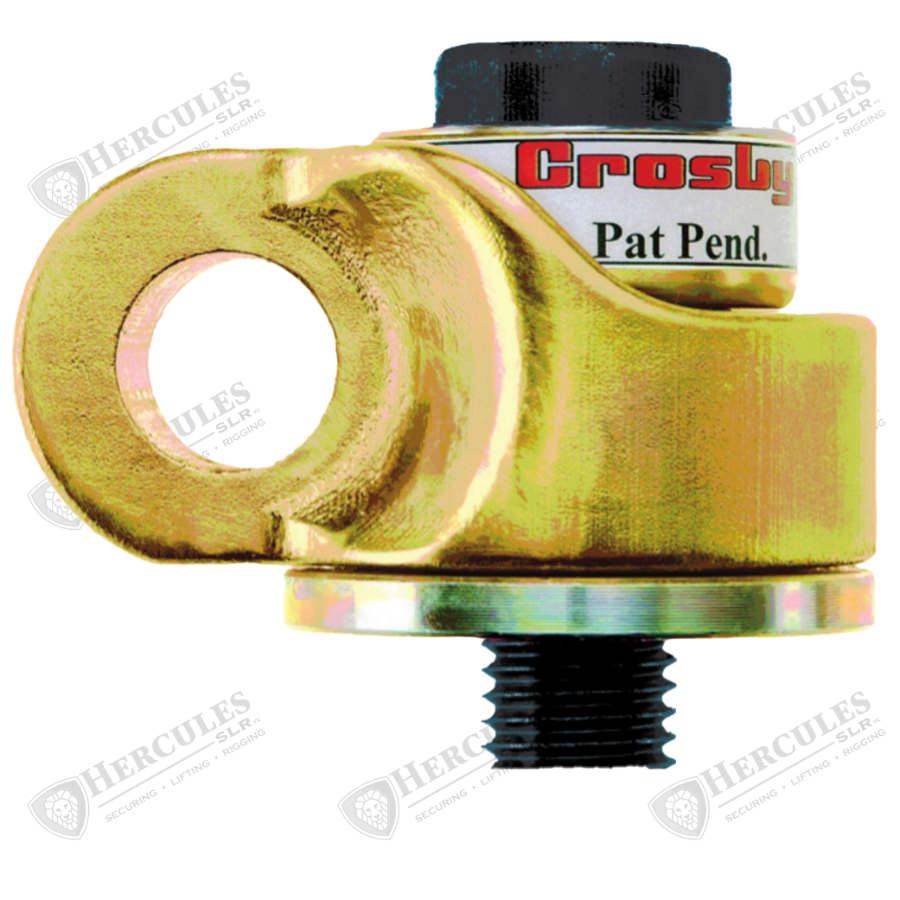

Crosby HR-1200M Metric Side Pull Hoist Rings – Bolt Size M30 x 3.5 x 120

Product Description

Product Description:
Crosby HR-1200M Metric Side Pull Hoist Rings are designed for safe, multi-directional lifting, specifically engineered to handle side loading applications. Unlike standard lifting points, these hoist rings allow the load to pivot and align during lifting, reducing stress and improving safety in angled lifting situations.
With a 360° swivel and 90° pivot, the HR-1200M ensures proper load orientation while maintaining full strength under side pull conditions, making it ideal for fabrication, machinery handling, and industrial lifting environments.

Material:
Body: Alloy steel (quenched and tempered)
Bolt: High-strength alloy socket head cap screw (metric)
Finish: Yellow chromate coating for corrosion resistance

Specifications:
Metric threaded design (M-series)
360° swivel and 90° pivot for side pull lifting
Rated at 100% Working Load Limit at 90° angle
Working Load Limit range: approx. 300 kg to 13,000 kg
5:1 design factor (ultimate strength = 5× WLL)
Individually proof tested to 2–2.5× WLL with certification
Fatigue rated for 20,000 cycles at 1.5× WLL
Each unit marked with:
Product Identification Code (PIC)
Working Load Limit
Manufacturer identification
Available in multiple bolt sizes and lengths (M8 to M48)

Uses:
Side pull lifting applications
Machinery and equipment handling
Fabrication and structural lifting
Industrial environments with angled or off-center lifting requirements

Key Features:
Side pull design – Engineered for angular lifting
Swivel functionality – 360° rotation with 90° pivot
High strength – Alloy steel construction
Corrosion resistant – Protective coating for durability
Proof tested – Certified for overhead lifting
Traceability – PIC marking for full identification
