Crosby

HR-1000 UNC Threads

HR-1000 UNC Threads

Part #1068038

$796.27 CAD
$796.27 CAD
Sale Low stock
Bolt Size
View full details

Product Description

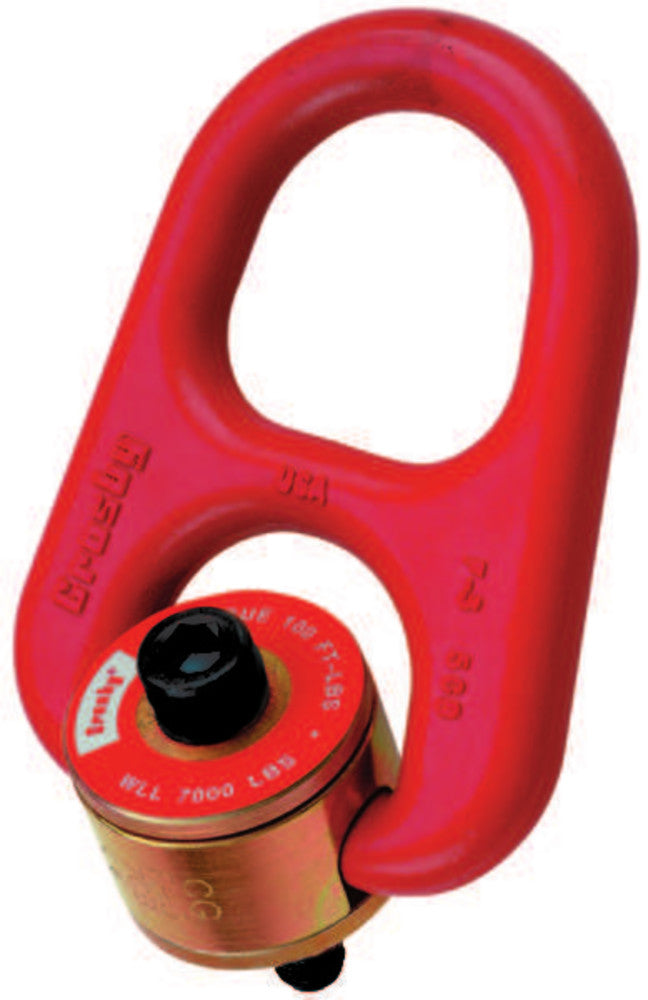

Crosby HR-1000 UNC Thread Swivel Hoist Rings are designed for heavy-duty lifting applications, providing a strong, adjustable lifting point that allows loads to rotate and align naturally during lifting.
These hoist rings feature a 360° swivel and 180° pivot, ensuring proper load alignment and significantly reducing side loading compared to traditional eye bolts. They are ideal for industrial lifting, fabrication, and machinery handling where flexibility and strength are critical.

Material:
Body: Alloy steel (quenched and tempered)
Bolt: High-strength alloy socket head cap screw (Grade 12.9 / ASTM A574)
Finish: Corrosion-resistant coating

Specifications:
UNC (imperial) threaded design
360° swivel and 180° pivot action for full load alignment
Rated at 100% Working Load Limit at 90° angle
Working Load Limit range: approx. 5,000 lb and higher depending on size
5:1 design factor (ultimate strength = 5× WLL)
Individually proof tested to 2–2.5× WLL with certification
Fatigue rated for 20,000 cycles at 1.5× WLL
Washer is color-coded (red) for UNC thread identification
Each unit marked with:
Product Identification Code (PIC)
Working Load Limit
Manufacturer identification

Uses:
Heavy machinery and equipment lifting
Fabrication and structural lifting
Industrial rigging applications
Applications requiring high-strength, multi-directional lifting

Key Features:
Heavy-duty design – Built for demanding lifting environments
Swivel functionality – 360° rotation and 180° pivot
Full-rated lifting – Maintains WLL at angular loads
Proof tested – Certified for overhead lifting
Fatigue resistant – Designed for repeated lifting cycles
Traceability – PIC marking ensures product identification

Frame Size No. Stock No. Working Load Limit (lb) Recommended Torque (ft-lb) Bolt Size / Thread Effective Thread Projection Length (in) Overall Height (in) Swivel Base Diameter (in) Bail Bend Radius (in) Bail Diameter (in) Overall Bail Width (in) Bail Opening Height (in) Weight Each (lb) Replacement Bolt Kit Stock No.
1 1068002 800 7 5/16-18 x 1.50 0.52 3.69 0.97 0.62 0.44 2.27 1.38 0.60 1078200
1 1068006 1,000 12 3/8-16 x 1.50 0.52 3.69 0.97 0.62 0.44 2.27 1.38 0.62 1078204
2 1068010 2,500 28 1/2-13 x 2.25 0.69 6.26 1.96 1.25 0.75 4.20 2.50 3.05 1078208
2 † 1068014 2,500 28 1/2-13 x 2.75 1.19 6.26 1.96 1.25 0.75 4.20 2.50 3.07 1078212
2 † 1068022 4,000 60 5/8-11 x 3.00 1.44 6.26 1.96 1.25 0.75 4.20 2.50 3.18 1078220
2 1068018 4,000 60 5/8-11 x 2.25 0.69 6.26 1.96 1.25 0.75 4.20 2.50 3.11 1078216
2 1068026 5,000 100 3/4-10 x 2.50 0.94 6.26 1.96 1.25 0.75 4.20 2.50 3.24 1078224
2 † 1068030 5,000 100 3/4-10 x 3.00 1.44 6.26 1.96 1.25 0.75 4.20 2.50 3.30 1078228
3 1068034 7,000* 100 3/4-10 x 3.00 0.85 8.66 2.96 1.63 1.00 6.25 3.25 10.09 1078232
3 † 1068038 7,000* 100 3/4-10 x 3.50 1.35 8.66 2.96 1.63 1.00 6.25 3.25 10.21 1078236
3 1068042 8,000 160 7/8-9 x 3.00 0.85 8.66 2.96 1.63 1.00 6.24 3.25 10.21 1078240
3 † 1068046 8,000 160 7/8-9 x 3.50 1.35 8.66 2.96 1.63 1.00 6.24 3.25 10.40 1078244
3 † 1068054 10,000 230 1-8 x 4.50 2.35 8.66 2.96 1.63 1.00 6.24 3.25 10.72 1078252
3 1068050 10,000 230 1-8 x 3.50 1.35 8.66 2.96 1.63 1.00 6.24 3.25 10.50 1078248
4 1068058 15,000 470 1-1/4-7 x 5.00 2.09 11.21 3.71 2.00 1.25 7.82 4.00 21.90 1078256
4 1068062 24,000 800 1-1/2-6 x 5.50 2.59 11.21 3.71 2.00 1.44 7.82 4.00 23.00 1078260

Series: Crosby HR-1000 Heavy Lift Swivel Hoist Rings with UNC Threads.

Construction: Forged bail with raised Crosby/CG identification and PIC material traceability markings. The forged bail provides increased toughness and a larger opening than a standard hoist-ring bail.

Identification: UNC-thread HR-1000 models use a red color-coded top washer. The Working Load Limit and recommended torque are permanently stamped into the washer.

Bolt Specification: UNC models use an alloy socket head cap screw manufactured to ASTM A574.

Proof Load: Individually proof tested to 2-1/2 times the Working Load Limit.

Design Factor: 5:1 unless otherwise marked.

*: 4.5:1 design factor when tested in a 90-degree orientation.

†: Long-bolt models are designed for use with soft-metal workpieces, such as aluminum.
