Crosby HR-1000 UNC Threads – Bolt Size 1-1/4 - 7 x 5.00

Product Description

Product Description:

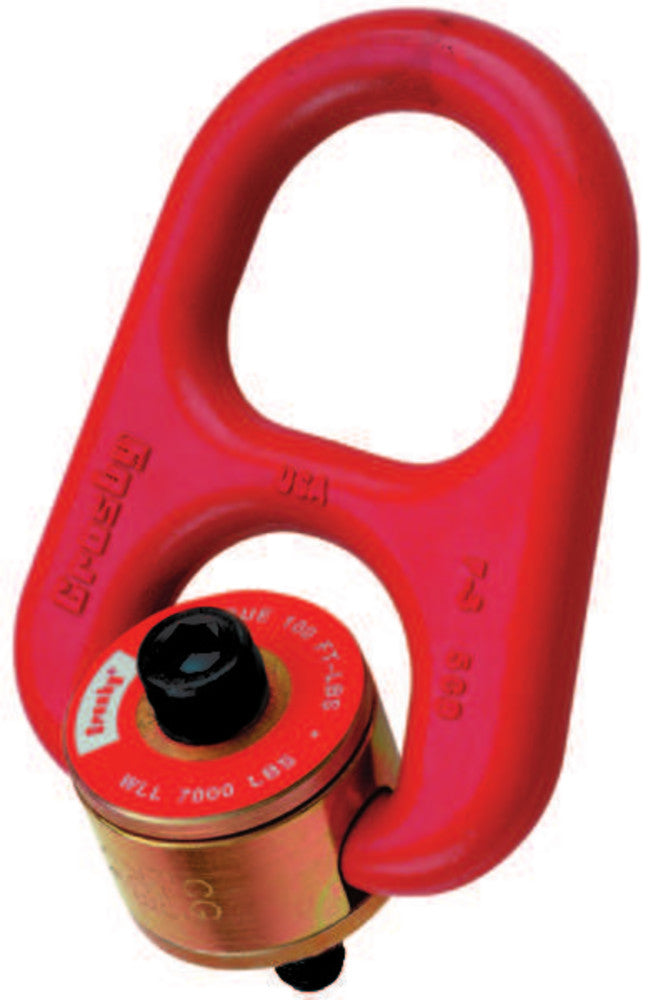

Crosby HR-1000 UNC Thread Swivel Hoist Rings are designed for heavy-duty lifting applications, providing a strong, adjustable lifting point that allows loads to rotate and align naturally during lifting.
These hoist rings feature a 360° swivel and 180° pivot, ensuring proper load alignment and significantly reducing side loading compared to traditional eye bolts. They are ideal for industrial lifting, fabrication, and machinery handling where flexibility and strength are critical.

Material:
Body: Alloy steel (quenched and tempered)
Bolt: High-strength alloy socket head cap screw (Grade 12.9 / ASTM A574)
Finish: Corrosion-resistant coating

Specifications:
UNC (imperial) threaded design
360° swivel and 180° pivot action for full load alignment
Rated at 100% Working Load Limit at 90° angle
Working Load Limit range: approx. 5,000 lb and higher depending on size
5:1 design factor (ultimate strength = 5× WLL)
Individually proof tested to 2–2.5× WLL with certification
Fatigue rated for 20,000 cycles at 1.5× WLL
Washer is color-coded (red) for UNC thread identification
Each unit marked with:
Product Identification Code (PIC)
Working Load Limit
Manufacturer identification

Uses:
Heavy machinery and equipment lifting
Fabrication and structural lifting
Industrial rigging applications
Applications requiring high-strength, multi-directional lifting

Key Features:
Heavy-duty design – Built for demanding lifting environments
Swivel functionality – 360° rotation and 180° pivot
Full-rated lifting – Maintains WLL at angular loads
Proof tested – Certified for overhead lifting
Fatigue resistant – Designed for repeated lifting cycles
Traceability – PIC marking ensures product identification
