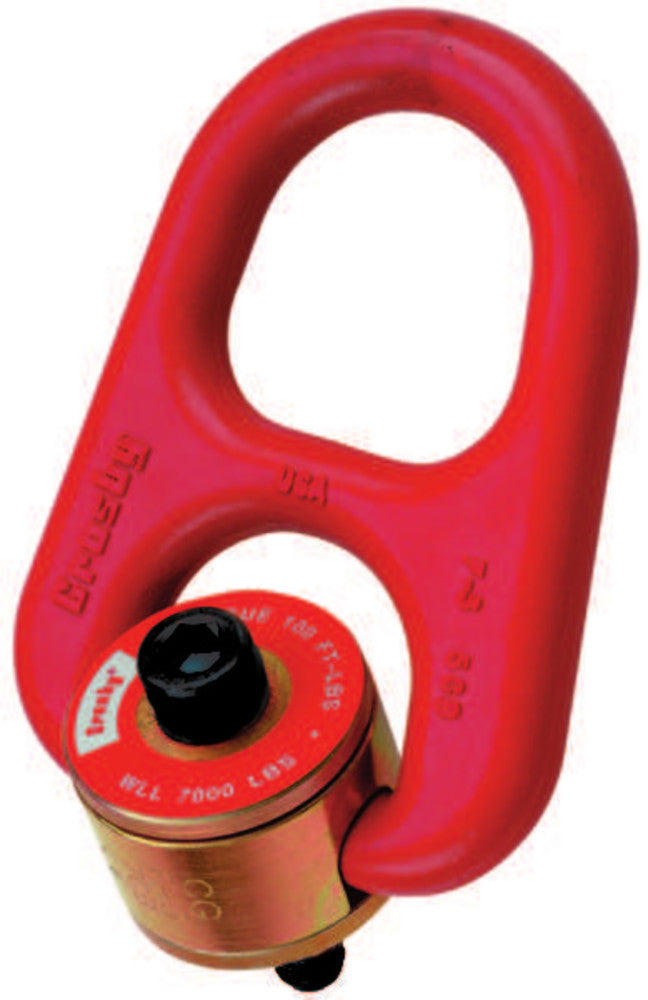

Crosby HR-1000M Metric Thread Swivel Hoist Rings are designed for heavy-duty lifting applications, providing a high-strength, adjustable lifting point that allows loads to rotate and align naturally during lifting operations.
Featuring a 360° swivel and 180° pivot, these hoist rings ensure proper load alignment and significantly reduce side loading compared to traditional lifting points. They are ideal for industrial lifting, fabrication, and machinery handling where flexibility and strength are critical.

Material:
Body: Alloy steel (quenched and tempered)
Bolt: High-strength metric alloy socket head cap screw (Grade 10.9 / 12.9)
Finish: Corrosion-resistant coating for durability

Specifications:
Metric threaded design (M-series)
360° swivel and 180° pivot for full load alignment
Rated at 100% Working Load Limit at 90° angle
Working Load Limit range: approx. 800 kg to 24,000 kg depending on size
5:1 design factor (ultimate strength = 5× WLL)
Individually proof tested to 2–2.5× WLL with certification
Fatigue rated for 20,000 cycles at 1.5× WLL
Each unit marked with:
Product Identification Code (PIC)
Working Load Limit
Manufacturer identification

Uses:
Heavy machinery and equipment lifting
Fabrication and structural lifting
Industrial rigging applications
Applications requiring high-capacity, multi-directional lifting

Key Features:
Heavy-duty design – Built for demanding lifting environments
Swivel functionality – 360° rotation and 180° pivot
Full-rated lifting – Maintains WLL at angular loads
Proof tested – Certified for overhead lifting
Fatigue resistant – Designed for repeated lifting cycles
Traceability – PIC marking ensures product identification

Frame Size No.	Stock No.	Working Load Limit at 5:1 Design Factor (kg)*	Working Load Limit at 4:1 Design Factor (kg)*	Bolt Size A	Effective Thread Projection Length B (mm)	Dimension C (mm)	Dimension D (mm)	Radius E (mm)	Dimension F (mm)	Dimension G (mm)	Dimension H (mm)
1	1068307	400	500	M8 × 1.25 × 40	15.2	93.7	24.6	15.7	11.2	57.7	35.1
1	1068316	450	550	M10 × 1.50 × 40	15.2	93.7	24.6	15.7	11.2	57.7	35.1
2	1068325	1050	1300	M12 × 1.75 × 55	15.5	162	49.8	31.8	19.1	107	63.5
2	1068334	1900	2400	M16 × 2.00 × 65	25.5	162	49.8	31.8	19.1	107	63.5
2	1068343	2150	2700	M20 × 2.50 × 70	30.5	162	49.8	31.8	19.1	107	63.5
3	1068352	3000	3750	M20 × 2.50 × 80	25.4	220	75.2	41.4	25.4	159	82.6
3	1068361	4200	5250	M24 × 3.00 × 90	35.4	220	75.2	41.4	25.4	159	82.6
4	1068370	7000	8750	M30 × 3.50 × 140	66.2	285	94.2	50.8	31.8	199	102
4	1068389	11000	13750	M36 × 4.00 × 130	56.2	285	94.2	50.8	31.8	199	102

Series: HR-1000M Metric Threads

* Proof Load: Individually proof loaded to 2-1/2 times the Working Load Limit based on the 4:1 Design Factor.

Specification	Value
Thread Type	Metric
Material Specification	Bolt: ISO 4762, Grade 12.9 Alloy Socket Head Cap Screw
Thread Diameter	8 mm
Installation Torque	10N-m
Pivot Angle	180 deg
Swivel Angle	360 deg
Thread Size	M8 x 1.25
Load Capacity	400 kg
Specifications	Bolt specification A: M8 x 1.25 x 40 mm; effective thread projection B: 15.2 mm; dual WLL: 400 kg at 5:1 design factor / 500 kg at 4:1 design factor; individually proof tested to 2.5 times the 4:1-design-factor WLL; dual ratings as listed above
Series	HR-1000M
Type	Heavy Lift Hoist Ring
Dimensions	Drawing dimensions (mm): B = 15.2; C = 93.7; D = 24.6; E = 15.7; F = 11.2; G = 57.7; H = 35.1
