Crosby

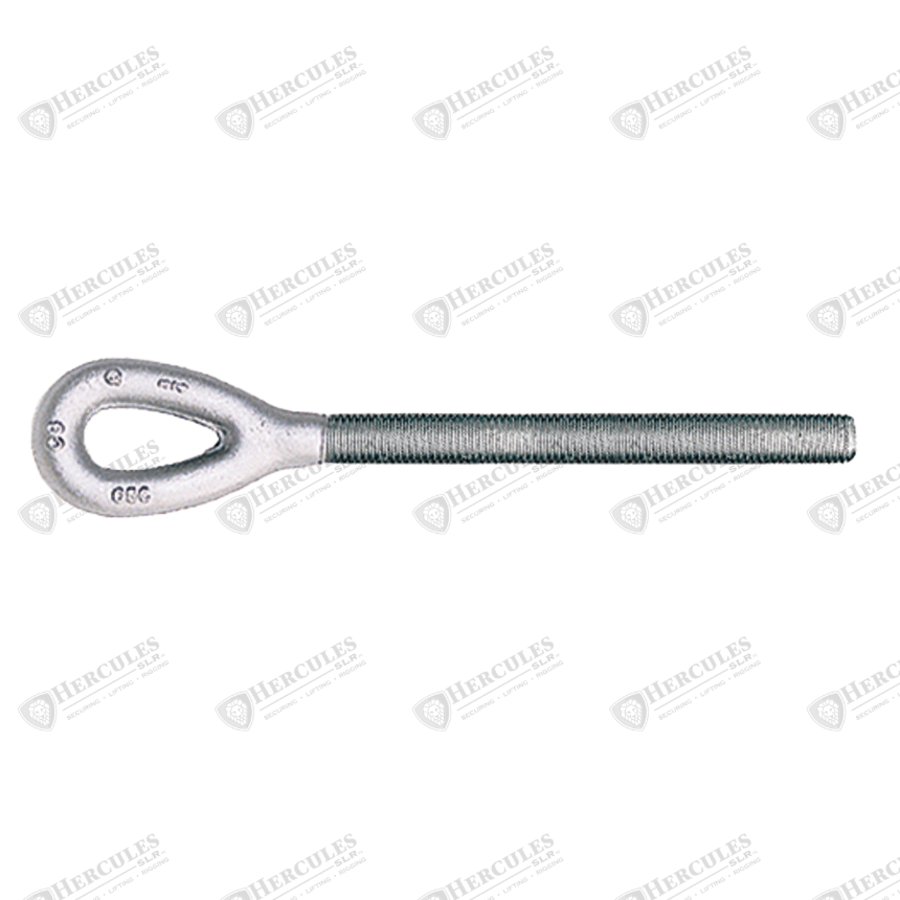

HG-4037 Eye End Fittings

HG-4037 Eye End Fittings

Part #1072190

$1,384.50 CAD
$1,384.50 CAD
Sale Low stock
Eye Direction
Shank Diameter & Take Up
View full details

Product Description

Crosby HG-4037 Eye End Fittings are threaded turnbuckle components designed for adjustable tensioning and rigging systems requiring an eye-style connection point. The series is available with both left-hand and right-hand threads, allowing compatible end fittings to be paired with Crosby turnbuckle bodies to create complete adjustable assemblies for a wide range of industrial and rigging applications.

The fittings are manufactured from steel that is quenched and tempered or normalized and feature a galvanized finish for corrosion protection. Modified UNJ threads provide improved fatigue properties, and the HG-4037 Eye End Fitting series is fatigue rated for demanding service conditions.

The forged eye is elongated by design to simplify attachment within a rigging system while helping minimize stress in the eye. On turnbuckle sizes from 1/4 through 2-1/2 in, the eye is designed so a shackle one size smaller can be reeved through the opening. Separate left-hand and right-hand threaded versions allow the fittings to be matched to the required turnbuckle body and installation configuration.

Material:
Steel
Quenched and tempered or normalized
Galvanized finish
Forged elongated eye construction

Compatible With:
Compatible Crosby turnbuckle bodies
Turnbuckle assemblies requiring HG-4037 eye end fittings
Matching left-hand and right-hand threaded components
Compatible shackles and rigging connection hardware
Properly matched rigging systems within the fitting’s Working Load Limit

Uses:
Turnbuckle assembly and replacement
Tensioning wire rope and cable systems
Guy wire and structural tensioning
Industrial rigging applications
Marine and outdoor tensioning systems
Connecting turnbuckles to compatible shackles and attachment points

Key Features:
Available with left-hand and right-hand threads
Forged elongated eye design
Designed to facilitate attachment and minimize stress in the eye
Quenched and tempered or normalized construction
Galvanized for corrosion resistance
Modified UNJ thread for improved fatigue properties
Fatigue rated
Accommodates a shackle one size smaller on applicable 1/4 through 2-1/2 in turnbuckle sizes
Multiple shank diameter and take-up configurations available

Shank Diameter & Take-Up (in) RH Eye Stock No. LH Eye Stock No. Working Load Limit (lb) Weight Each (lb) Shank Diameter (in) Threaded Shank Length (in) Inside Eye Length (in) Inside Eye Width (in) Eye Section Diameter (in) Outside Eye Width (in) Overall Length (in)
* 5/16 x 4-1/2 1071075 1071690 800 0.13 0.31 3.00 0.95 0.44 0.28 1.00 4.99
* 3/8 x 6 1071093 1071716 1,200 0.23 0.38 3.88 1.13 0.53 0.34 1.21 6.12
1/2 x 6 1071119 1071734 2,200 0.51 0.50 4.19 1.41 0.71 0.44 1.59 7.41
1/2 x 9 1071137 1071752 2,200 0.59 0.50 5.69 1.41 0.71 0.44 1.59 8.91
1/2 x 12 1071155 1071770 2,200 0.68 0.50 7.19 1.41 0.71 0.44 1.59 10.41
5/8 x 6 1071173 1071798 3,500 0.82 0.63 4.44 1.80 0.88 0.50 1.88 8.36
5/8 x 9 1071191 1071814 3,500 0.95 0.63 5.94 1.80 0.88 0.50 1.88 9.86
5/8 x 12 1071217 1071832 3,500 1.08 0.63 7.44 1.80 0.88 0.50 1.88 11.36
3/4 x 6 1071235 1071850 5,200 1.36 0.75 4.56 2.09 1.00 0.63 2.26 9.25
3/4 x 9 1071253 1071878 5,200 1.55 0.75 6.06 2.09 1.00 0.63 2.26 10.75
3/4 x 12 1071271 1071896 5,200 1.73 0.75 7.56 2.09 1.00 0.63 2.26 12.25
3/4 x 18 1071299 1071912 5,200 2.10 0.75 10.56 2.09 1.00 0.63 2.26 15.25
7/8 x 12 1071315 1071930 7,200 2.61 0.88 7.81 2.38 1.25 0.75 2.75 13.10
7/8 x 18 1071333 1071958 7,200 3.12 0.88 10.81 2.38 1.25 0.75 2.75 16.10
1 x 6 1071351 1071976 10,000 3.15 1.00 5.06 3.00 1.43 0.88 3.19 11.00
1 x 12 1071379 1071994 10,000 3.81 1.00 8.06 3.00 1.43 0.88 3.19 14.00
1 x 18 1071397 1072010 10,000 4.48 1.00 11.06 3.00 1.43 0.88 3.19 17.00
1 x 24 1071413 1072038 10,000 5.15 1.00 14.06 3.00 1.43 0.88 3.19 20.00
1-1/4 x 12 1071431 1072056 15,200 7.07 1.25 8.38 3.59 1.82 1.12 4.06 16.19
1-1/4 x 18 1071459 1072074 15,200 8.12 1.25 11.38 3.59 1.82 1.12 4.06 19.19
1-1/4 x 24 1071477 1072092 15,200 9.16 1.25 14.38 3.59 1.82 1.12 4.06 22.19
1-1/2 x 12 1071495 1072118 21,400 10.3 1.50 8.75 4.09 2.12 1.25 4.62 17.37
1-1/2 x 18 1071510 1072136 21,400 11.8 1.50 11.75 4.09 2.12 1.25 4.62 20.37
1-1/2 x 24 1071538 1072154 21,400 13.3 1.50 14.75 4.09 2.12 1.25 4.62 23.37
1-3/4 x 18 1071574 1072190 28,000 17.5 1.75 12.16 4.65 2.38 1.50 5.38 21.19
1-3/4 x 24 1071592 1072216 28,000 19.5 1.75 15.16 4.65 2.38 1.50 5.38 24.19
2 x 24 1071618 1072234 37,000 28.9 2.00 15.59 5.81 2.69 1.75 6.19 27.59
2-1/2 x 24 1071636 1072252 60,000 46.4 2.50 17.56 6.50 3.12 2.00 7.12 29.59
2-3/4 x 24 1071654 1072270 75,000 60.2 2.75 17.69 7.00 3.25 2.25 7.75 30.92

Series: Crosby HG-4037 Eye End Fittings.

Material: Quenched & tempered or normalized steel.

Finish: Hot-dip galvanized steel unless marked with an asterisk (*).

Eye Design: Turnbuckle eyes are forged elongated to maximize ease of attachment and minimize stress in the eye. For turnbuckle sizes 1/4 in through 2-1/2 in, a shackle one size smaller can be reeved through the eye.

Threads: Modified UNJ thread for improved fatigue properties.

Fatigue Rating: Fatigue rated.

*: Mechanically galvanized.
