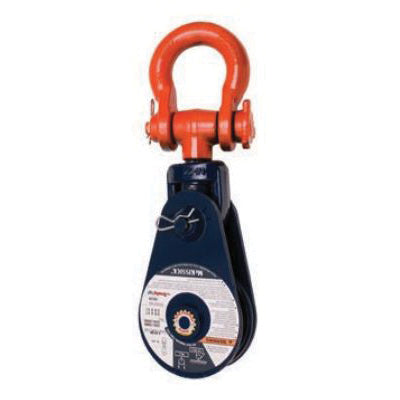

McKissick 419 Light Champion Snatch Block - Wire Rope - 5/16 to 3/8 in - 2 Ton - 3 in

Product Description

The McKissick 419 Light Champion Snatch Block is a compact, light-duty single-sheave block designed for wire rope cable applications requiring reliable load redirection and mechanical advantage in general industrial, agricultural, construction, and light rigging environments. Rated for a 2-ton working load limit, this block is built around a 3-inch outside diameter sheave supported by a self-lubricating bronze bushing bearing, providing dependable sheave rotation and good resistance to corrosion and contamination under field conditions. The 419 series in this configuration accommodates wire rope cable from 5/16 to 3/8 inch in diameter.

The self-lubricating bronze bushing bearing eliminates the need for frequent greasing while providing consistent sheave rotation under load. Bronze bushing construction is well regarded for its corrosion resistance and durability in environments where exposure to moisture, dirt, and debris is common, making it a practical choice for outdoor and agricultural applications where maintenance access may be limited. The compact 3-inch sheave diameter and 2-ton capacity make this block easy to handle and well suited for lighter-duty rigging tasks where a small, portable snatch block is required.

The snatch block configuration features a side-opening cheek plate that allows the wire rope to be inserted without threading the rope end through the block, reducing rigging time and improving setup efficiency in the field. The Light Champion designation reflects McKissick's design approach of delivering reliable performance in a manageable, field-friendly package. This block is well suited for use with small wire rope winches, come-alongs, and light rigging systems in construction, agriculture, marine, and general utility applications.

Material:

Steel (body and cheek plates) Self-lubricating bronze bushing bearing

Compatible With:

Wire rope cable, 5/16 to 3/8 in diameter

Uses:

Load redirection in light-duty wire rope rigging systems Mechanical advantage in light pulling and lifting applications Small winch and come-along line deflection Construction, agriculture, marine, and general utility rigging

Key Features:

2 Ton working load limit 3 in sheave outside diameter Self-lubricating bronze bushing bearing for corrosion-resistant, low-maintenance operation Accommodates 5/16 to 3/8 in wire rope cable Side-opening design for fast rope insertion without threading Compact and portable for light-duty field use McKissick 419 Light Champion series
