Name: G-400 Eye Nuts
Brand: Crosby
SKU: 1090438
Price: 25.03 CAD
Availability: InStock

Product Description

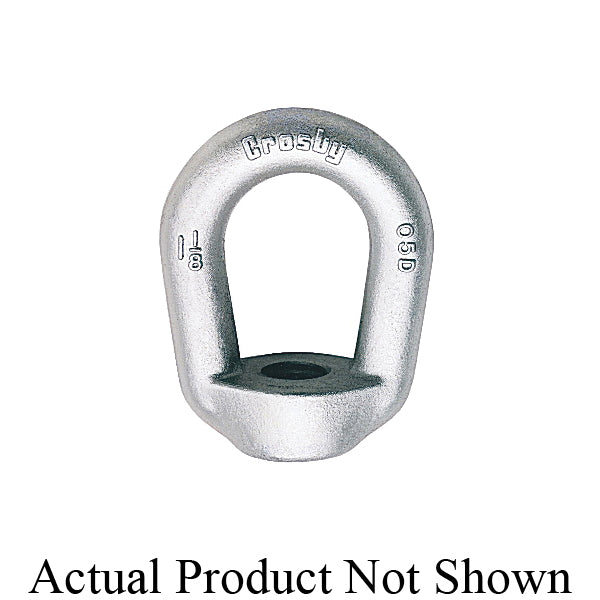

Crosby G-400 Eye Nuts are heavy-duty forged lifting attachments designed to provide a secure lifting point when used with threaded rods or bolts. Built for reliability, these eye nuts are commonly used in rigging, lifting, and material handling applications where strong, in-line lifting connections are required.
Manufactured from quenched and tempered forged steel, they offer excellent strength and durability, while the hot-dip galvanized finish provides corrosion resistance for long-term use in industrial environments.

Material:
Forged steel (quenched and tempered)
Hot-dip galvanized finish for corrosion resistance

Specifications:
UNC (imperial) threaded design
Tapped with standard UNC Class 2 threads after galvanizing
Working Load Limit range: approx. 520 lb to 40,000 lb depending on size
5:1 design factor (ultimate strength = 5× WLL)
Designed primarily for in-line (vertical) lifting applications
Meets or exceeds ASME B30.26 requirements
Available sizes: approx. 1/4" through 2" thread sizes
Each unit marked with identification and load rating

Uses:
Rigging and lifting with threaded rods or bolts
Material handling and industrial lifting
Construction and fabrication applications
Permanent or semi-permanent lifting points

Key Features:
High strength – Forged alloy steel construction
Corrosion resistant – Hot-dip galvanized finish
Standard threading – UNC Class 2 for compatibility
Wide range – Multiple sizes and load ratings available
Certified – Meets ASME B30.26 lifting standards
Reliable – Designed for consistent in-line lifting

Size No.	Stock Size (in)	Stock No.	Standard Tap Size (in)	Working Load Limit (lb)	Weight Each (lb)	Eye Outside Width (in)	Eye Inside Width (in)	Eye Inside Height (in)	Base Width (in)	Bearing Face Width (in)	Base Diameter / Depth (in)	Eye Body Height (in)	Base Height (in)	Overall Height (in)	Eye / Body Thickness (in)
1	0.25	1090438	1/4	520	0.09	1.25	0.75	1.00	0.75	0.50	0.69	0.63	0.38	1.72	0.31
2	0.31	1090474	3/8	1,250	0.17	1.62	1.00	1.20	0.83	0.56	0.81	0.89	0.50	2.09	0.41
3A	0.38	1090517	1/2	2,250	0.28	2.00	1.25	1.44	1.08	0.81	1.00	1.09	0.62	2.55	0.50
4	0.50	1090535	5/8	3,600	0.60	2.50	1.50	1.92	1.35	1.00	1.31	1.31	0.69	3.25	0.69
5	0.63	1090553	3/4	5,200	1.00	3.00	1.75	2.38	1.59	1.12	1.50	1.57	0.88	3.89	0.84
6	0.75	1090571	7/8	7,200	1.65	3.50	2.00	2.63	1.96	1.38	1.88	1.77	0.94	4.32	1.00
7	0.88	1090599	1	10,000	2.69	4.00	2.25	3.06	2.21	1.56	2.13	2.02	1.07	5.01	1.19
8	1.00	1090633	1-1/4	15,500	4.38	4.50	2.50	3.50	2.46	1.88	2.38	2.27	1.25	5.78	1.38
9	1.13	1090651	1-3/8	18,500	5.00	5.00	2.75	4.00	2.69	2.00	2.56	2.53	1.38	6.51	1.50
10	1.25	1090679	1-1/2	22,500	6.78	5.62	3.12	4.31	3.09	2.25	3.00	2.82	1.50	7.06	1.66
11	1.50	1090697	2	40,000	14.60	7.12	4.10	6.20	4.09	3.13	3.75	3.68	2.06	9.91	1.94

Design Factor: 5:1

Load Rating: Working Load Limit shown is for in-line pull and is based on the standard tap size.

Specification	Value
Thread Type	UNC, Class 2
Inner Length	1.00 in
Inner Width	0.75 in
Eye Inside Diameter	3/4in
Overall Width	1.25 in
Overall Height	1.72 in
Thread Diameter	1/4 in
Thread Size	1/4in
Specifications	5:1 design factor. WLL is for in-line pull and the published standard tap size. Threads tapped after galvanizing.
Series	G-400
Working Load Limit	520 lb (in-line pull)
Weight	0.09 lb
Type	Eye nut
Stock Size	0.25 in
Std. Tap Size	1/4 in
Size No.	1
Material	Forged steel, quenched and tempered
Industry Standard	ASME B30.26
Finish	Hot-dip galvanized
Dimensions	Drawing dimensions (in): A = 1.25; C = 0.75; D = 1.00; E = 0.75; F = 0.50; J = 0.69; K = 0.63; N = 0.38; T = 1.72; W = 0.31
