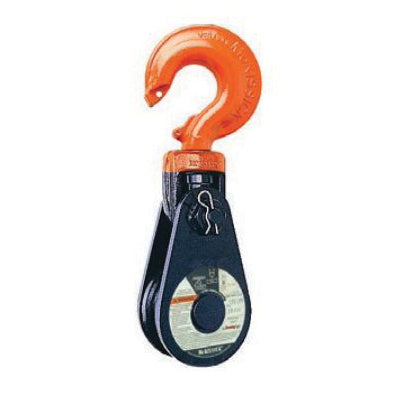

McKissick 430 Super Champion Snatch Block - 1-1/8 in - 20 Ton - 12 in - Roller Bearing

Product Description

The McKissick 430 Super Champion Snatch Block is a heavy-duty, high-capacity snatch block engineered for demanding crane, rigging, and wire rope deflection applications in industrial, construction, oilfield, and marine environments. Built to handle a 20 Ton working load, the 430 Super Champion series is designed for applications where maximum strength, durability, and reliable performance under sustained load are required. The roller bearing sheave provides smooth, low-friction rope travel, reducing wear on both the wire rope and the sheave groove during high-cycle and heavy-load operations.

Featuring a 12 in sheave outside diameter and a maximum cable capacity of 1-1/8 in wire rope, this snatch block is sized for heavy-duty single and multi-part line rigging configurations. The large sheave diameter maintains a favorable rope-to-sheave diameter ratio, which is critical for preserving wire rope integrity and maximizing rope service life under repeated bending cycles. The snatch block design allows the wire rope to be inserted laterally without threading, enabling fast and efficient rigging changes in the field without disconnecting the rope end.

The McKissick 430 Super Champion series is a well-established product line recognized in the crane and rigging industry for its robust construction and high working load ratings. These blocks are commonly used in construction crane rigging, oilfield operations, marine deck rigging, and heavy industrial lifting where a reliable, high-capacity wire rope deflection point is required. The roller bearing sheave ensures consistent performance across a wide range of load conditions and operating environments.

Material: Steel construction (confirm specific alloy and finish with McKissick datasheet)

Compatible With: 1-1/8 in maximum wire rope Standard crane hooks, shackles, and rigging hardware rated for 20 Ton or greater

Uses: Heavy-duty crane and rigging operations Wire rope deflection and load redirection Oilfield, construction, and marine hoisting Multi-part line rigging configurations High-cycle industrial lifting applications

Key Features: 20 Ton working load limit 12 in sheave outside diameter 1-1/8 in maximum wire rope capacity Roller bearing sheave for smooth, low-friction rope travel Snatch block design for lateral rope insertion without threading 430 Super Champion series heavy-duty construction

Note: Confirm shell material, finish, hook or shackle attachment type, and WLL certification markings with the McKissick 430 Super Champion product datasheet or authorized distributor prior to specification.
