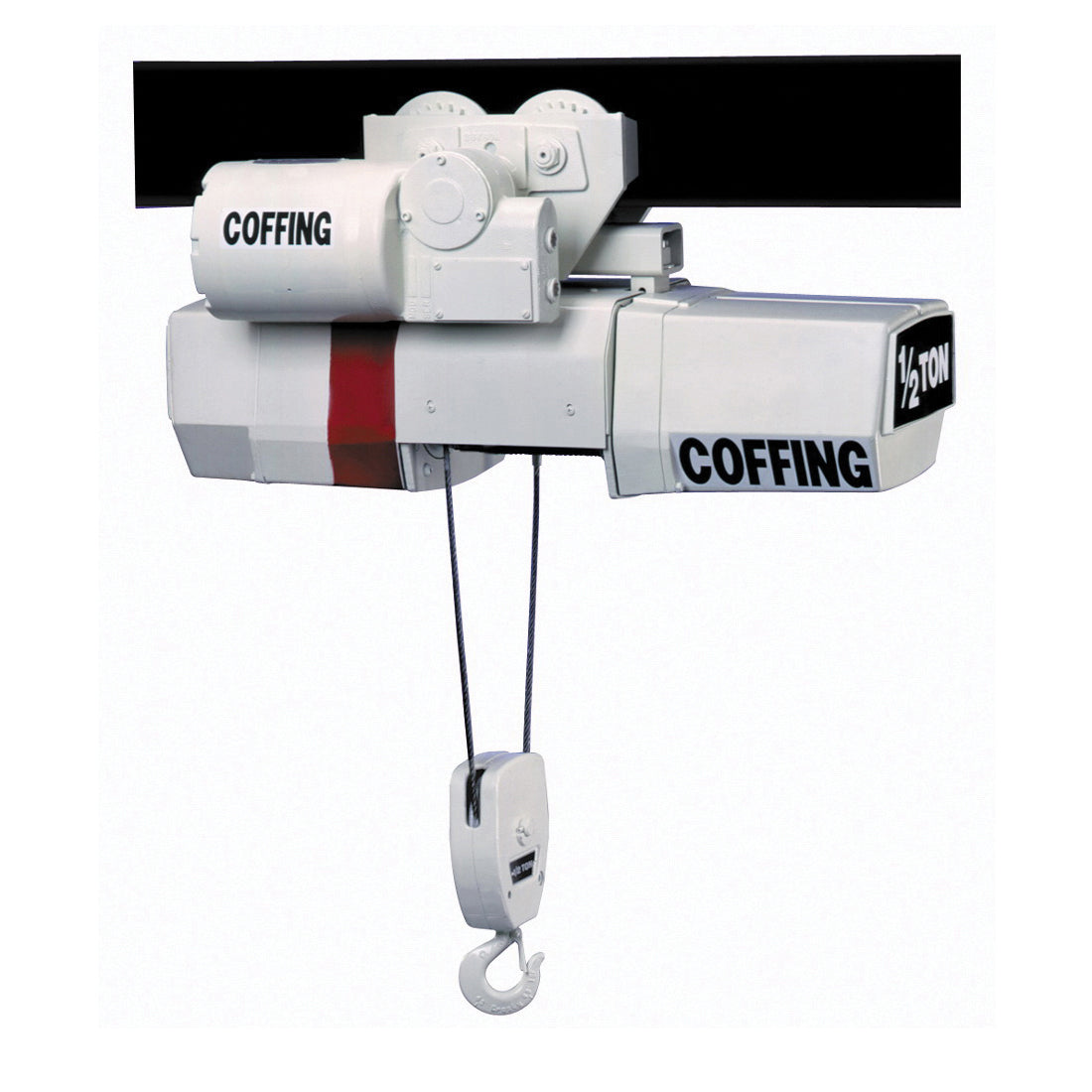

Coffing WRT Series Electric Wire Rope Hoist - 0.5 Ton Single Reeving Small Frame 25 ft Lift 16 FPM

Product Description

The Coffing WRT Series Electric Wire Rope Hoist is designed for powered lifting, lowering and controlled load positioning in manufacturing, maintenance and industrial material-handling applications. These single-reeved small-frame models are available in 0.5 Ton and 1 Ton capacities with lifting heights ranging from 15 to 50 ft.

The listed configurations use 1/4 in wire rope and one-speed control for consistent vertical load movement. Standard models operate at 16 FPM, while selected 0.5 Ton configurations provide 21 or 32 FPM lifting speeds for applications requiring faster material movement.

An AC disc-type braking system provides controlled stopping and dependable load holding. The compact small-frame design supports installation where available space is limited, while the extended lifting-height options make the WRT Series suitable for production facilities, maintenance areas and other overhead lifting systems requiring longer hook travel.

Material:
Steel wire rope
Metal hoist frame and housing
Machined metal rope drum
Steel drive components
Forged steel hook assemblies

Compatible With:
Properly rated overhead supporting structures
Approved fixed suspension systems
Compatible trolley-mounted installations
Electrical service matching the selected model
Manufacturer-approved wire rope and replacement components

Uses:
Manufacturing and production lifting
Assembly and fabrication operations
Equipment installation and maintenance
Warehouse material handling
Workstation load positioning
Long-lift material handling
Repetitive lifting and lowering

Key Features:
0.5 Ton and 1 Ton capacity options
Single-reeved wire-rope construction
Compact small-frame design
15, 25, 35 and 50 ft Lift options
16, 21 and 32 FPM lifting speeds
One-speed control
AC disc-type braking system
1/4 in wire rope
