Chester Swivel-Truck Precision-Bearing Manual Geared Trolley - 1 Ton, 3 to 4-5/8 in Beam Flange

Product Description

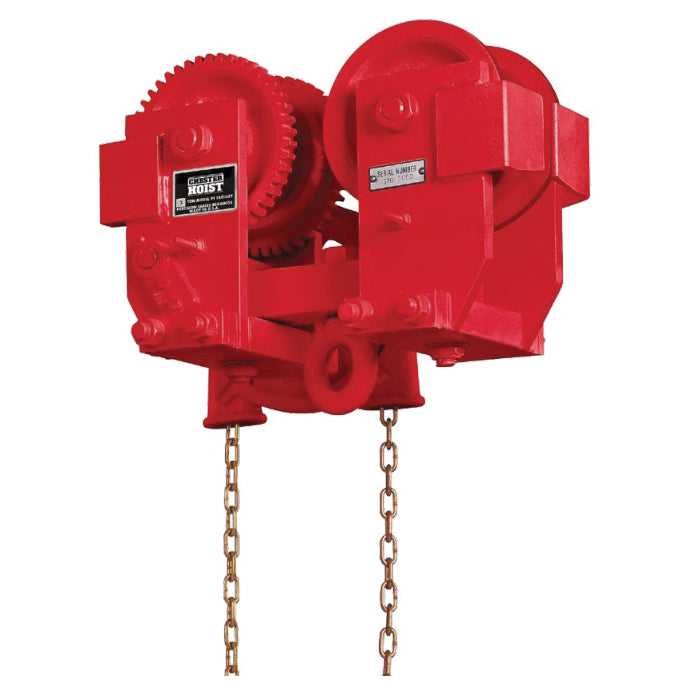

Chester swivel-truck precision-bearing manual geared trolleys provide controlled horizontal travel for compatible hoists and suspended loads operating on overhead runway beams. The listed configurations cover capacities from 1/4 to 6 Ton and are sized for specific beam flange widths, beam heights, curve radii, and trolley-wheel dimensions. Manual geared operation is suitable for applications where the operator requires more accurate load positioning and lower travel effort than a conventional plain push trolley can provide.

The hand-operated geared travel mechanism transfers movement to the trolley wheels, allowing the suspended hoist and load to be moved gradually in either direction without an electric or pneumatic traverse motor. The swivel-truck design allows the wheel assemblies to align with the runway as the trolley travels, supporting operation on compatible curved beams. Precision-bearing wheel assemblies promote smoother rolling and help reduce the effort required to move properly supported loads.

The 1/4 and 1/2 Ton models fit beam flanges from 2-5/8 to 4-5/8 in, accommodate a 4 in beam height, have a 9-7/8 in minimum-radius curve, and use a 4 in wheel-tread diameter. The 1 Ton model fits 3 to 4-5/8 in flanges with a 5 in beam height, 9-7/8 in minimum-radius curve, and 5 in wheel-tread diameter. The 1-1/2 and 2 Ton models fit 3-5/8 to 5-1/2 in flanges with a 6 in beam height, 19-1/2 in minimum-radius curve, and 6 in wheel-tread diameter. The 3 and 4 Ton models fit 4 to 7 in flanges with an 8 in beam height, 15-3/8 in minimum-radius curve, and 8 in wheel-tread diameter. The 5 and 6 Ton models fit 4-5/8 to 8 in flanges with a 10 in beam height, 33-7/8 in minimum-radius curve, and 9 in wheel-tread diameter.

Material:
Manufacturer frame and side-plate material not confirmed
Manufacturer trolley-wheel material not confirmed
Precision bearing assemblies
Geared travel mechanism
Manual operating hand chain

Compatible With:
Hoists using a suspension connection compatible with the selected trolley
Overhead beams within the specified flange-width range
Beams matching the specified beam height
Straight or curved runway beams meeting the model-specific minimum-radius requirement
Capacity-matched suspension and mounting components

Uses:
Providing controlled horizontal travel for suspended hoists
Positioning loads along overhead runway beams
Moving loads through compatible curved runway sections
Industrial maintenance and equipment installation
Fabrication and assembly operations
Production and manufacturing applications
Heavy material handling without powered trolley travel

Key Features:
Manual hand-chain geared operation
Swivel-truck wheel arrangement
Precision-bearing wheel assemblies
Available in capacities from 1/4 to 6 Ton
Capacity-specific beam-flange compatibility
Model-specific beam-height requirements
Suitable for compatible straight and curved beams
Wheel-tread diameters from 4 to 9 in
Controlled forward and reverse load positioning
No electric or pneumatic trolley motor required
